Article No. 8078
FASERFIX KS 100, class B 125
Mesh grating MS 30/30 mm, galvanised, 0.5 m

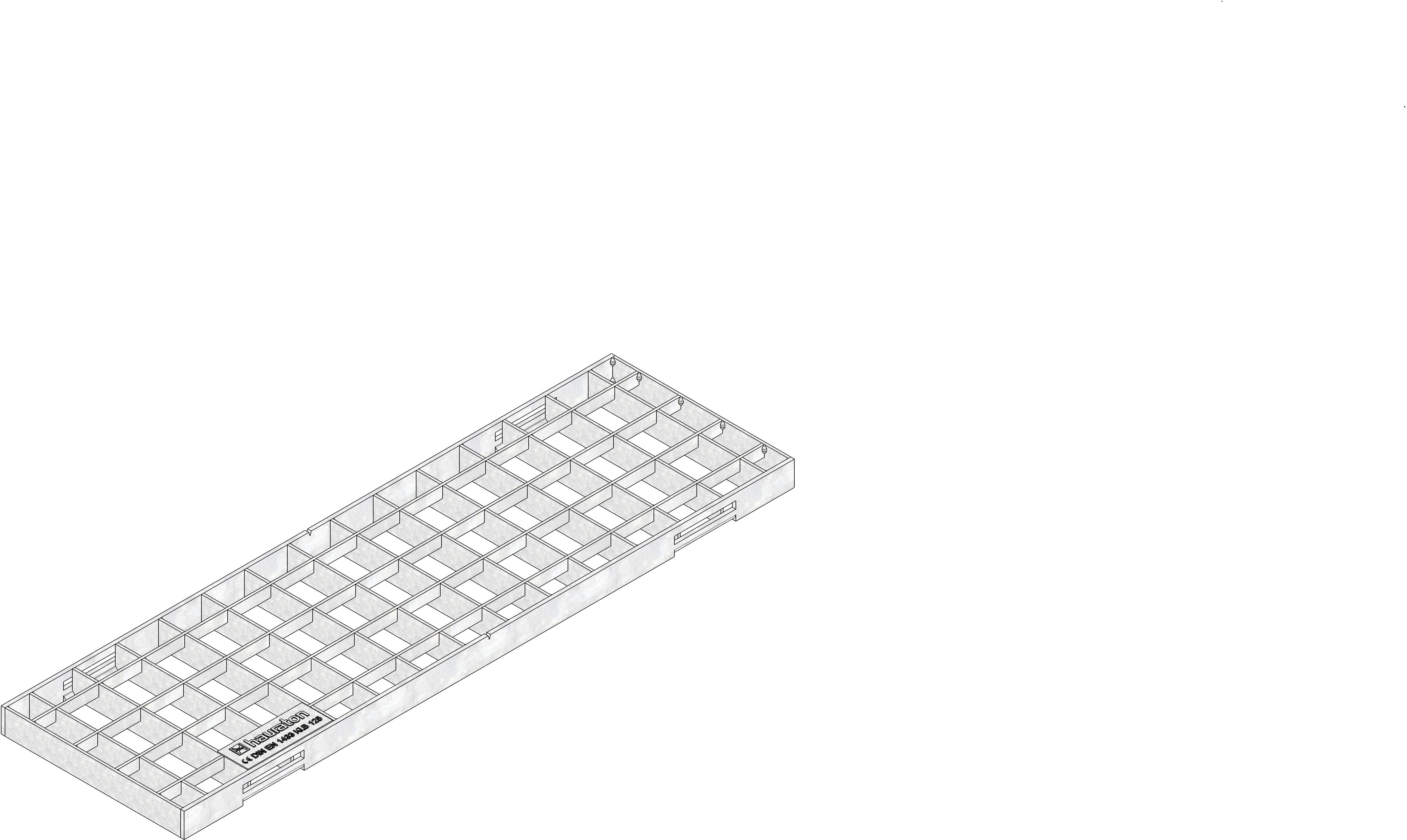

Product image
Top view
Technical drawing
Drawings
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
8078
Length
500 mm
Width
149 mm
Height
21 mm
Weight
1.50 kg
Nominal width | System size
100
Inlet cross-section
1230 cm²/m
Grating inlay depth
20 mm
Grating design
Mesh grating
Grating opening type
Mesh width
Inlet opening
30 mm
Fixing type
Locking handle, SIDE-LOCK
Material of grating
hot-dip galvanised steel
Regulations
DIN 1433, DIN 19580
Sales text
Mesh grating MS 30/30 mm, galvanised, cl. B 125, FASERFIX KS 100, 0.5 m
Product description
FASERFIX KS 100 - Mesh grating MS 30/30 mm, galvanised, load class A 15 - B 125 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 8078
Brochure text
Mesh grating MS 30/30 mm, galvanised, 0.5 m
Packaging unit
400 PAL
Declaration of Performance
