Article No. 8869
FASERFIX KS 100, class D 400
Longitudinal ductile iron grating, bar distance 9 mm, KTL-coated, 0.5 m

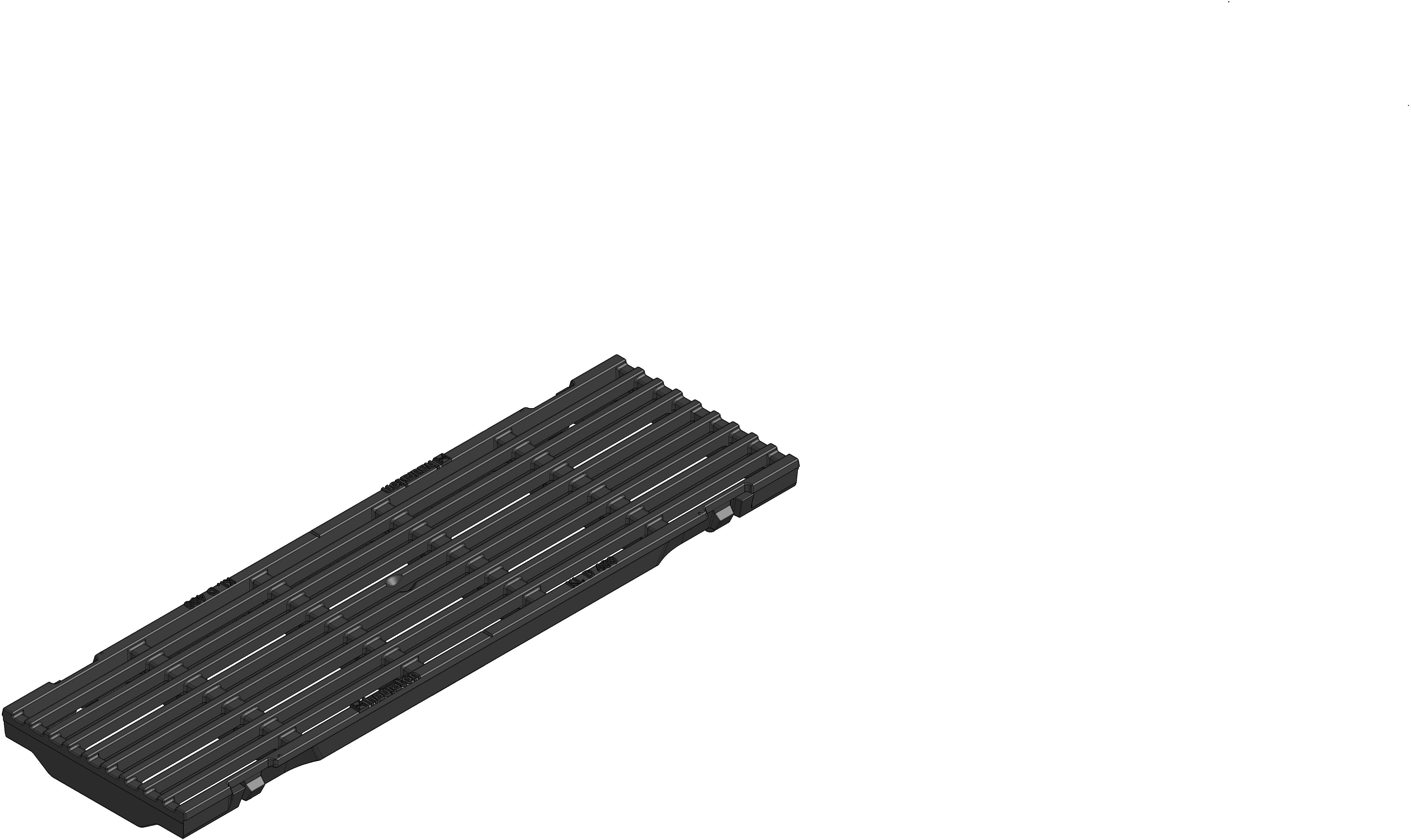

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
8869
Length
500 mm
Width
149 mm
Height
32 mm
Inlay depth
20 mm
Weight
4.32 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
528.0 cm²/m
Nominal size
100
Inlet opening
9 x 0 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Longitudinal ductile iron grating, bar distance 9 mm, KTL-coated, cl. D 400, FASERFIX KS 100, 0.5 m
Product description
FASERFIX KS 100 - Longitudinal ductile iron grating bar distance 9 mm, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection, load class A 15 - D 400 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 8869
Packaging unit
264
