Article No. 28080
FASERFIX KS 100, class E 600
GUGI-ductile iron mesh grating MS 15/25 mm, galvanised, 0.5 m

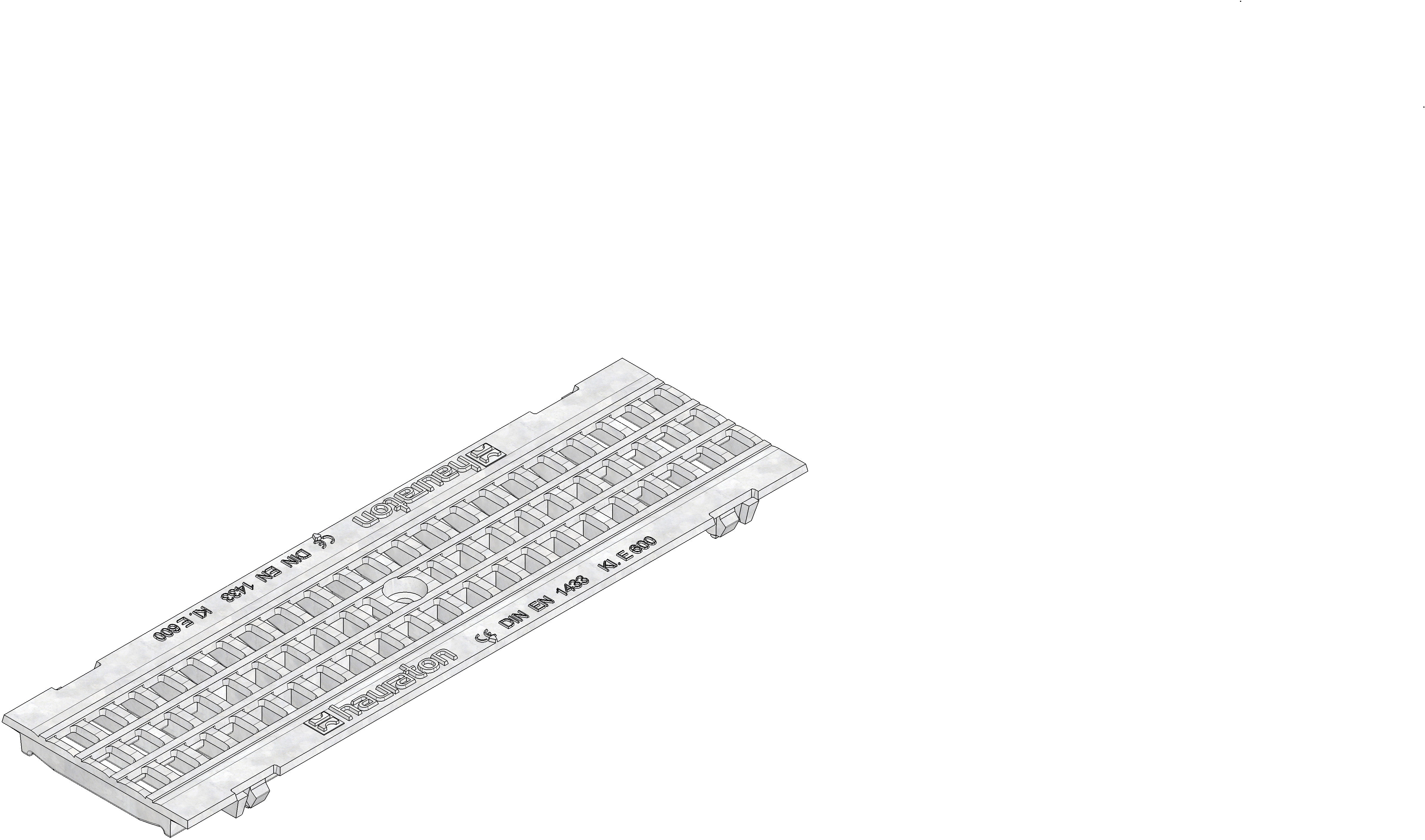

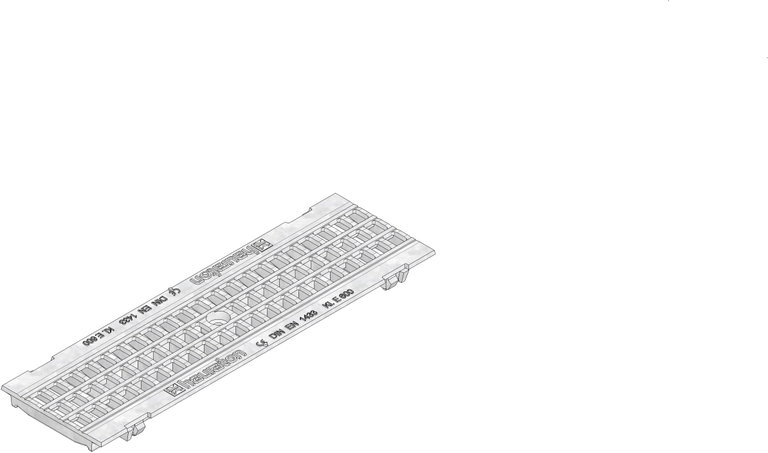

Product image
Top view
Technical drawing
Drawings
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
28080
Length
500 mm
Width
149 mm
Height
27 mm
Weight
4.60 kg
Nominal width | System size
100
Inlet cross-section
401 cm²/m
Grating inlay depth
20 mm
Grating design
GUGI - ductile iron - mesh grating
Grating opening type
Mesh width
Inlet opening
15 x 25 mm
Fixing type
Locking handle, SIDE-LOCK
Material of grating
Ductile iron GJS 500-7 galvanised
Regulations
DIN 1433, DIN 19580
Sales text
GUGI-ductile iron mesh grating MS 15/25 mm, galvanised, cl. E 600, FASERFIX KS 100, 0.5 m
Product description
FASERFIX KS 100 - GUGI-ductile iron mesh grating MS 15/25 mm, made of spheroidal ductile iron EN-GJS-500-7, galvanised, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no.28080
Brochure text
GUGI-ductile iron mesh grating MS 15/25 mm, galvanised, 0.5 m
Packaging unit
264 PAL
Declaration of Performance
