Article No. 28571
FASERFIX KS 100, class E 600
Mesh grating MS 11/30 mm, stainless steel, 1.0 m

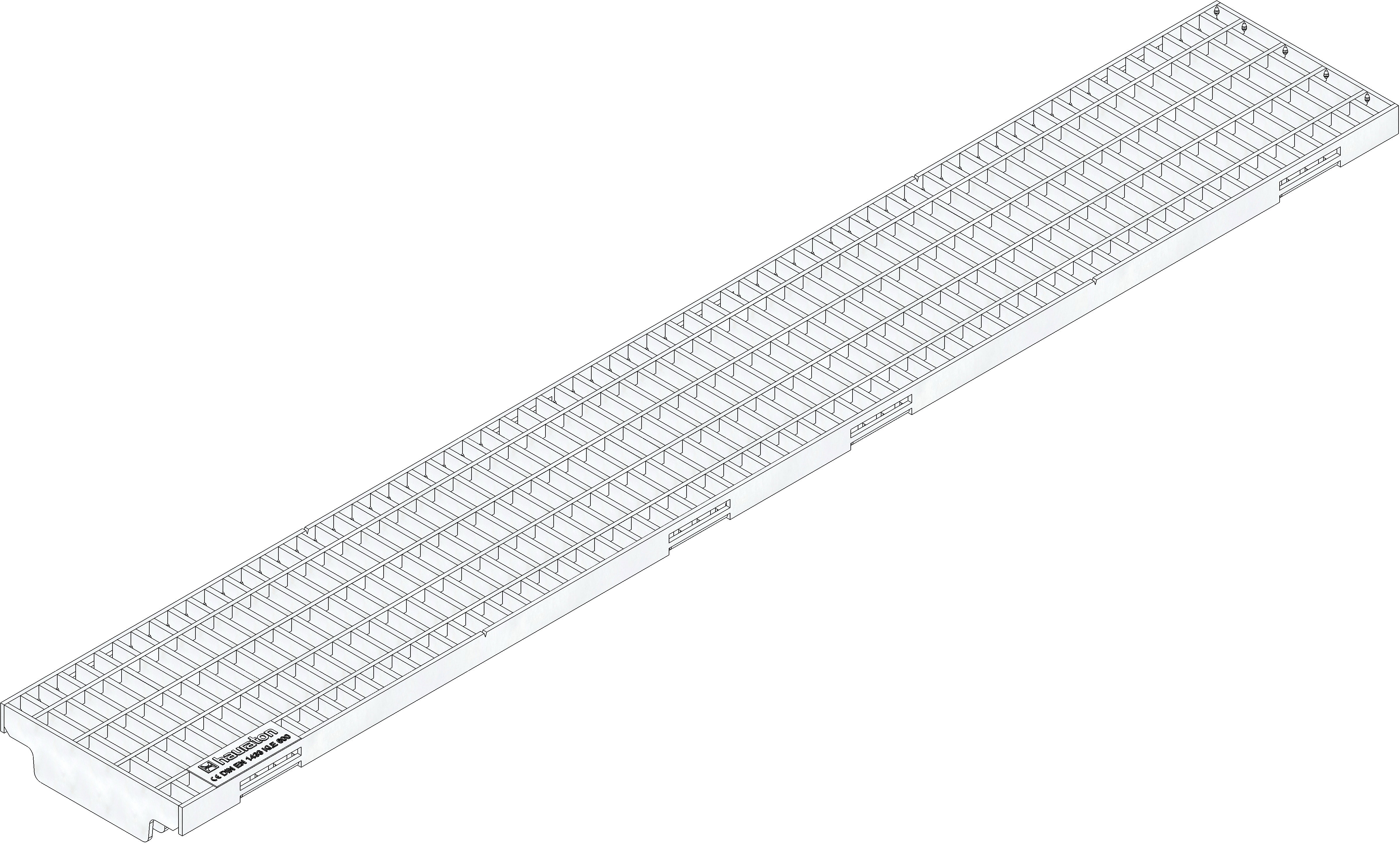

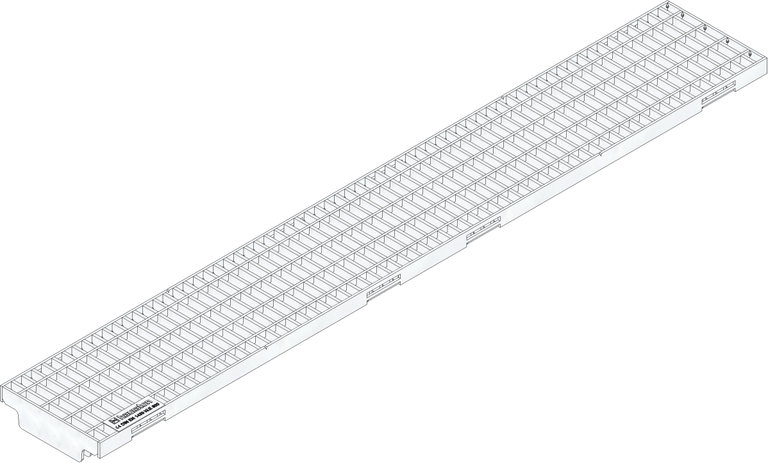

Product image
Top view
Technical drawing
Drawings
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
28571
Length
1000 mm
Width
149 mm
Height
41 mm
Weight
11.40 kg
Nominal width | System size
100
Inlet cross-section
950 cm²/m
Grating inlay depth
20 mm
Grating design
Mesh grating
Grating opening type
Mesh width
Inlet opening
11 x 30 mm
Fixing type
Locking handle, SIDE-LOCK
Material of grating
Stainless steel 1.4301
Regulations
DIN 1433, DIN 19580
Sales text
Mesh grating MS 11/30 mm, stainless steel, cl. E 600, FASERFIX KS 100, 1 m
Product description
FASERFIX KS 100 - Mesh grating MS 11/30 mm, stainless steel CNS 1.4301, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 8-fold locking, installation length 1000 mm, item no.28571
Brochure text
Mesh grating MS 11/30 mm, stainless steel, 1.0 m
Packaging unit
96 PAL
Declaration of Performance
