Article No. 11098
FASERFIX KS 150, class B 125
FIBRETEC design slotted grating SW 150/9 mm, in the colour black, 0.5 m

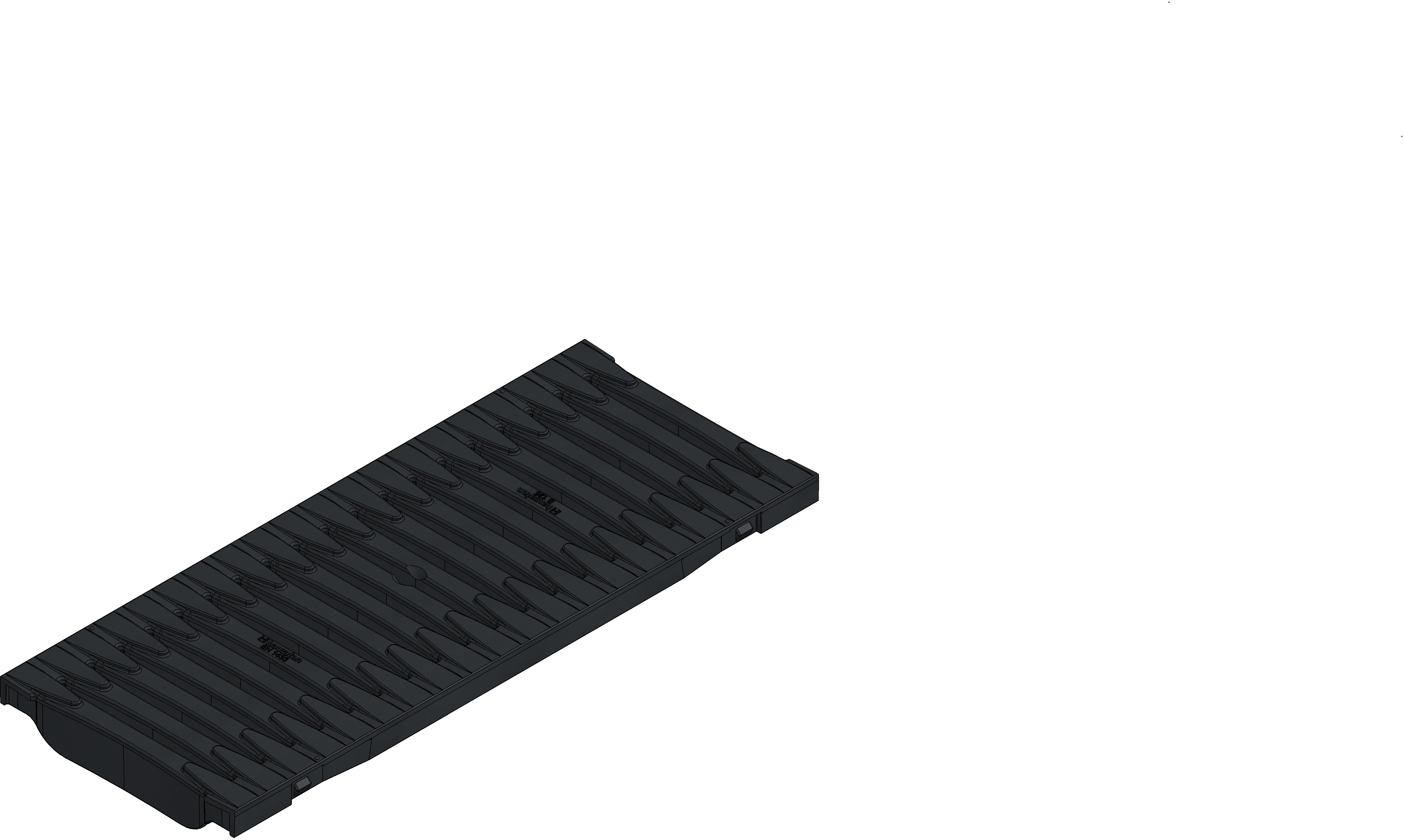

Product image
Top view
Technical drawing
Drawing (CAD)
Technical information and metrics
Article No.
11098
Length
500 mm
Width
199 mm
Height
40 mm
Inlay depth
20 mm
Weight
2.00 kg
Material
reinforced Polyamide
Intake cross-section
500.0 cm²/m
Nominal size
150
Inlet opening
150 x 9 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
reinforced Polyamide
Regulations
EN 1433, DIN 51130, AS 4586, EN 16165
Sales text
FIBRETEC Design slotted grating SW 150/9 mm, black, cl. B 125, FASERFIX KS 150, 0.5 m
Product description
FASERFIX KS 150 - FIBRETEC design slotted grating SW 150/9 mm, black, made of fibre-reinforced polyamide, with longitudinal slide protection and locking, load class A 15 - B 125 according to EN 1433, installation length 500 mm, item no. 11098
Packaging unit
-
