Article No. 10212
FASERFIX KS 150, class C 250
Ductile iron grating SW 132/18 mm, KTL-coated, 0.5 m

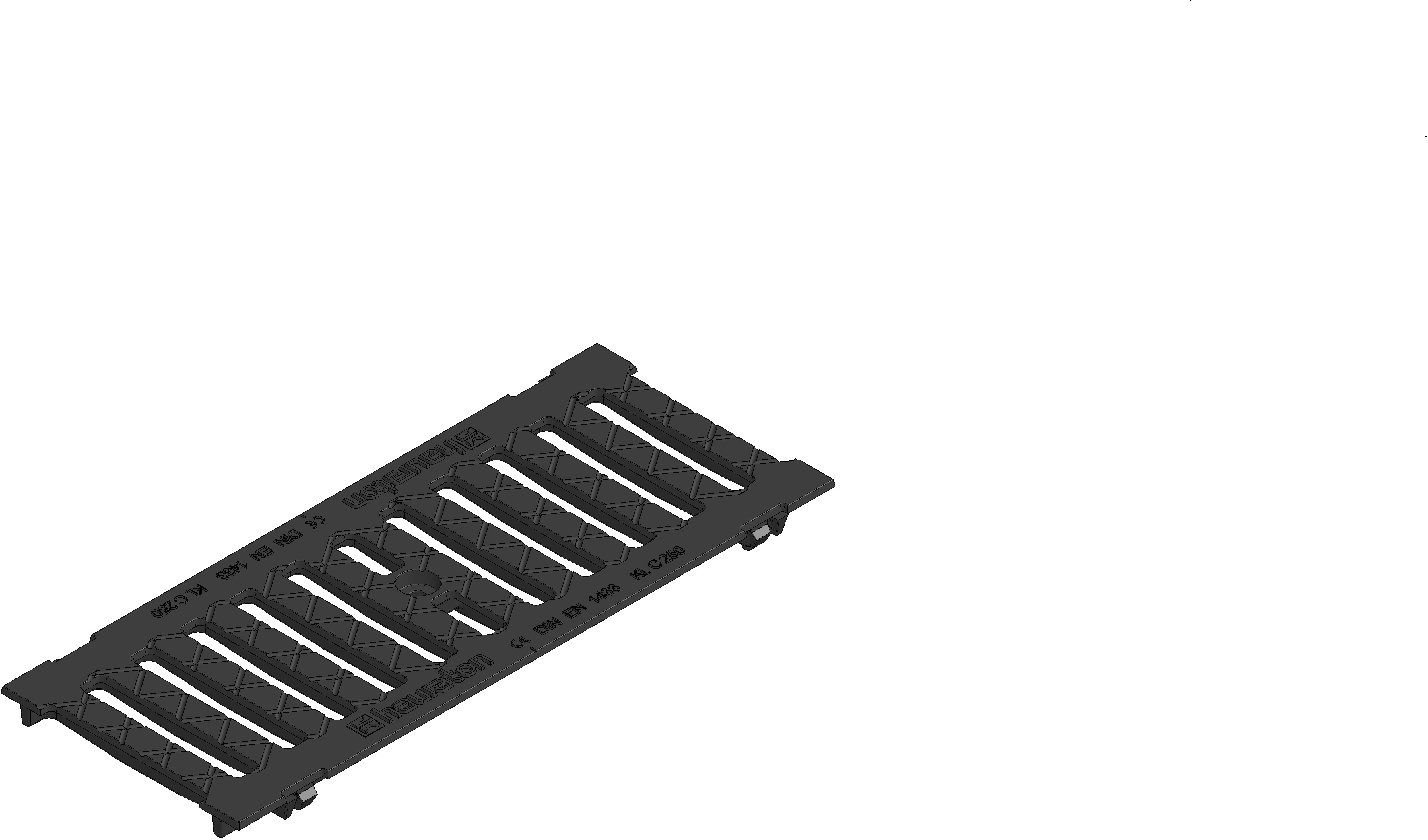

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10212
Length
500 mm
Width
199 mm
Height
26 mm
Inlay depth
20 mm
Weight
4.97 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
553.0 cm²/m
Nominal size
150
Inlet opening
132 x 18 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433
Sales text
Ductile iron grating SW 132/18 mm, KTL-coated, cl. C 250, FASERFIX KS 150, 0.5 m
Product description
FASERFIX KS 150 - Ductile iron grating SW 132/18 mm, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, longitudinal slide protection, load class A 15 - C 250 according to EN 1433, CE compliant, 4-fold-locking, installation length 500 mm, item no. 10212
Packaging unit
-
