Article No. 11076
FASERFIX KS 150, class C 250
Mesh grating MS 30/10 mm, galvanised, 0.5 m

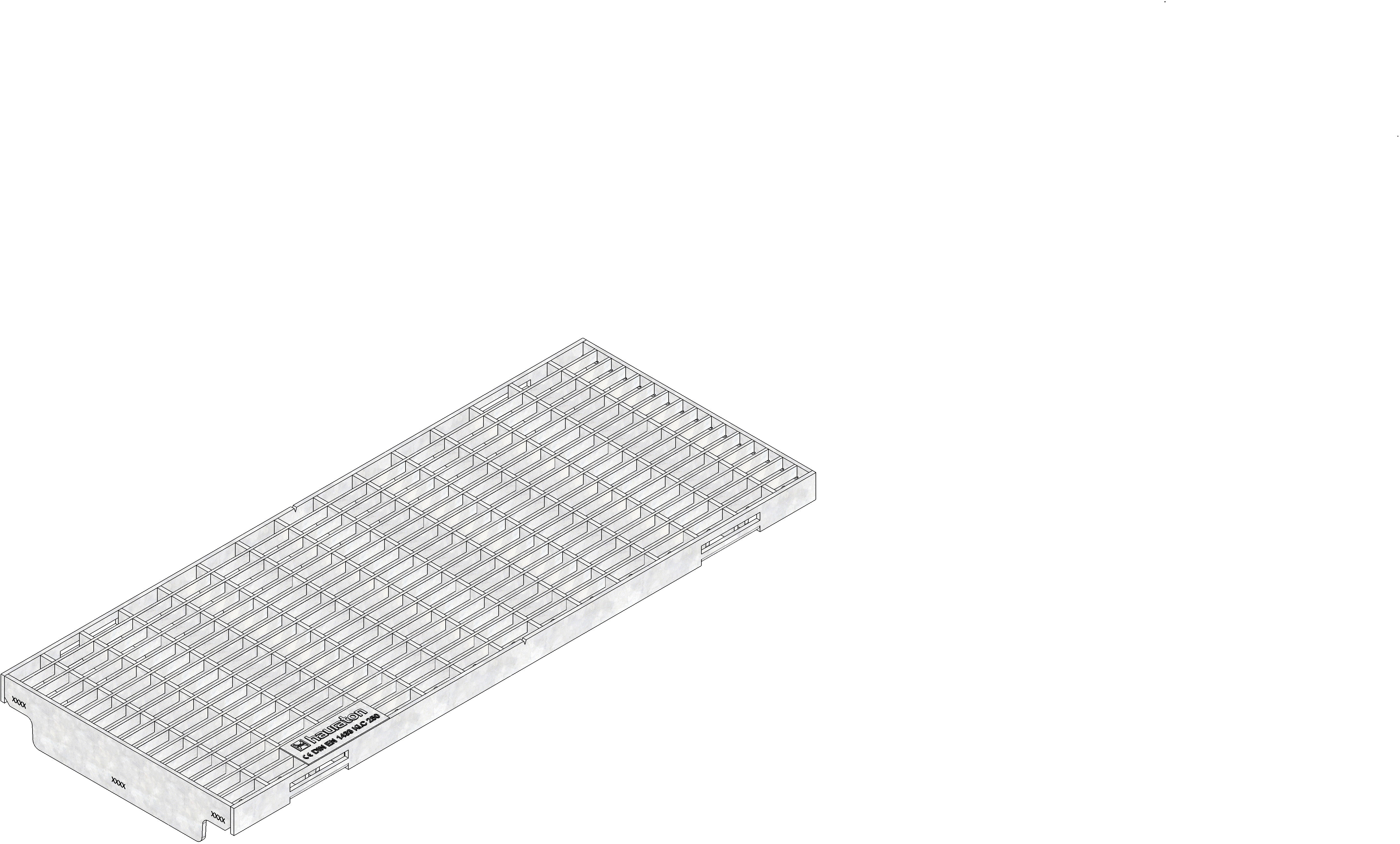

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
11076
Length
500 mm
Width
199 mm
Height
41 mm
Inlay depth
20 mm
Weight
4.13 kg
Material
hot-dip galvanised steel
Intake cross-section
1444.0 cm²/m
Nominal size
150
Inlet opening
30 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MS 30/10 mm, galvanised, cl. C 250, FASERFIX KS 150, 0.5 m
Product description
FASERFIX KS 150 - Mesh grating MS 30/10 mm, galvanised, with longitudinal slide protection, load class A 15 - C 250 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 11076
Packaging unit
204
