Article No. 11575
FASERFIX KS 150, class C 250
Mesh grating MS 30/10 mm, stainless steel, 1.0 m

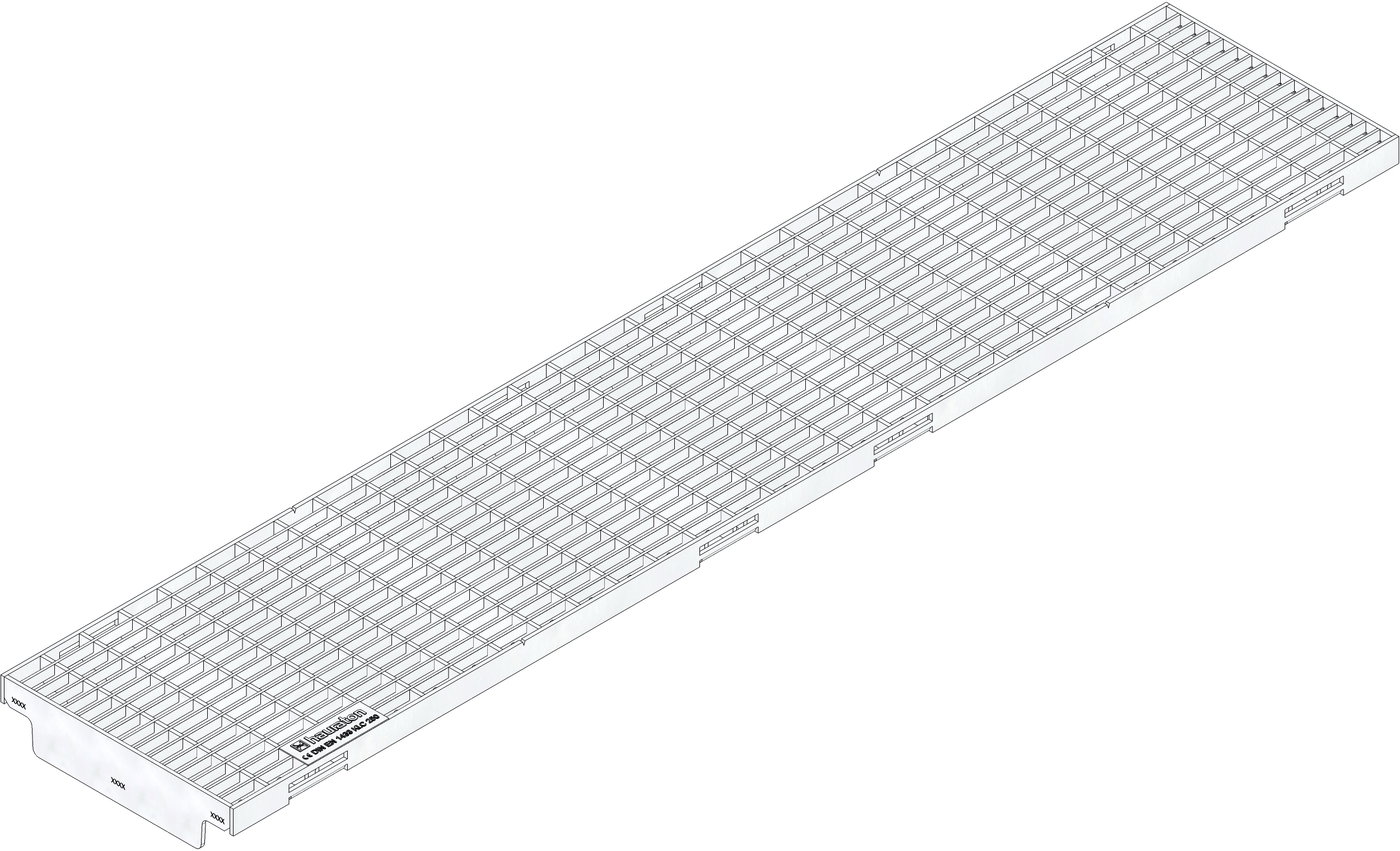

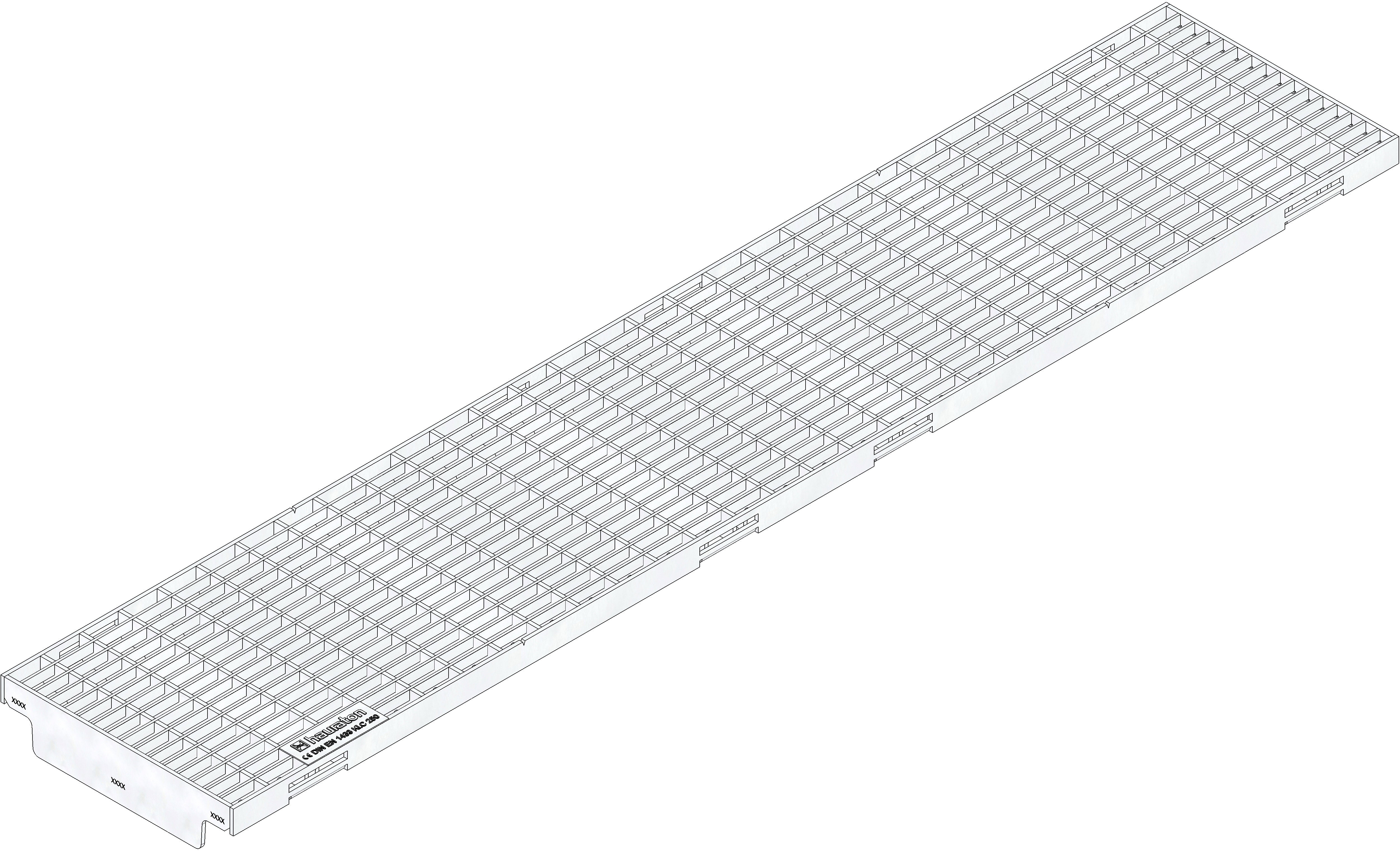

Product image
Top view
Technical drawing
Drawings
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
11575
Length
1000 mm
Width
199 mm
Height
46 mm
Weight
7.96 kg
Nominal width | System size
150
Inlet cross-section
1466 cm²/m
Grating inlay depth
20 mm
Grating design
Mesh grating
Grating opening type
Mesh width
Inlet opening
30 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material of grating
Stainless steel 1.4301
Regulations
DIN 1433, DIN 19580
Sales text
Mesh grating MS 30/10 mm, stainless steel, cl. C 250, FASERFIX KS 150, 1 m
Product description
FASERFIX KS 150 - Mesh grating MS 30/10 mm, stainless steel CNS 1.4301, with longitudinal slide protection, load class A 15 - C 250 according to EN 1433, CE compliant, 8-fold locking, installation length 1000 mm, item no. 11575
Brochure text
Mesh grating MS 30/10 mm, stainless steel, 1.0 m
Packaging unit
102 PAL
Declaration of Performance
