Article No. 11463
FASERFIX KS 150, class D 400
Ductile iron grating SW 132/18 mm, black, 0.5 m

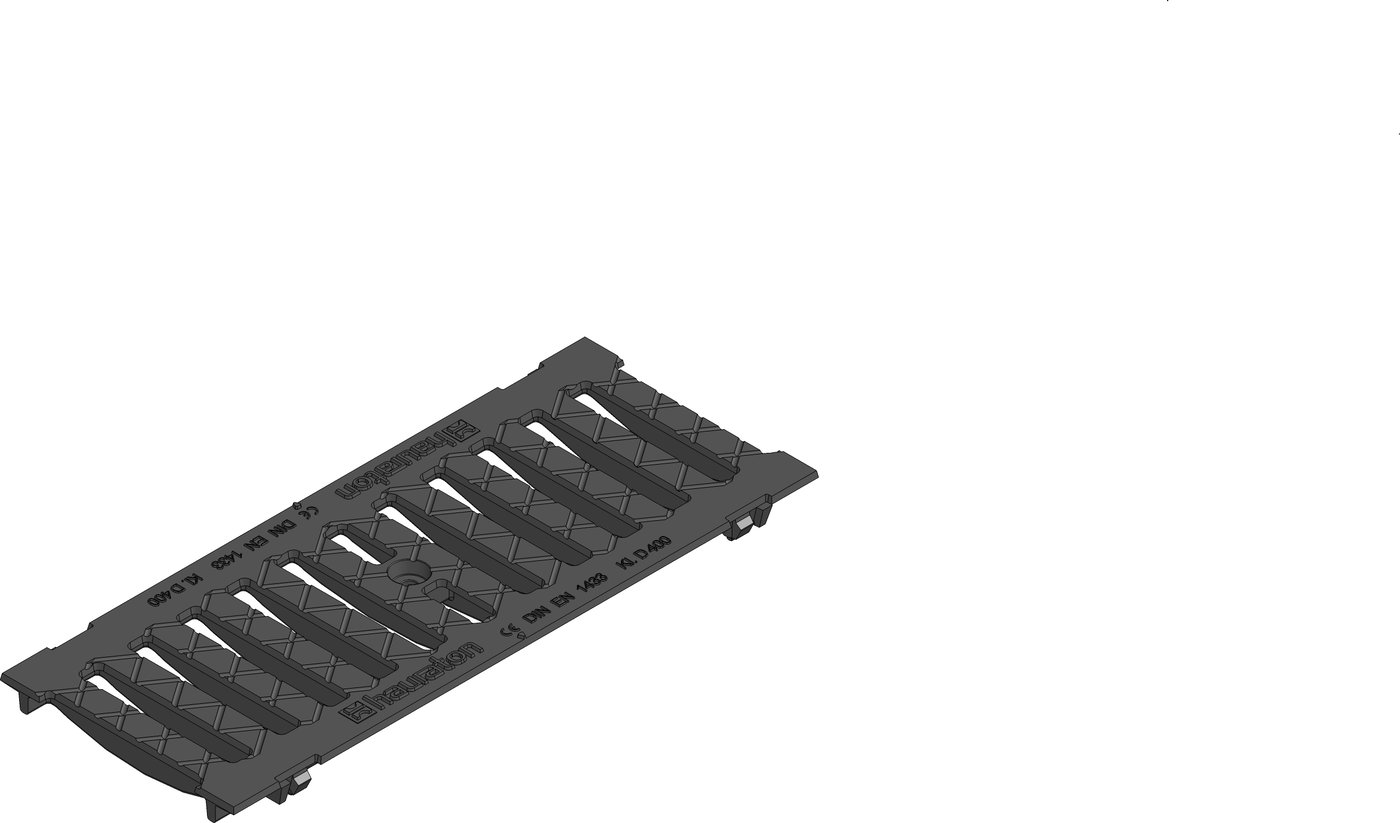

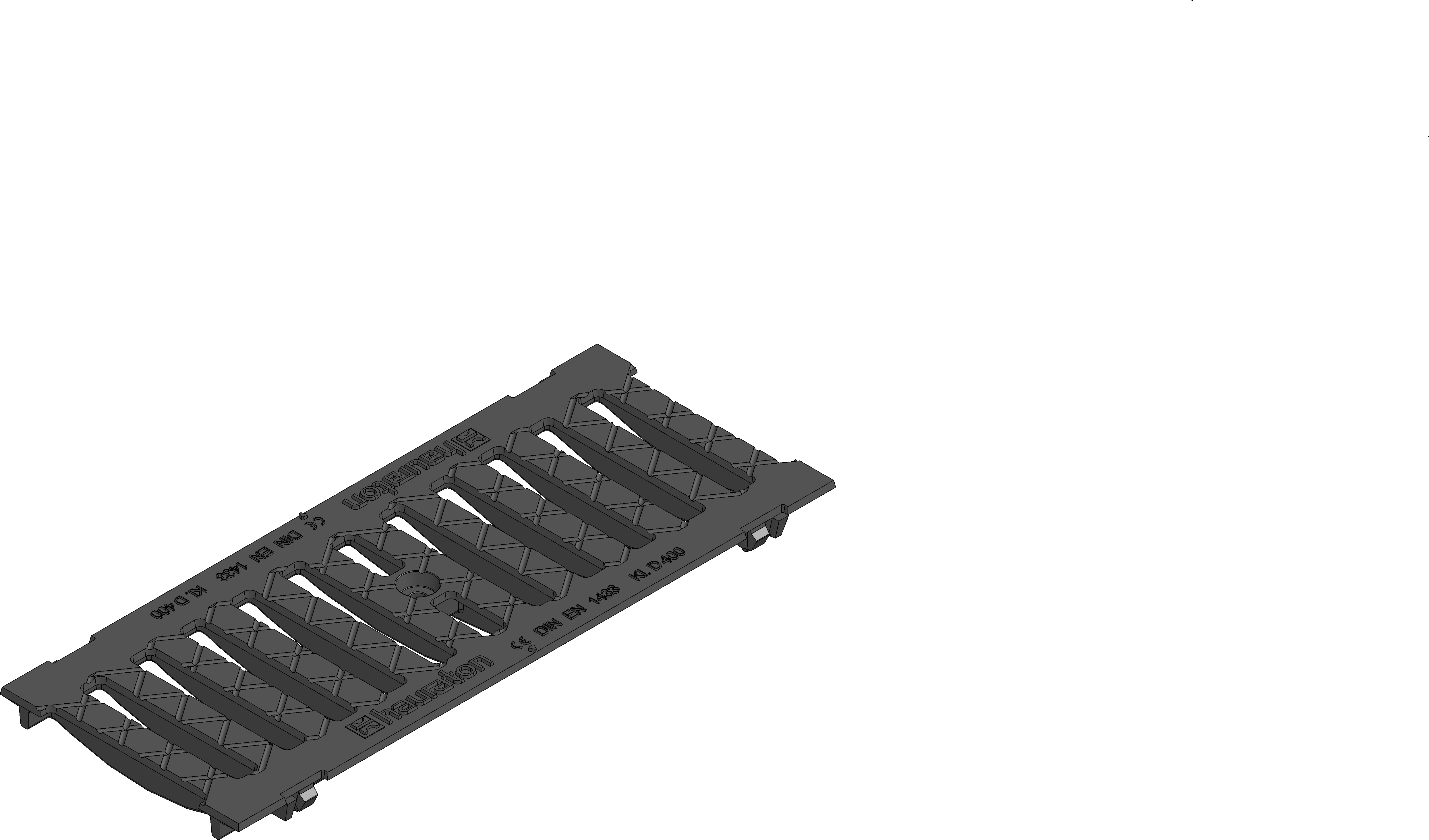

Product image
Top view
Technical drawing
Drawings
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
11463
Length
500 mm
Width
199 mm
Height
35 mm
Weight
5.30 kg
Nominal width | System size
150
Inlet cross-section
553 cm²/m
Grating inlay depth
20 mm
Grating design
Ductile iron grating
Grating opening type
Slot width
Inlet opening
132 x 18 mm
Fixing type
Locking handle, SIDE-LOCK
Material of grating
Ductile iron GJS 500-7
Regulations
DIN 1433, DIN 19580
Sales text
Ductile iron grating SW 132/18 mm, black, cl. D 400, FASERFIX KS 150, 0.5 m
Product description
FASERFIX KS 150 - Ductile iron grating SW 132/18 mm, made of spheroidal ductile iron GJS 500-7, black, with longitudinal slide protection, load class A 15 - D 400 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 11463
Brochure text
Ductile iron grating SW 132/18 mm, black, 0.5 m
Packaging unit
154 PAL
Declaration of Performance
