Article No. 11269
FASERFIX KS 150, class D 400
Longitudinal ductile iron grating, bar distance 9 mm, KTL-coated, 0.5 m

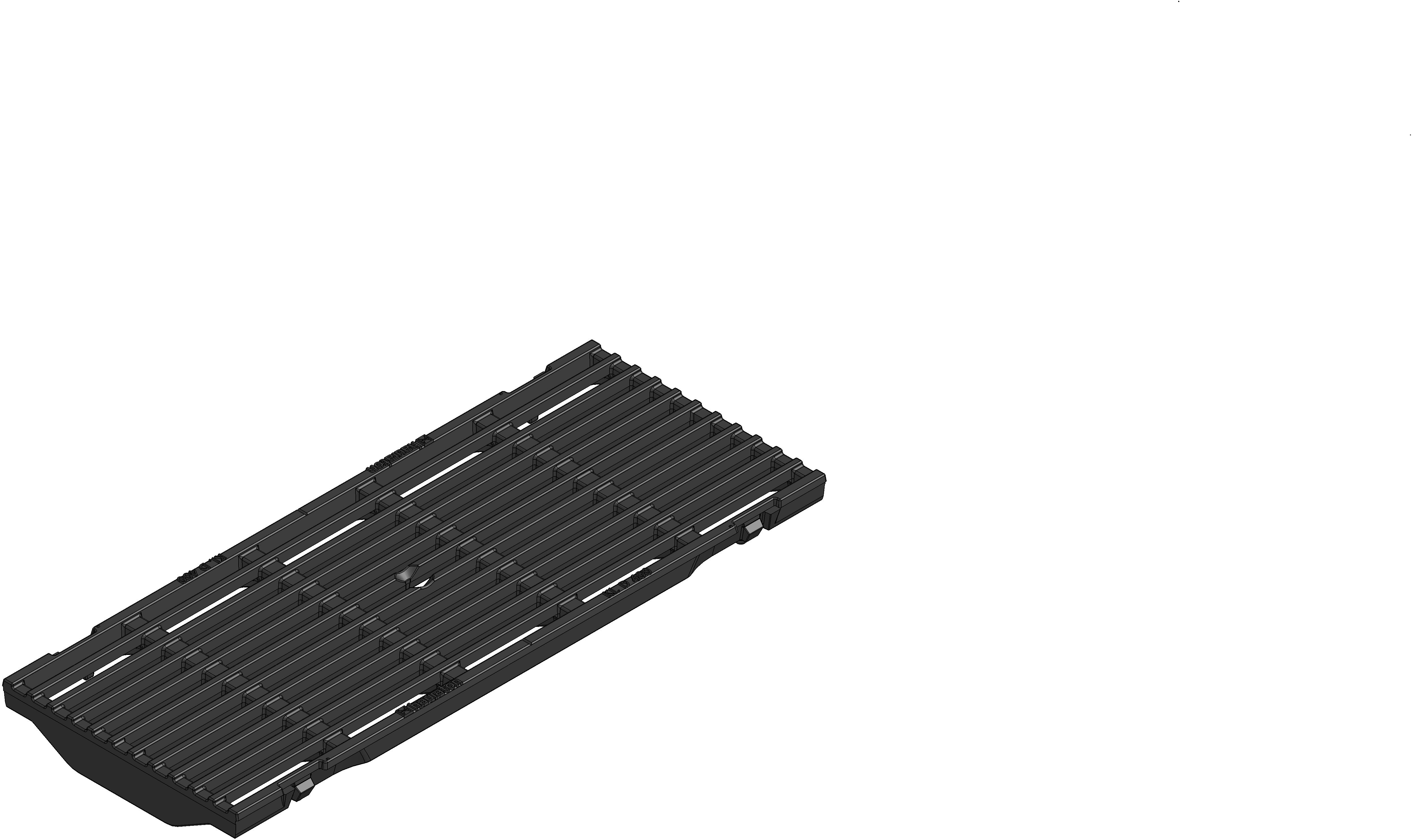

Product image
Top view
Technical drawing
Drawing (CAD)
Technical information and metrics
Article No.
11269
Length
500 mm
Width
199 mm
Height
37 mm
Inlay depth
20 mm
Weight
5.92 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
740.0 cm²/m
Nominal size
150
Inlet opening
9 x 0 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Longitudinal ductile iron grating, bar distance 9 mm, KTL-coated, cl. D 400, FASERFIX KS 150, 0.5 m
Product description
FASERFIX KS 150 - Longitudinal ductile iron grating bar distance 9 mm, made of spheroidal ductile iron GJS 500-7, KTL-coated, with longitudinal slide protection, load class A 15 - D 400 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 11269
Packaging unit
144
