Article No. 10543
FASERFIX KS 150, class D 400
Mesh grating MS 30/10 mm, galvanised, 0.5 m

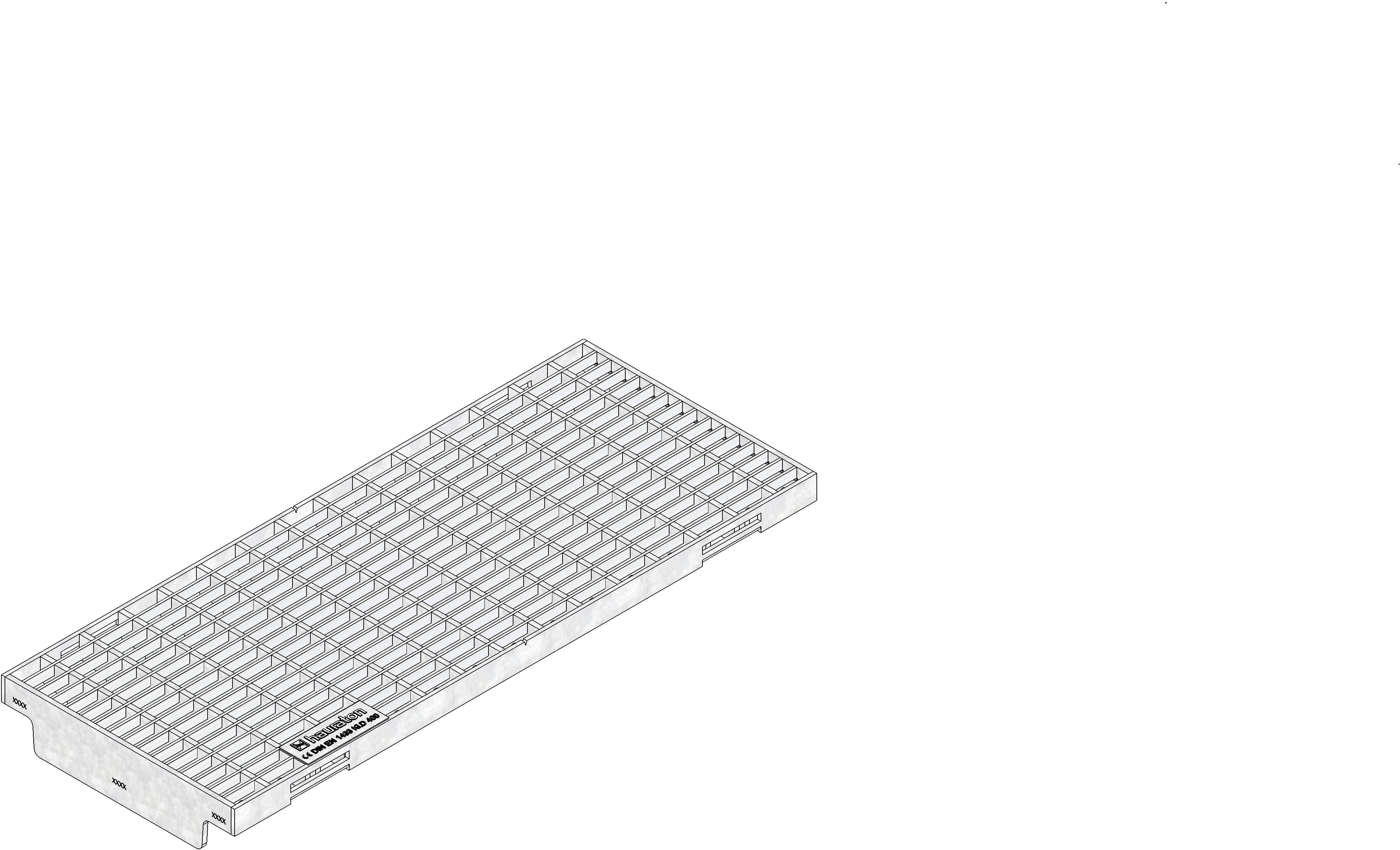

Product image
Top view
Technical drawing
Drawings
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
10543
Length
500 mm
Width
199 mm
Height
46 mm
Weight
5.27 kg
Nominal width | System size
150
Inlet cross-section
1390 cm²/m
Grating inlay depth
20 mm
Grating design
Mesh grating
Grating opening type
Mesh width
Inlet opening
30 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material of grating
hot-dip galvanised steel
Regulations
DIN 1433
Sales text
Mesh grating MS 30/10 mm, galvanised, cl. D 400, FASERFIX KS 150, 0.5 m
Product description
FASERFIX KS 150 - Mesh grating MS 30/10 mm, galvanised, with longitudinal slide protection, load class A 15 - D 400 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 10543
Brochure text
Mesh grating MS 30/10 mm, galvanised, 0.5 m
Declaration of Performance
