Article No. 11071
FASERFIX KS 150, class E 600
Mesh grating MS 11/30 mm, galvanised, 1.0 m

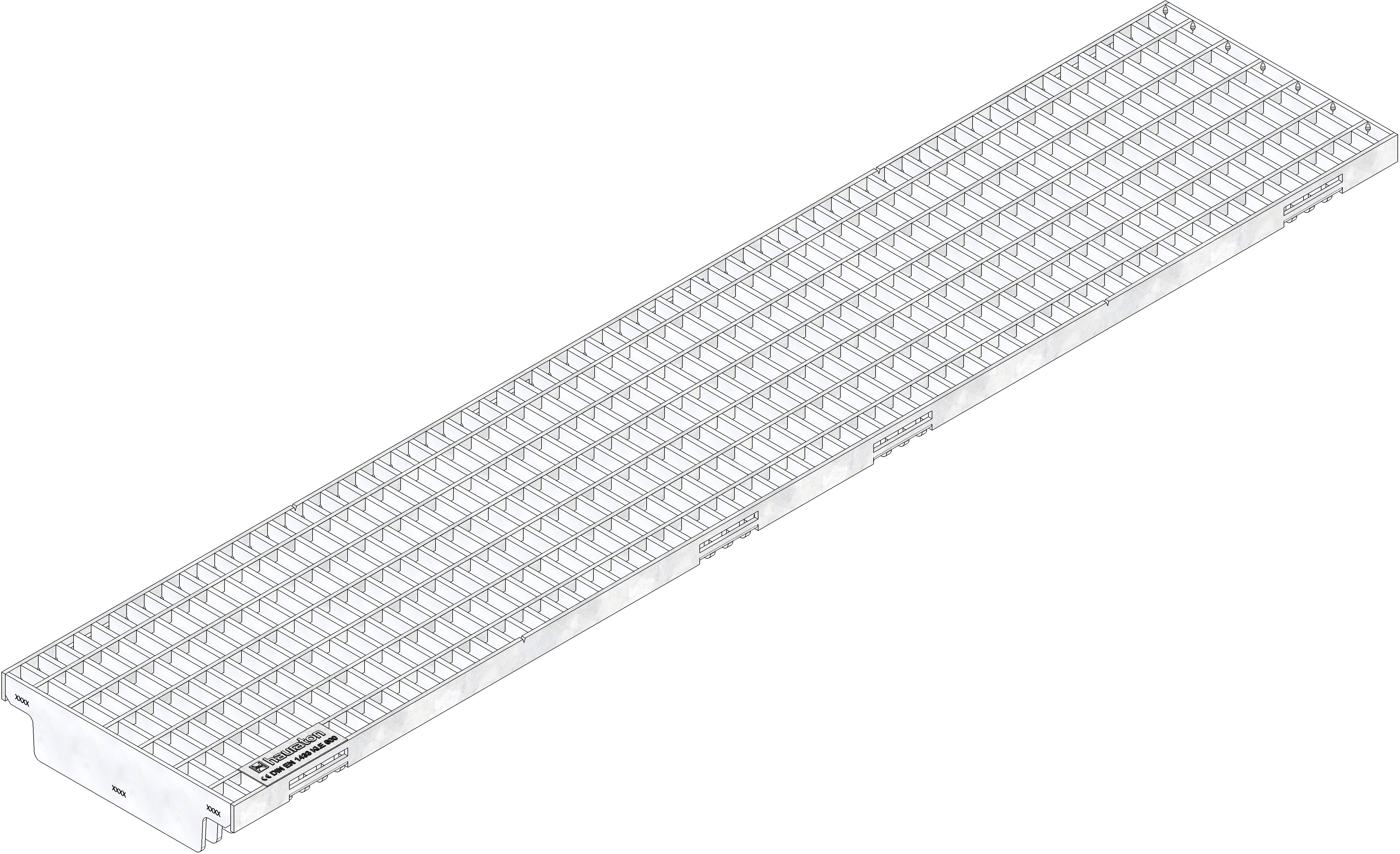

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
11071
Length
1000 mm
Width
199 mm
Height
51 mm
Inlay depth
20 mm
Weight
18.80 kg
Material
hot-dip galvanised steel
Intake cross-section
1270.0 cm²/m
Nominal size
150
Inlet opening
11 x 30 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MS 11/30 mm, galvanised, cl. E 600, FASERFIX KS 150, 1 m
Product description
FASERFIX KS 150 - Mesh grating MS 11/30 mm, galvanised, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 8-fold locking, installation length 1000 mm, item no. 11071
Packaging unit
54
