Article No. 11026

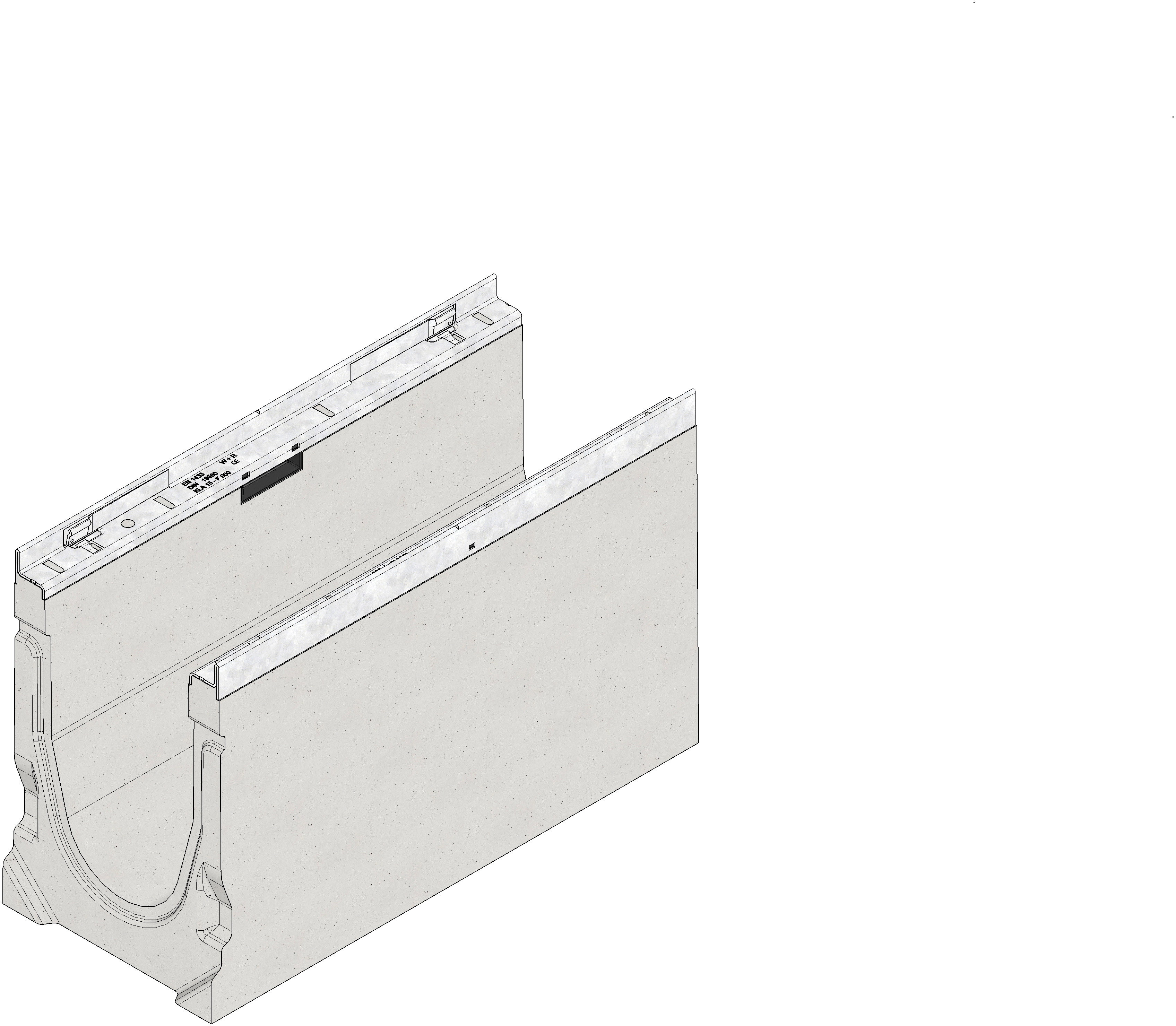

FASERFIX KS 150 up to class F 900
Type 020, galvanised, 0.5 m
Technical information and metrics
Article No.
11026
Length
500 mm
Width
210 mm
Height
315 mm
Weight
34.80 kg
Nominal width | System size
150
Edge frame height
20 mm
Sloping depth channel
-
Clear channel cross-section
324 cm²
Fixing type
Locking handle, SIDE-LOCK
Material of channel body
fibre-reinforced concrete
Material of edge frame
strip galvanized steel
Type according to DIN EN 1433
Typ M
Regulations
DIN 1433, DIN 19580
Sales text
FASERFIX KS 150 Channel body type 020 with edge frames made of galvanised steel, 0.5 m
Product description
FASERFIX KS 150 type 020 - Channel body made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frame made of galvanised steel and boltless quick-locking system SIDE-LOCK for quick and easy installation of the grating, additional locking mechanism applicable, 4-fold locking, with sealing groove, LxWxH 500x210x315 mm, item no. 11026
Brochure text
Type 020, galvanised, 0.5 m
Packaging unit
20 PAL
