Article No. 12098
FASERFIX KS 200, class B 125
FIBRETEC design slotted grating SW 200/10 mm, in the colour black, 0.5 m

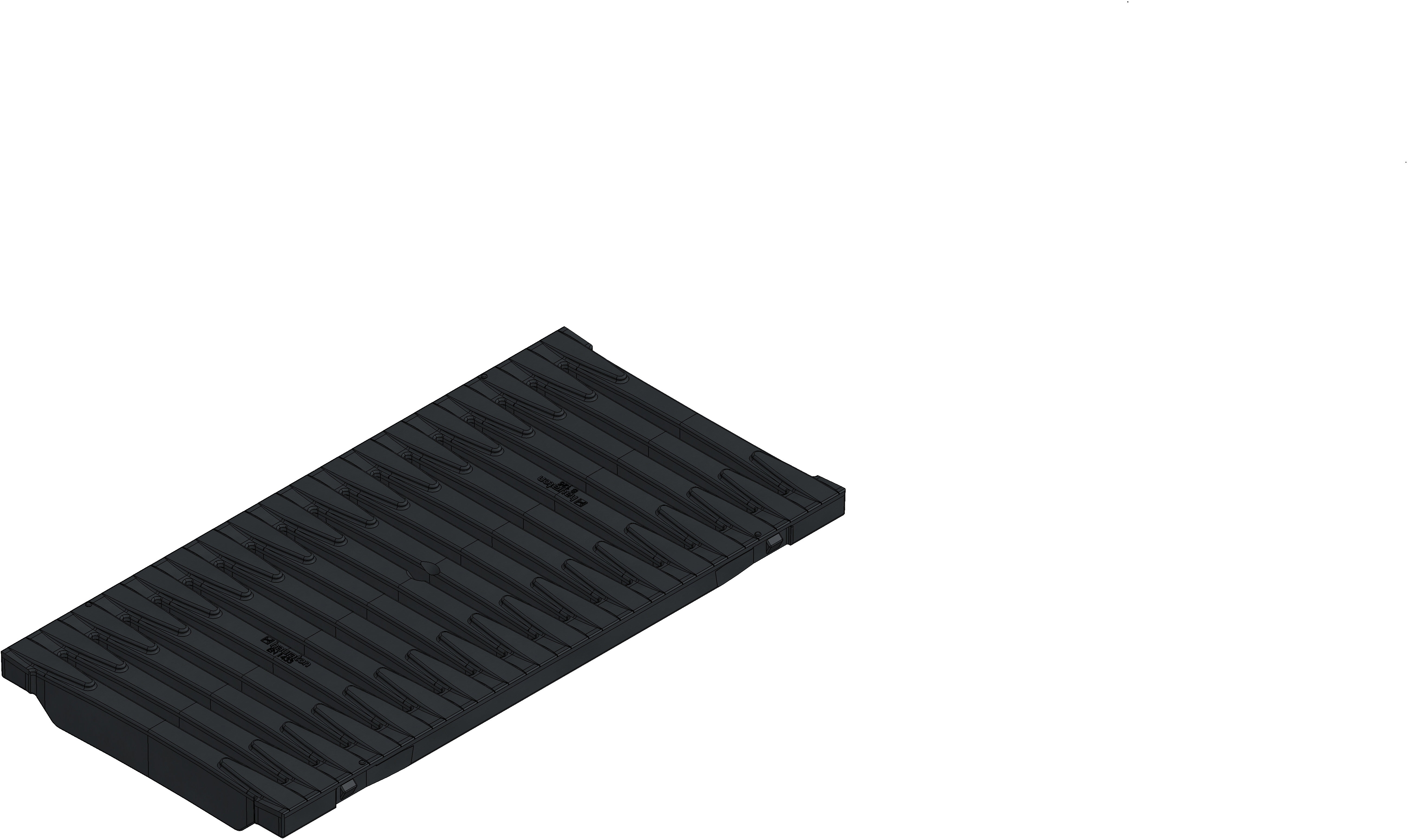

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
12098
Length
500 mm
Width
249 mm
Height
40 mm
Inlay depth
20 mm
Weight
2.11 kg
Material
reinforced Polyamide
Intake cross-section
656.0 cm²/m
Nominal size
200
Inlet opening
200 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
reinforced Polyamide
Regulations
EN 1433, DIN 51130, AS 4586, DIN 19580, EN 16165
Sales text
FIBRETEC Design slotted grating SW 200/10 mm, black, cl. B 125, FASERFIX KS 200, 0.5 m
Product description
FASERFIX KS 200 - FIBRETEC design slotted grating SW 200/10 mm, black, made of fibre-reinforced polyamide, with longitudinal slide protection and locking, load class A 15 - B 125 according to EN 1433, installation length 500 mm, item no. 12098
Packaging unit
120
