Article No. 12073
FASERFIX KS 200, class C 250
Mesh grating MS 30/30 mm, galvanised, 1.0 m

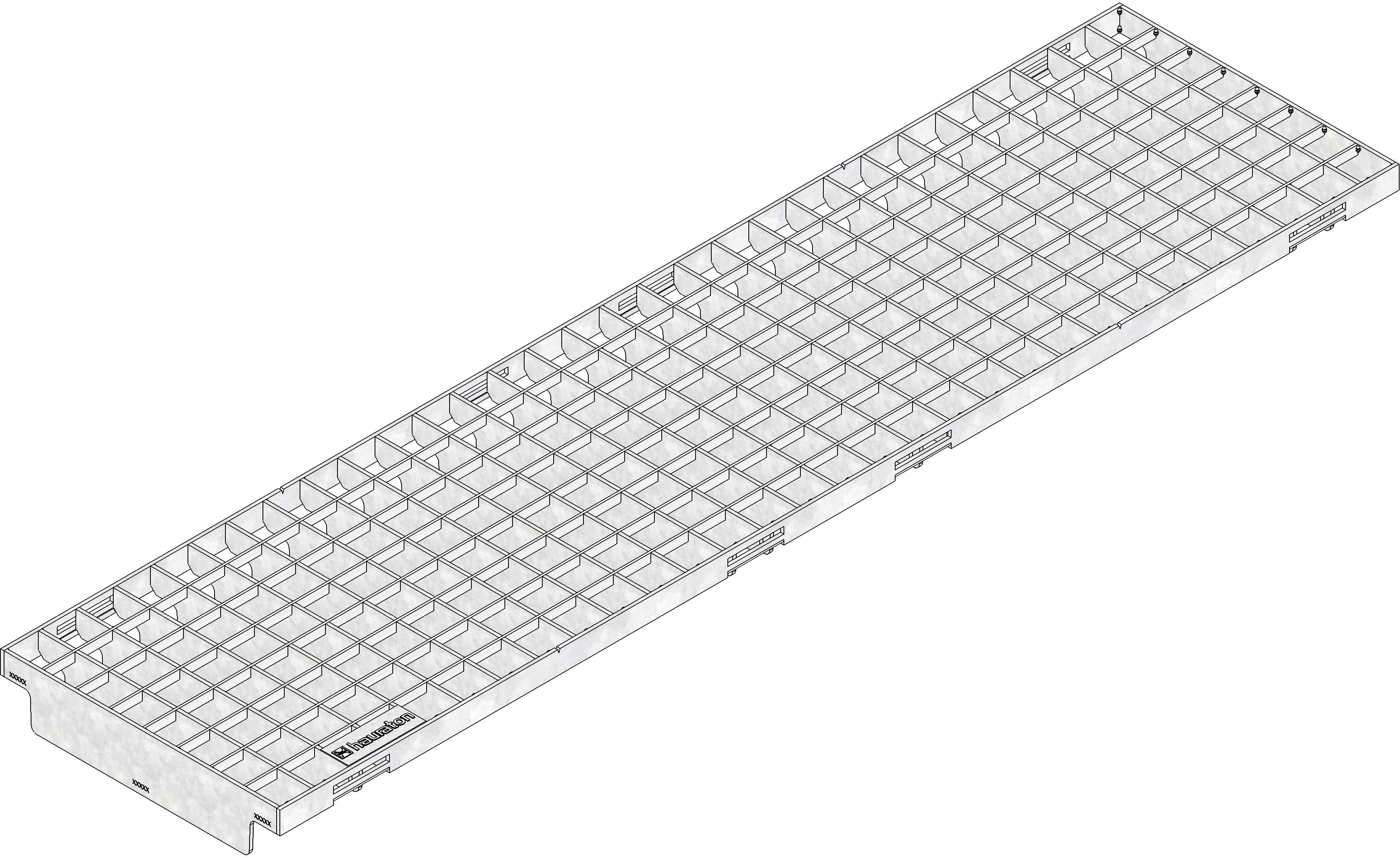

Product image
Top view
Technical drawing
Drawings
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
12073
Length
1000 mm
Width
249 mm
Height
51 mm
Weight
9.20 kg
Nominal width | System size
200
Inlet cross-section
2054 cm²/m
Grating inlay depth
20 mm
Grating design
Mesh grating
Grating opening type
Mesh width
Inlet opening
30 mm
Fixing type
Locking handle, SIDE-LOCK
Material of grating
hot-dip galvanised steel
Regulations
DIN 1433, DIN 19580
Sales text
Mesh grating MS 30/30 mm, galvanised, cl. C 250, FASERFIX KS 200, 1 m
Product description
FASERFIX KS 200 - Mesh grating MS 30/30 mm, galvanised, with longitudinal slide protection, load class A 15 - C 250 according to EN 1433, CE compliant, 8-fold locking, installation length 1000 mm, item no. 12073
Brochure text
Mesh grating MS 30/30 mm, galvanised, 1.0 m
Packaging unit
100 PAL
Declaration of Performance
