Article No. 12268
FASERFIX KS 200, class E 600
GUGI-ductile iron mesh grating MS 15/25 mm, KTL-coated, 0.5 m

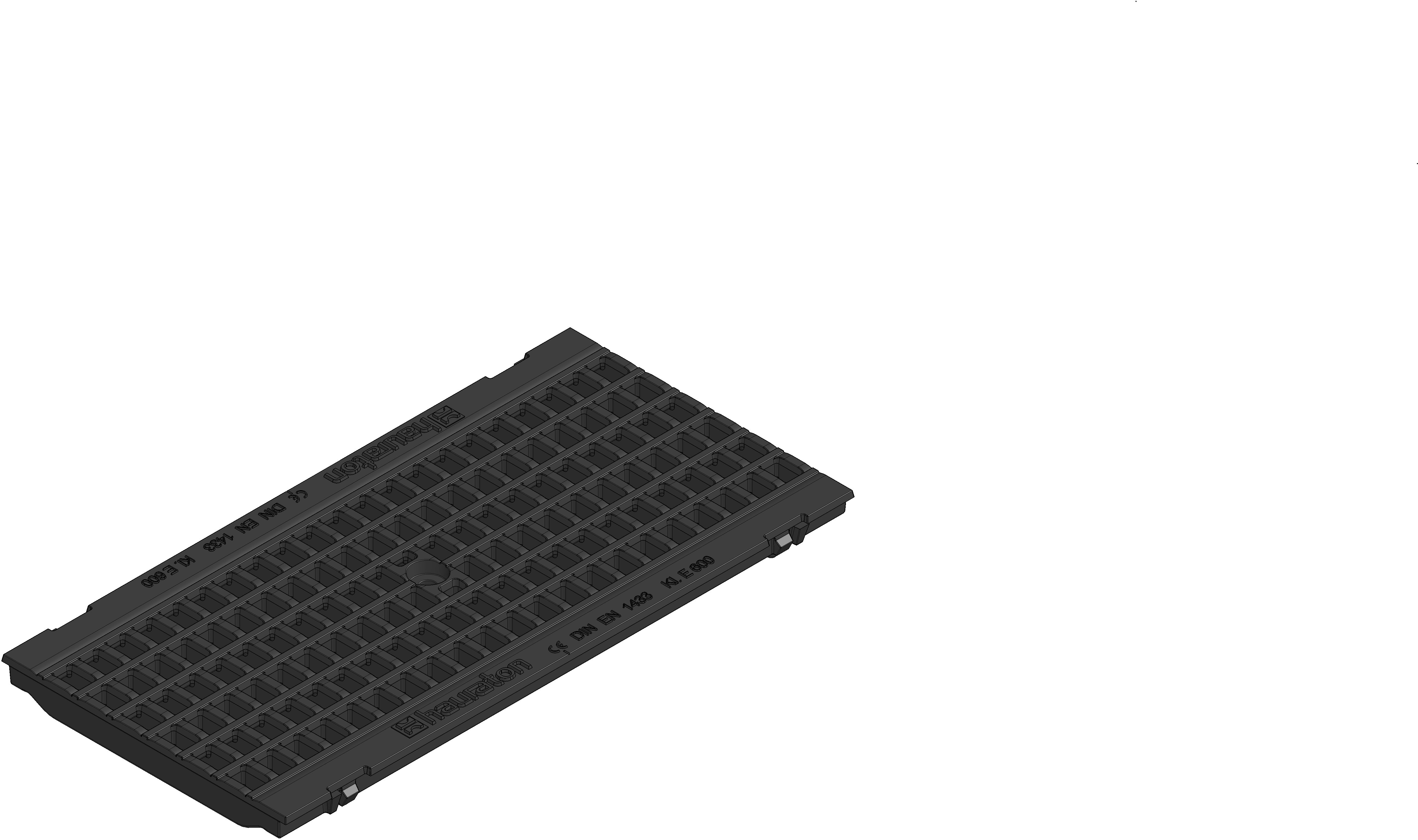

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
12268
Length
500 mm
Width
249 mm
Height
34 mm
Inlay depth
20 mm
Weight
9.70 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
867.0 cm²/m
Nominal size
200
Inlet opening
15 x 25 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
GUGI-ductile iron mesh grating MS 15/25 mm, KTL-coated, cl. E 600, FASERFIX KS 200, 0.5 m
Product description
FASERFIX KS 200 - GUGI-ductile iron mesh grating MS 15/25 mm, made of spheroidal ductile iron GJS 500-7, KTL-coated, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 12268
Packaging unit
96
