Article No. 14068
FASERFIX KS 300, class E 600
GUGI-ductile iron mesh grating MS 15/25 mm, black, 0.5 m

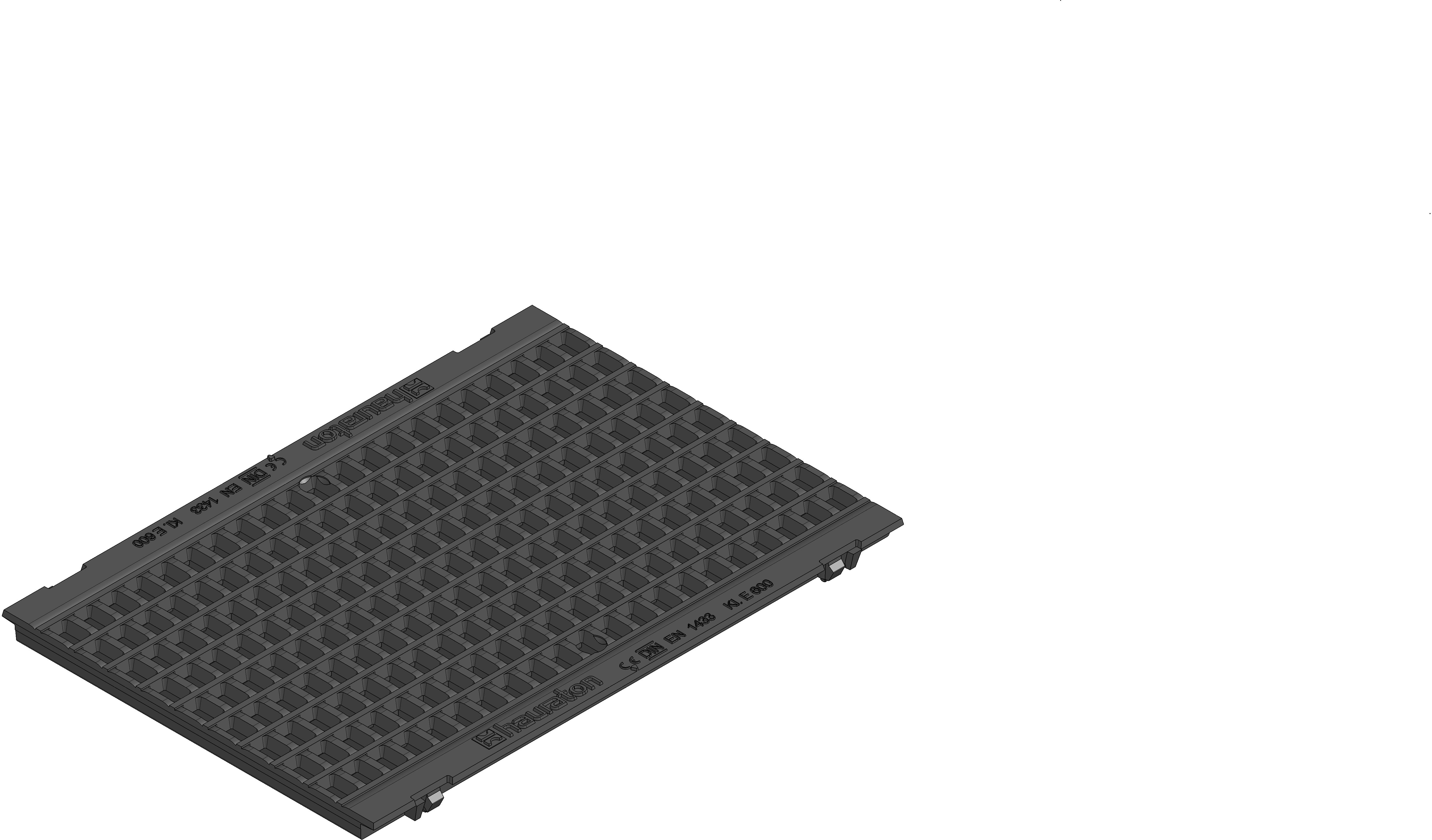

Product image
Top view
Technical drawing
Drawing (CAD)
Technical information and metrics
Article No.
14068
Length
500 mm
Width
349 mm
Height
47 mm
Inlay depth
20 mm
Weight
18.12 kg
Material
Ductile iron GJS 500-7
Intake cross-section
1188.0 cm²/m
Nominal size
300
Inlet opening
15 x 25 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, AS 4586, DIN 19580
Sales text
GUGI-ductile iron mesh grating MS 15/25 mm, black, cl. E 600, FASERFIX KS 300, 0.5 m
Product description
FASERFIX KS 300 - GUGI-ductile iron mesh grating MS 15/25 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 14068
Packaging unit
50
