Article No. 8010

FASERFIX KS 100 with gradient 0.6 %, up to load class F 900

Type 10, galvanised, 1.0 m

Project request Tender Texts

Fragen?

Unser erfahrenes Planungsteam hilft Ihnen gerne.

Fragen?

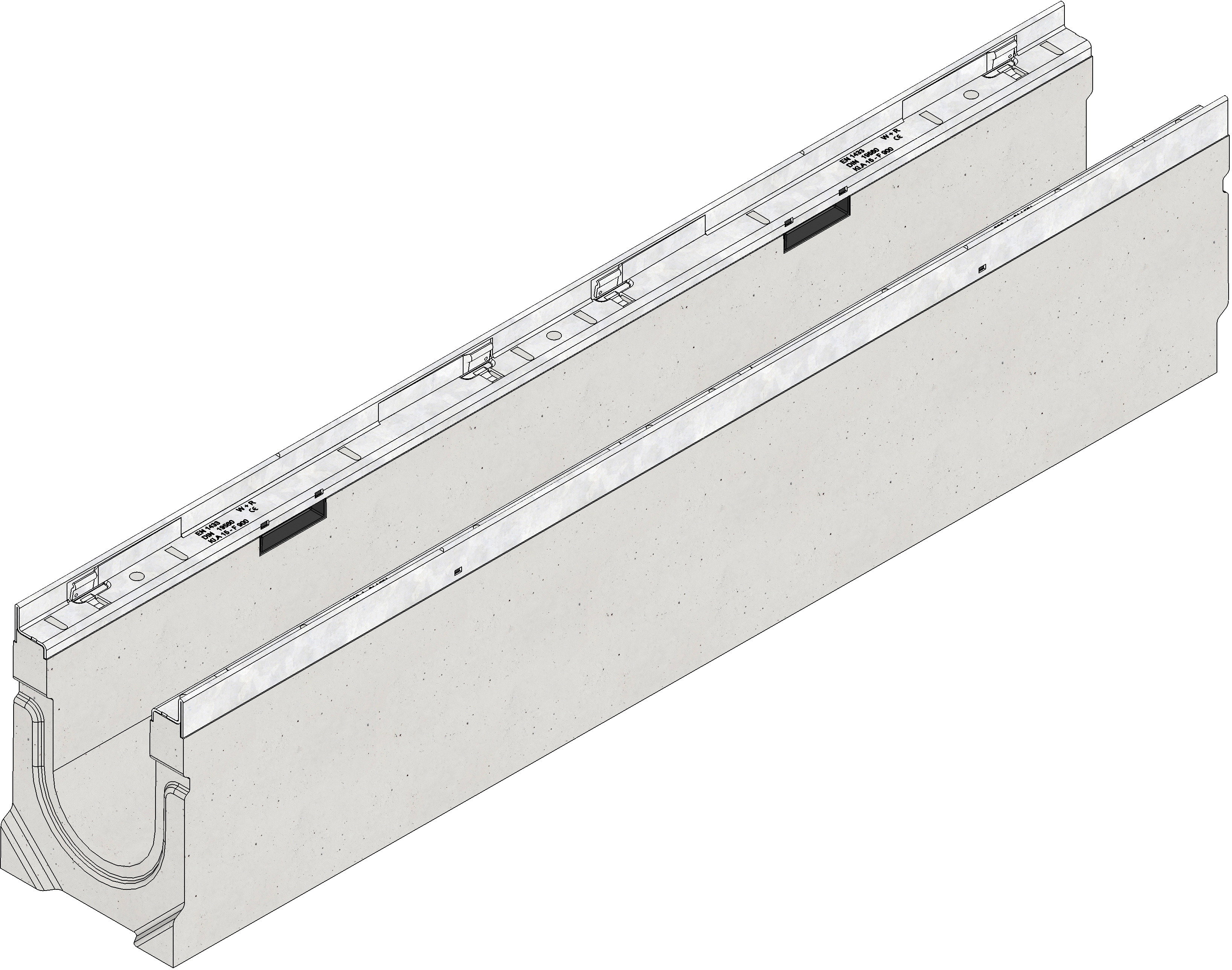

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Technical information and metrics
Article No.
8010
Length
1000 mm
Width
160 mm
Height
214 - 220 mm
Weight
39.99 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
100
Internal channel cross-section
143 cm²
Fall
0.6 %
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX KS 100 Channel body type 10 with edge frames made of galvanised steel, 1 m
Product description
FASERFIX KS 100 type 1 - 19 - Channel body made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, sloping depth channel 0.6 %, with edge frames made of galvanised steel and boltless quick-locking system SIDE-LOCK for quick and easy installation of the grating, additional locking mechanism applicable, 8-fold locking, with sealing groove, LxWxH 1000x160x160-274 mm, item no. 8001 - 8019
Packaging unit
21
