Article No. 14040
FASERFIX KS 300 up to load class E 600
Type 010, galvanised, 1.0 m

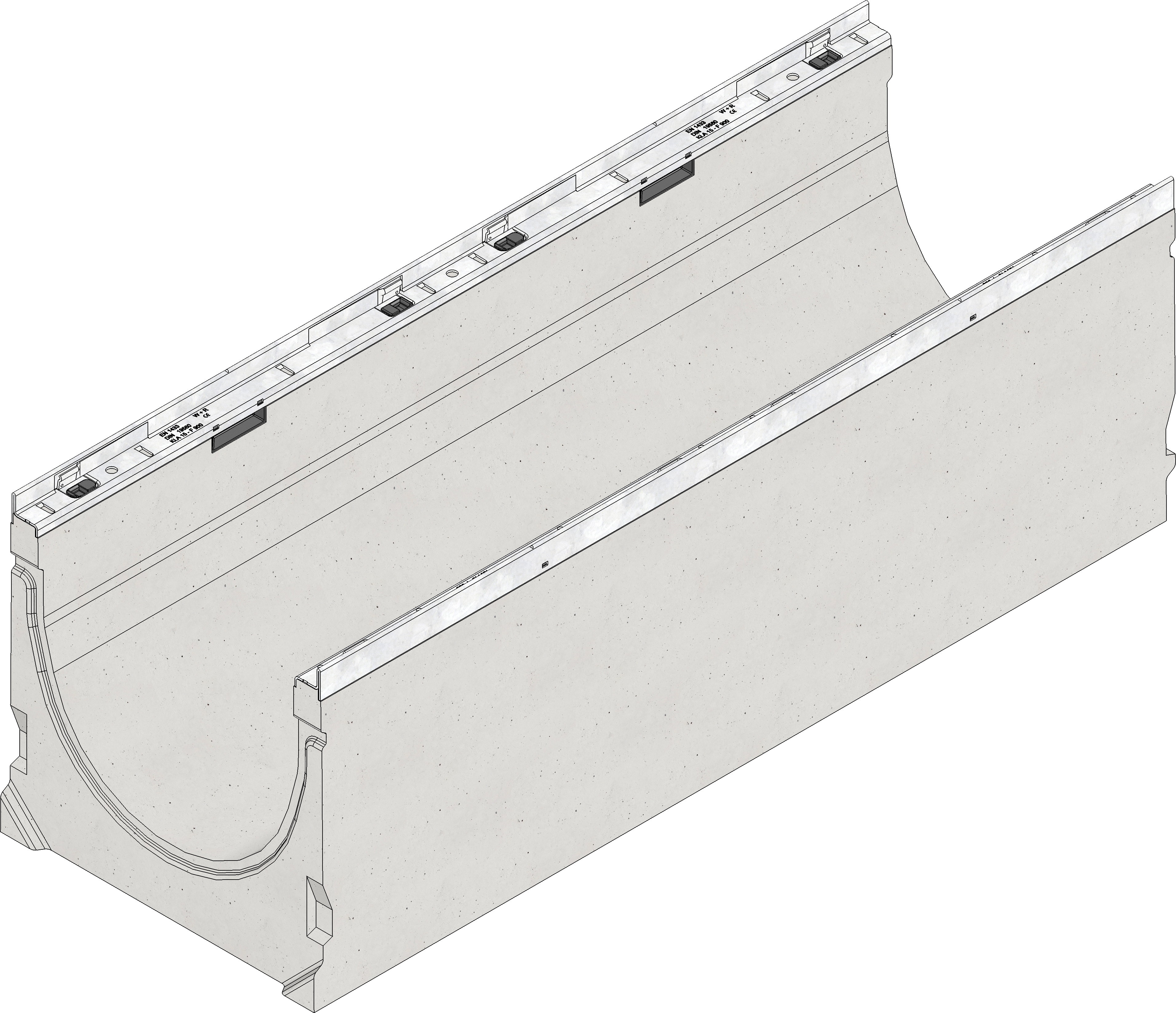

Product image
Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
14040
Length
1000 mm
Width
360 mm
Height
340 mm
Weight
122.60 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
300
Internal channel cross-section
638 cm²
Fall
-
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX KS 300 Channel body type 010 with edge frames made of galvanised steel, 1 m
Product description
FASERFIX KS 300 type 010 - Channel body made of fibre-reinforced concrete, load class A 15 - E 600 according to EN 1433, CE compliant, with edge frames made of galvanised steel and boltless quick-locking system SIDE-LOCK for quick and easy installation of the grating, additional locking mechanism applicable, 8-fold locking, with sealing groove, LxWxH 1000x360x340 mm, item no. 14040
Packaging unit
9
Tender Texts
Installation example
Concrete class B 125 - C 250,
Concrete class D 400 - E 600,
Cemented floor class A 15 - C 250, Flat channel
Asphalt class A 15 - D 400, with curb
Concrete class A 15 - D 400, with curb
Pavement class A 15 - C 250,
Asphalt class A 15 - D 400,
Pavement class D 400,
Pavement class D 400,
Concrete class E 600, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class A 15 - D 400, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
Concrete class C 250 - D 400, as double strand
Installation instructions
