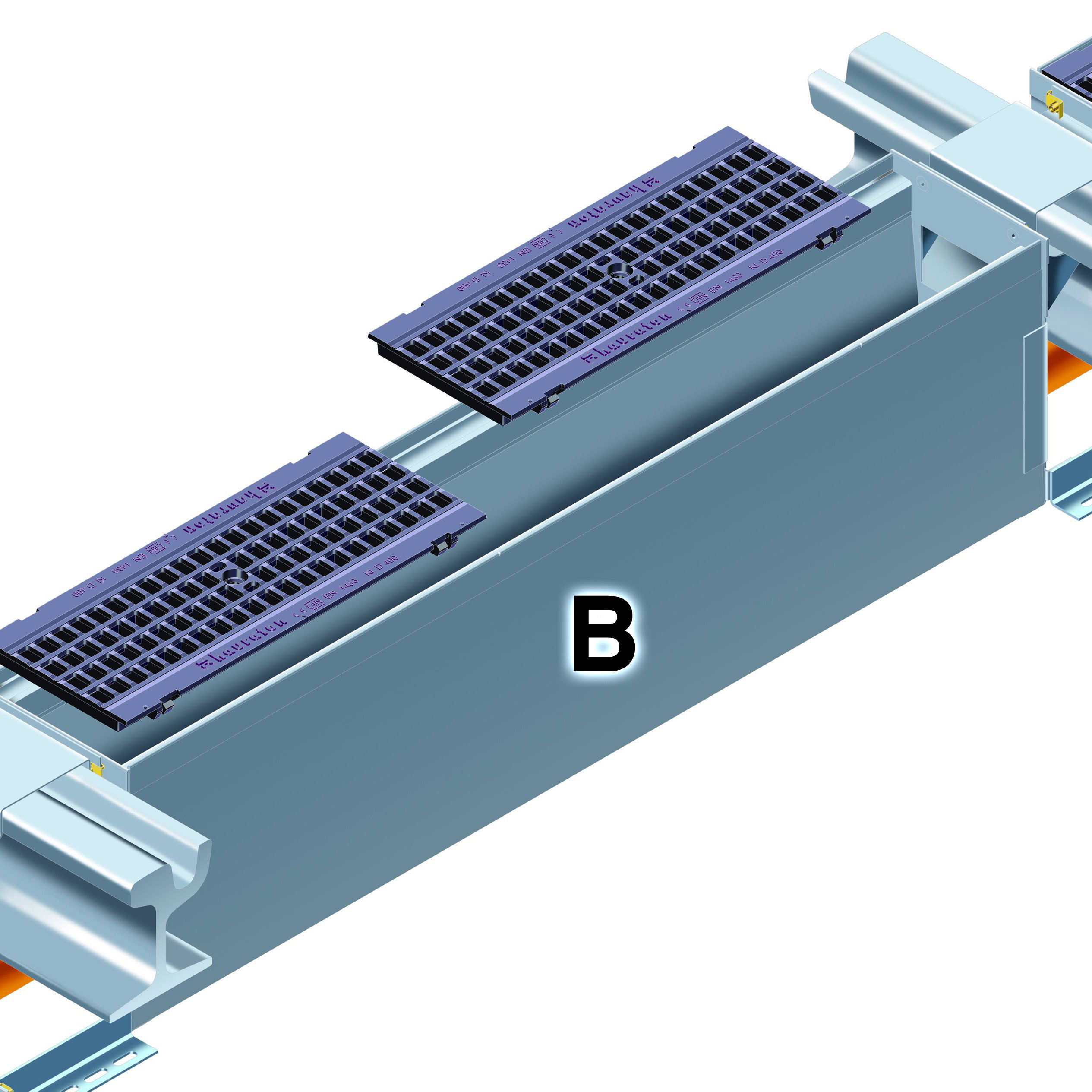

Product image
Data Sheet
Technical information and metrics
Article No.
15001
Length
1000 mm
Width
210 mm
Height
315 mm
Weight
140.80 kg
Nominal width | System size
150
Edge frame height
20 mm
Clear channel cross-section
324 cm²
Inlet cross-section
716 cm²/m
Grating inlay depth
20 mm
Grating design
GUGI - ductile iron - mesh grating
Grating opening type
Mesh width
Inlet opening
15 x 25 mm
Material of channel body
fibre-reinforced concrete
Material of grating
Ductile iron GJS 500-7
Material of edge frame
strip galvanized steel
Material of locking mechanism
reinforced Polyamide
Material of screw
Steel black galvanised
Sales text
FASERFIX TRAM Rail drainage channel 150, module B
Product description
FASERFIX TRAM Rail drainage channel 150, module B, item no. 15001
Brochure text
Module B
Tender Texts
Installation example
Kl. C 250 - E 600 - Concrete
Installation instructions
