Article No. 33282
FASERFIX TRAFFIC TRAM, point drainage
TRAM BOX Sump unit with GUGI-ductile iron mesh grating MS 15/25 mm, KTL-coated, with vertical outlet DN/OD 200, 0.317 m

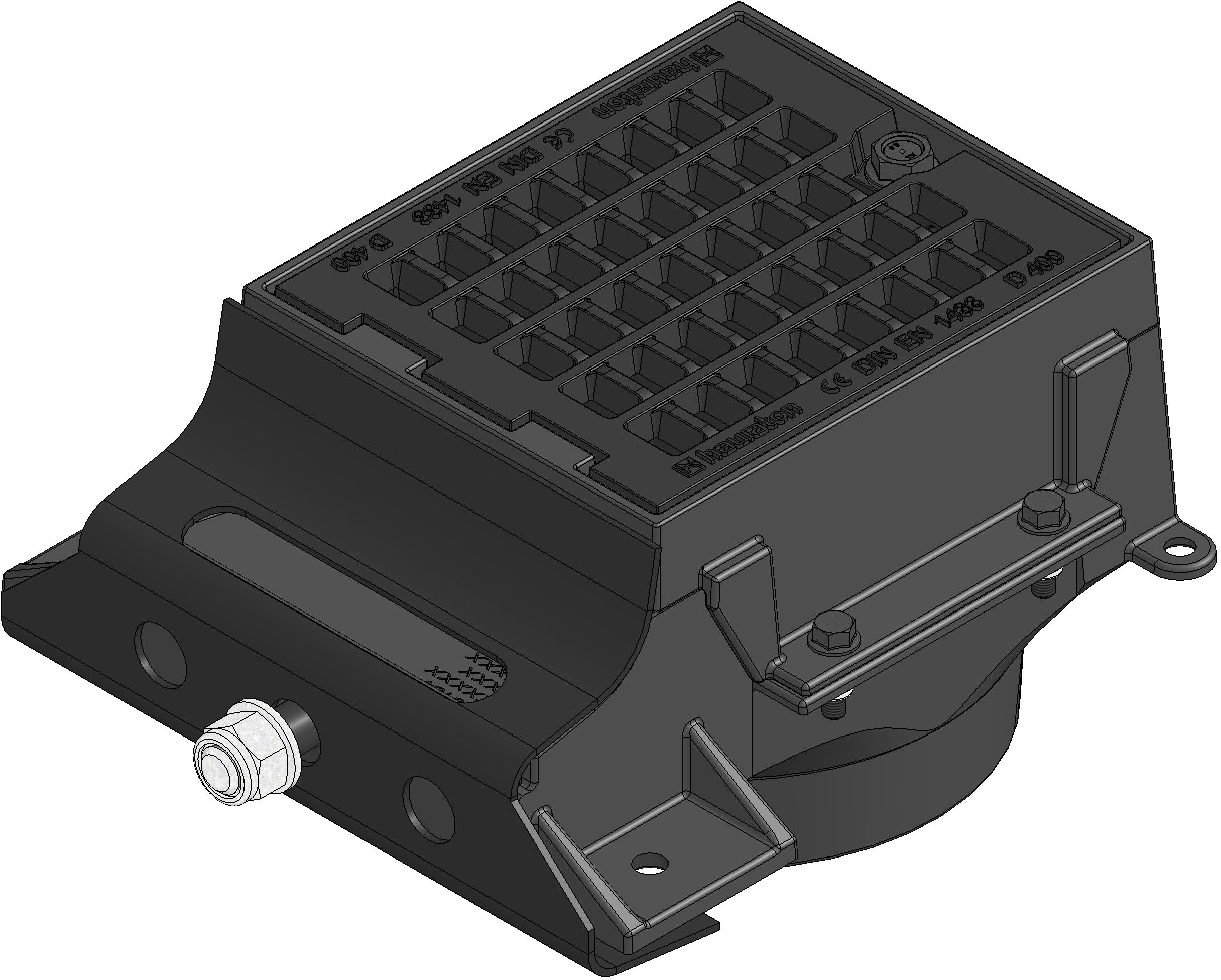

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
33282
Length
314 mm
Width
300 mm
Height
155 mm
Weight
15.60 kg
Material
Ductile iron GJS 500-7, Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, Stainless steel (V2A), Stainless steel 1.4301, Steel 8.8 zinc-laminated black, Steel black galvanised
Inlet opening
15 x 25 mm
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
TRAM BOX Sump unit with GUGI-ductile iron mesh grating MS 15/25 mm, KTL-coated, cl. D 400, with vertical outlet DN/OD 200, 0.317 m
Product description
TRAM BOX Sump unit with GUGI-ductile iron mesh grating MS 15/25 mm, KTL-coated, cl. D 400, with vertical outlet DN/OD 200, 0.317 m, item no. 33282
Packaging unit
16
Tender Texts
Installation instructions
Installation example
Asphalt class A 15 - D 400,
Concrete class A 15 - D 400,
