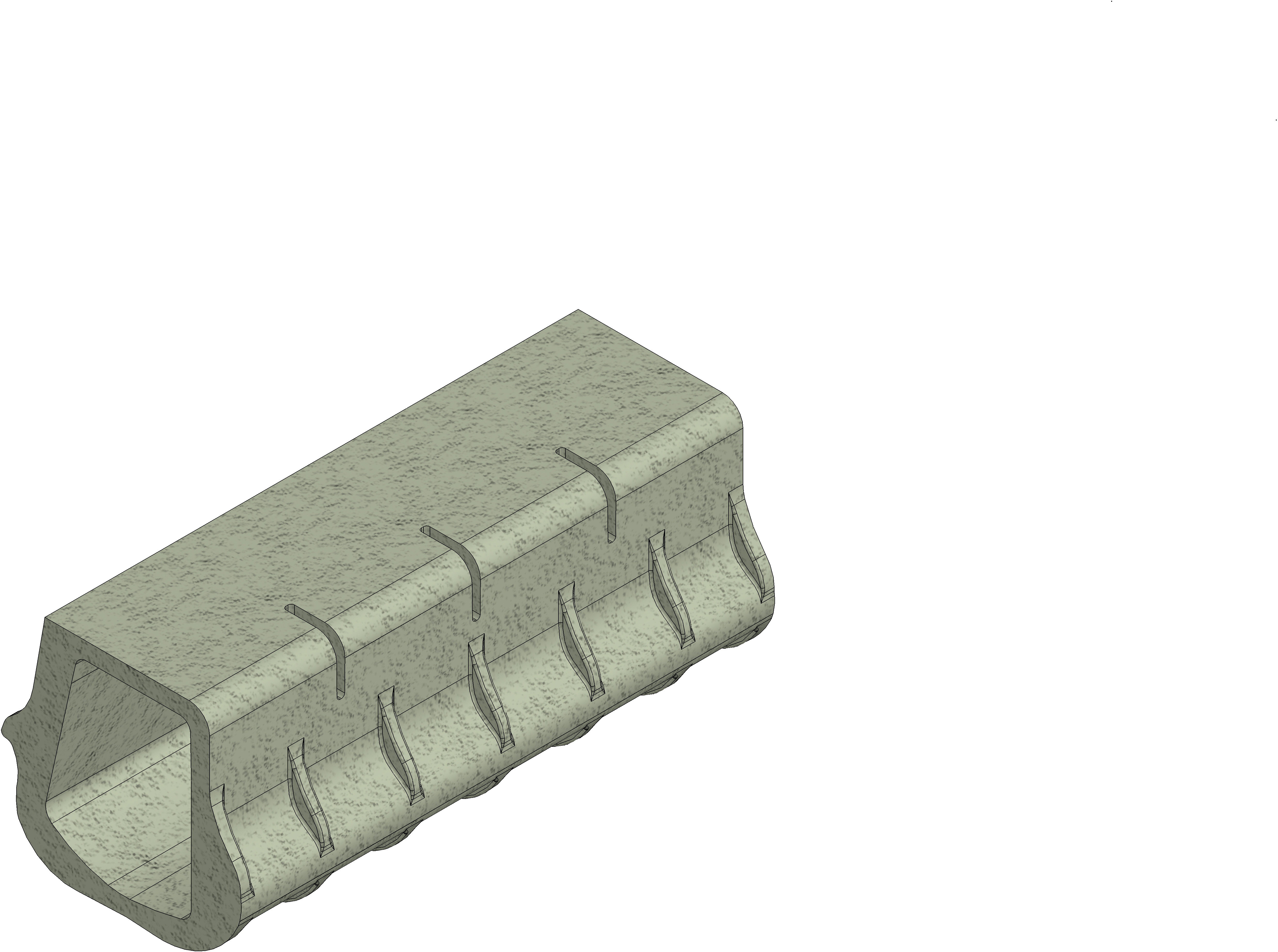

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10193
Length
500 mm
Width
215 mm
Height
205 mm
Weight
4.80 kg
Material
reinforced Polypropylene
Height of angle housing
-
Intake cross-section
29.0 cm²/m
Nominal size
110
Internal channel cross-section
158 cm²
Fall
-
Type according to DIN EN 1433
M
Regulations
EN 1433
Sales text
KERBFIX Drainable Centre Stone, cl. D 400, 0.5 m
Product description
KERBFIX 305 - Drainable Centre Stone, made of recycled PP, grey, according to EN 1433, load class A 15 - D 400, LxWxH 500x215x205 mm , item no. 10193
Packaging unit
-
national declaration of performance
Nation DoP
Tender Texts
Installation example
Asphalt class A 15 - D 400,
Concrete class A 15 - D 400,
