Article No. 10188
Half Battered Kerb
Half Battered Rodding Access/Outlet Unit

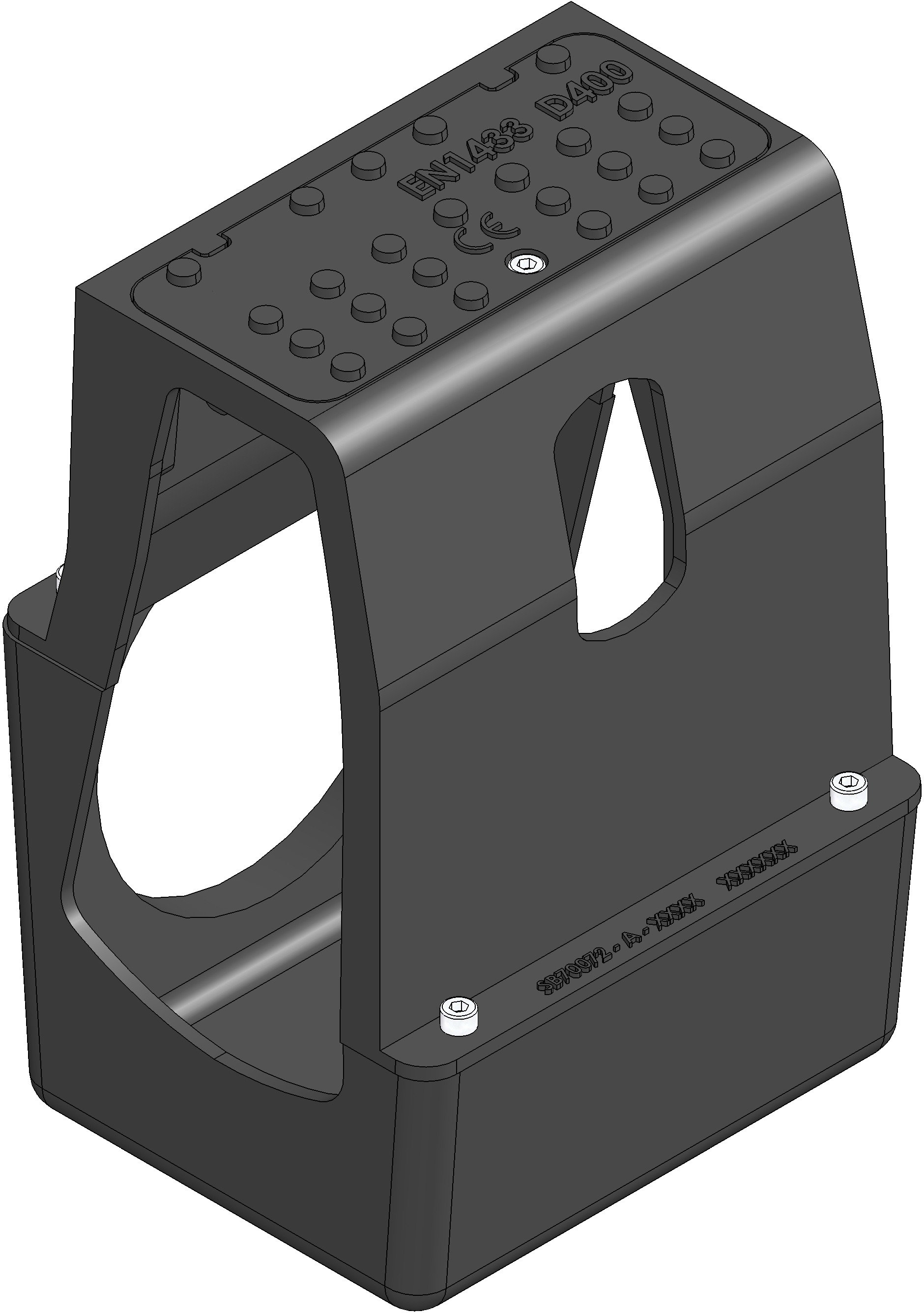

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10188
Length
250 mm
Width
215 mm
Height
360 mm
Weight
19.00 kg
Material
Ductile iron GJS 500-7
Nominal size
110
Regulations
EN 1433
Sales text
KERBFIX Half Battered Rodding Access/Outlet Unit, D 400, 0.25 m
Product description
KERBFIX - Half Battered Rodding Access/Outlet Unit, made of ductile iron, with ductile iron cover, with lateral pipe connection possibility DN/OD 162 mm, load class A 15 - D 400, according to EN 1433, LxWxH 250x215x360 mm, item no. 10188
Packaging unit
-
