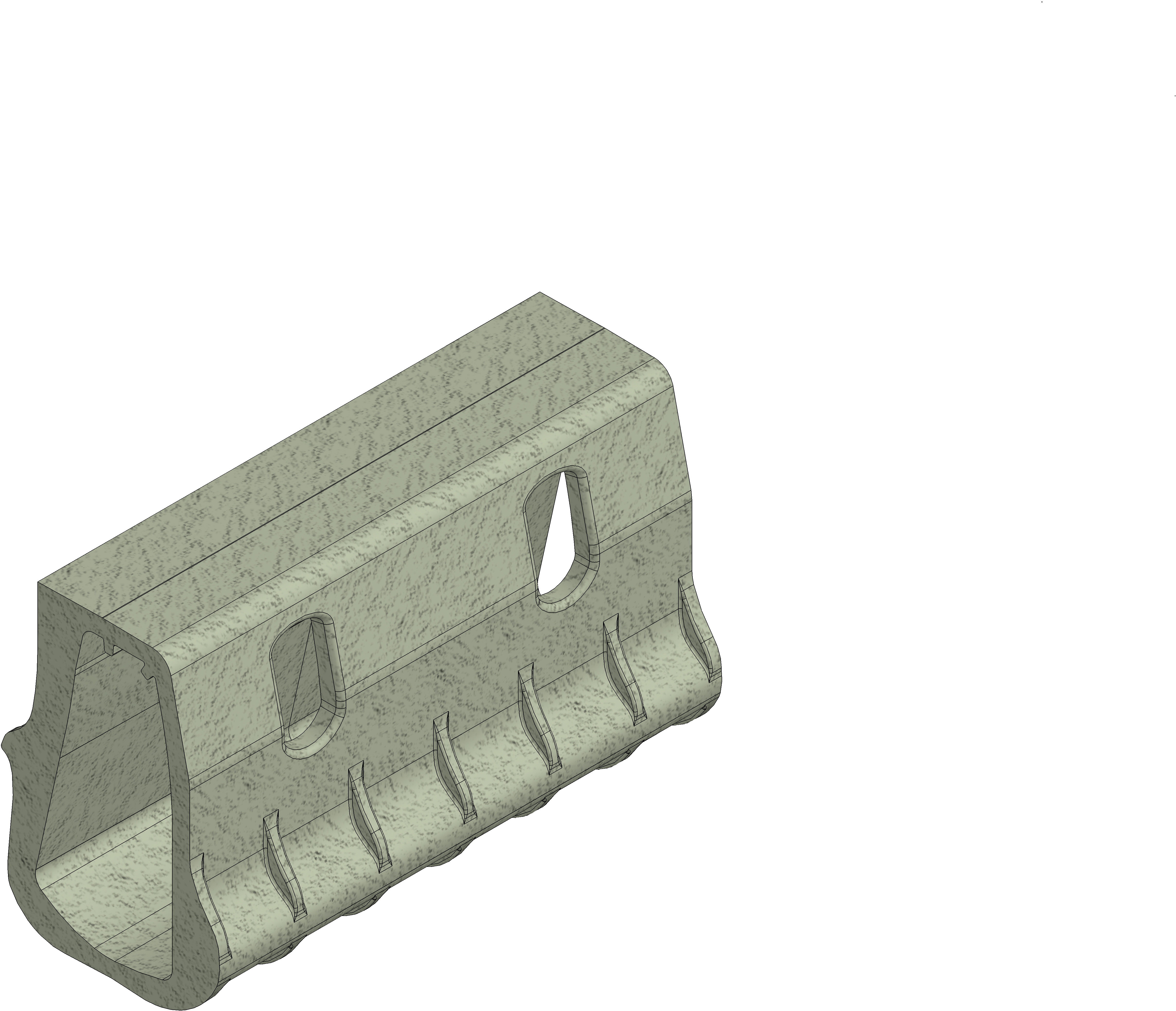

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10185
Length
500 mm
Width
215 mm
Height
305 mm
Weight
7.00 kg
Material
reinforced Polypropylene
Height of angle housing
-
Intake cross-section
184.0 cm²/m
Nominal size
110
Internal channel cross-section
212 cm²
Fall
-
Type according to DIN EN 1433
M
Regulations
EN 1433
Sales text
KERBFIX Half Battered Standard Unit, cl. D 400, 0.5 m
Product description
KERBFIX - Half Battered Standard Unit with integrated drainage, made of recycled PP, grey, according to EN 1433, with 2 side openings as water inlets, load class from A 15 up to D 400, LxWxH 500x215x305 mm, item no. 10185
Packaging unit
44
national declaration of performance
Nation DoP
Tender Texts
Installation example
Asphalt class A 15 - D 400,
Concrete class A 15 - D 400,
