Article No. 48633

RECYFIX PRO 100, class D 400

Type 01 with longitudinal ductile iron grating SW 9 mm, galvanised, locked, 0.5 m

Project request Tender Texts

Fragen?

Unser erfahrenes Planungsteam hilft Ihnen gerne.

Fragen?

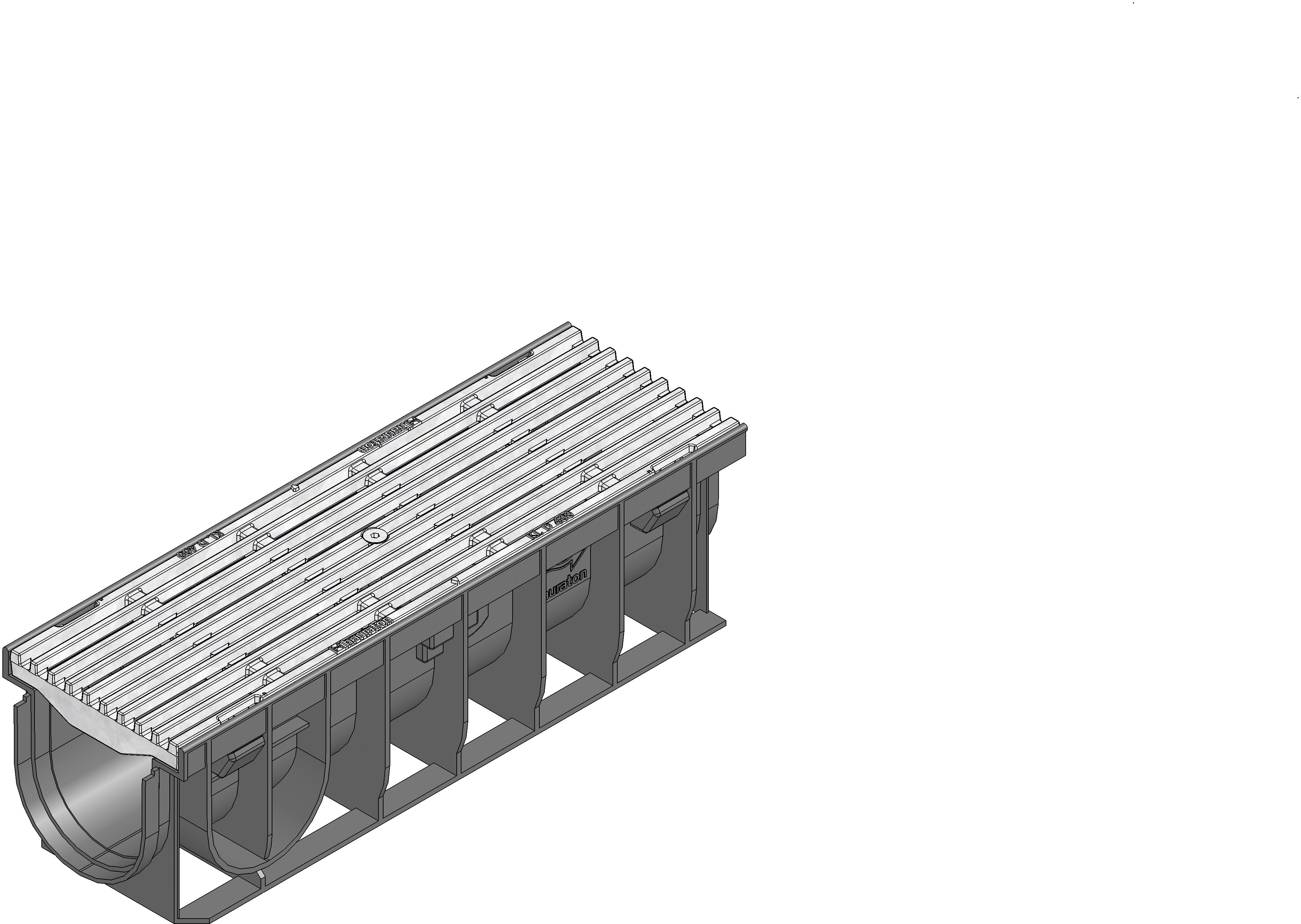

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Technical information and metrics
Article No.
48633
Length
500 mm
Width
160 mm
Height
150 mm
Inlay depth
20 mm
Weight
5.22 kg
Material
Ductile iron GJS 500-7 galvanised, Galvanised steel, recycled polypropylene, RECYFIX Material (recycled PA)
Intake cross-section
528.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
Ductile iron GJS 500-7 galvanised
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 100 Channel type 01 with integrated edge frames, with longitudinal ductile iron grating bar distance 9 mm, galvanised, cl. D 400, locked, 0.5 m
Product description
RECYFIX PRO 100 type 01 - Channel body made of recycled polypropylene, with integrated edge frames, with longitudinal ductile iron grating bar distance 9 mm, made of spheroidal ductile iron EN-GJS-500-7, galvanised, with longitudinal slide protection and locking, load class A 15 - D 400 according to EN 1433, LxWxH 500x160x150 mm, item no. 48633
Packaging unit
98
