Article No. 47232

RECYFIX PRO 200, class D 400

Type 115 with G-TEC Ductile iron grating, SW 9 mm, KTL- coated, locked, 1.0 m

Project request Tender Texts

Fragen?

Unser erfahrenes Planungsteam hilft Ihnen gerne.

Fragen?

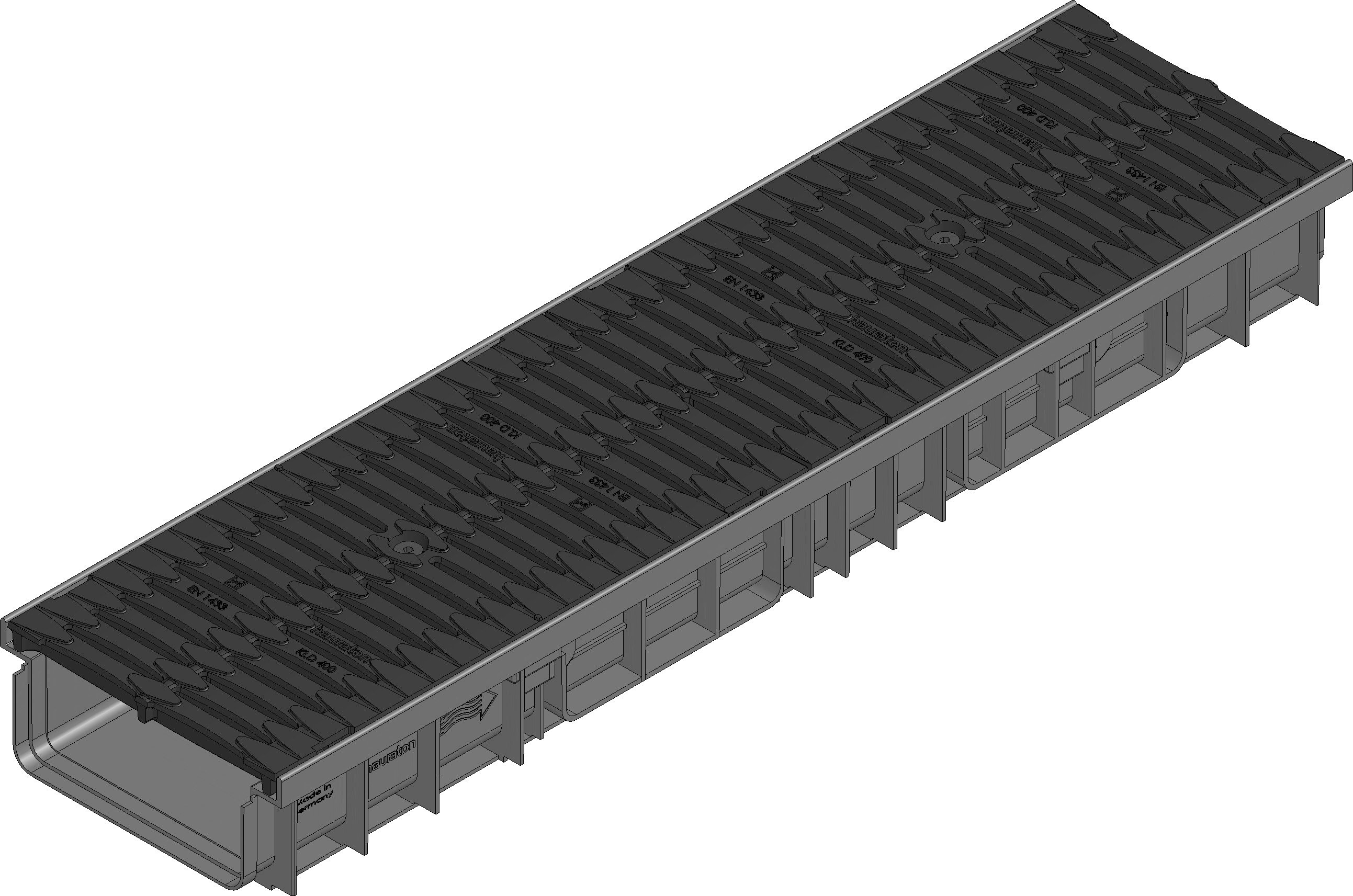

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Top view

Technical information and metrics
Article No.
47232
Length
1000 mm
Width
262 mm
Height
115 mm
Inlay depth
20 mm
Weight
19.30 kg
Material
Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, recycled polypropylene, Steel black galvanised
Intake cross-section
596.0 cm²/m
Nominal size
200
Internal channel cross-section
150 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, AS 4586, DIN 19580
Sales text
RECYFIX PRO 200 Channel type 115 with integrated edge frames, with G-Tec-ductile iron grating 2x SW 85/9 mm, KTL-coated, cl. D 400, locked, 1 m
Product description
RECYFIX PRO 200 type 115 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 75/110, with G-TEC ductile iron grating 2x SW 85/9 mm, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection and locking, load class A 15 - D 400 according to EN 1433, LxWxH 1000x262x115 mm, item no. 47232
Packaging unit
40
