Article No. 40296
RECYFIX STANDARD 100, trafficable
Type 010 with slotted grating SW 80/9 mm, galvanised, locked, 1.0 m

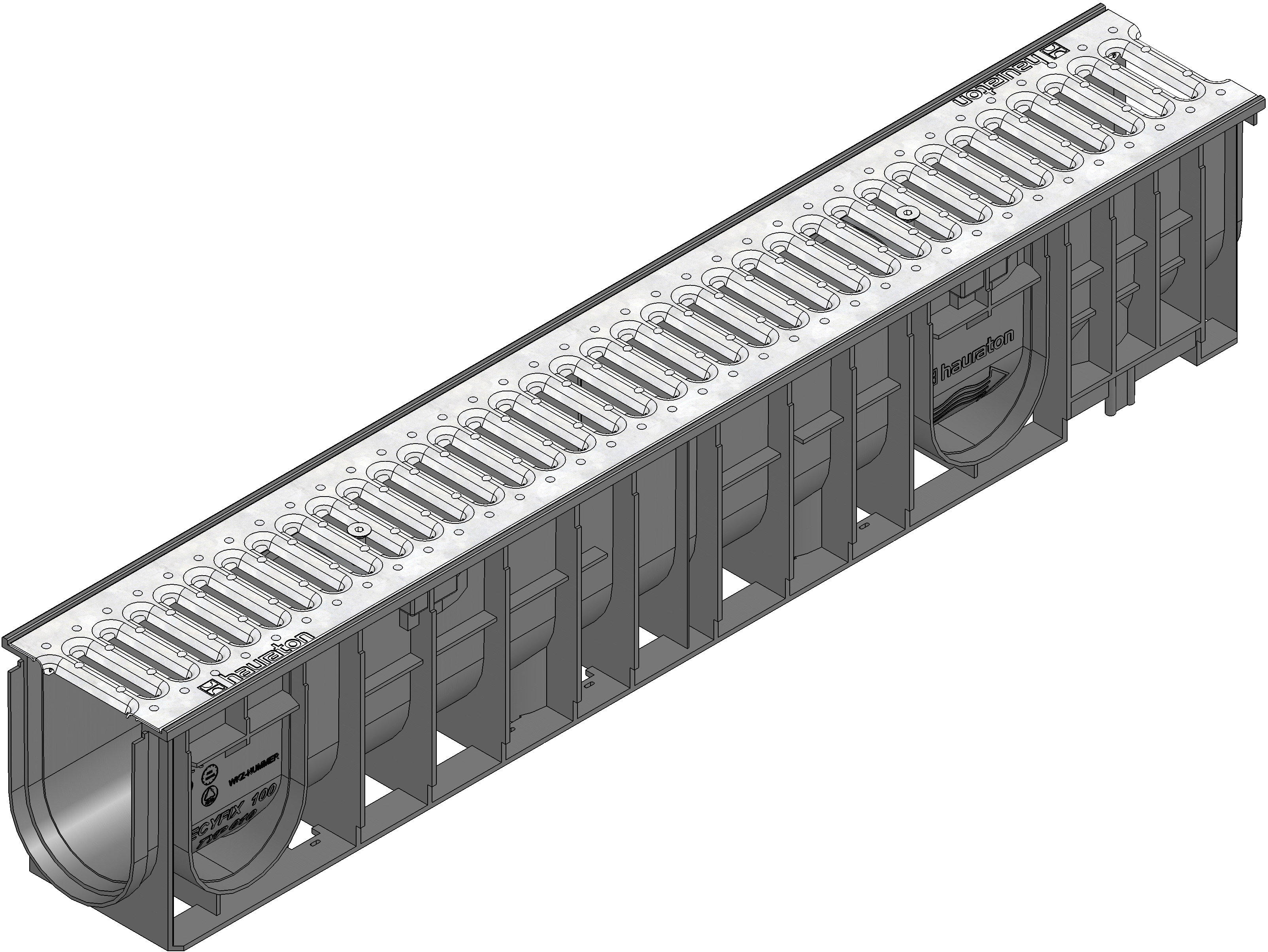

Product image
Technical drawing
Drawing
Drawing (CAD)
Top view
Technical information and metrics
Article No.
40296
Length
1000
Width
150 mm
Height
185
Inlay depth
3 mm
Weight
4.58 kg
Material
Galvanised steel, recycled polypropylene, RECYFIX Material (recycled PA), strip galvanized steel
Intake cross-section
266.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 100 Channel type 010 with slotted grating SW 80/9 mm, galvanised, trafficable, locked, 1 m
Product description
RECYFIX STANDARD 100 type 010 - Channel body made of recycled polypropylene, according to EN 1433, with vertical connection possibility DN/OD 110, with slotted grating SW 80/9 mm, made of galvanised steel, overlying, trafficable, with locking LxWxH 1000x150x185 mm, item no. 40296
Packaging unit
42
Tender Texts
Installation example
Pavement class A 15 - B 125, Type 60, Type 80
Cemented floor class A 15 - C 250,
Pavement class C 250, Type 60, Type 80
Asphalt class A 15 - B 125, channel height ≥ 134 mm
Asphalt class C 250, channel height ≥ 134 mm
Pavement class A 15 - B 125, channel height ≥ 134 mm
Concrete class C 250, channel height ≥ 134 mm
Pavement class C 250, channel height ≥ 134 mm
Installation instructions
