Article No. 32106
SERVICE CHANNELS RECYFIX STANDARD 100 made of polypropylene with polypropylene frame, class A 15
Bulp plate, closed, galvanised, 1.0 m

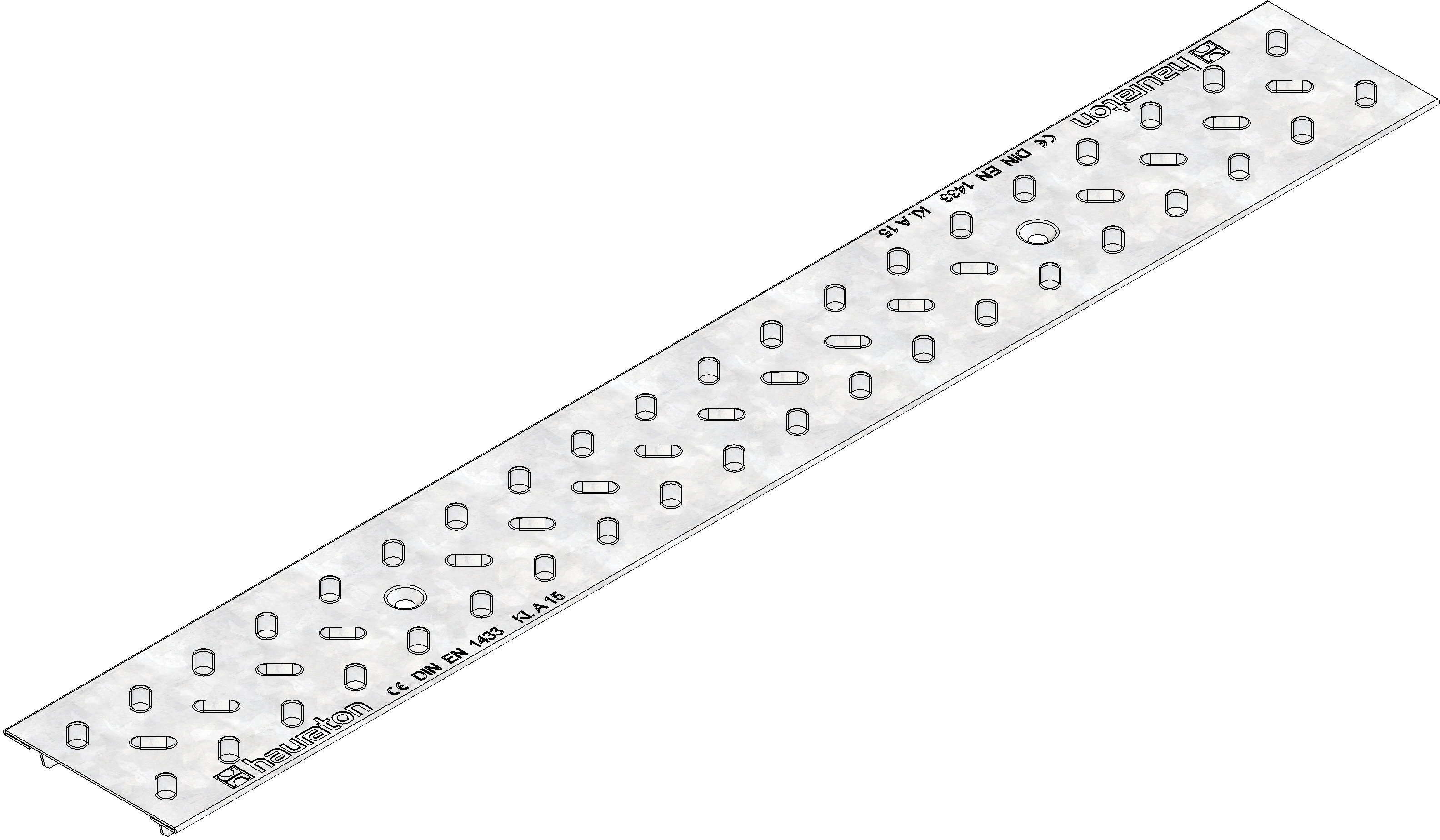

Product image

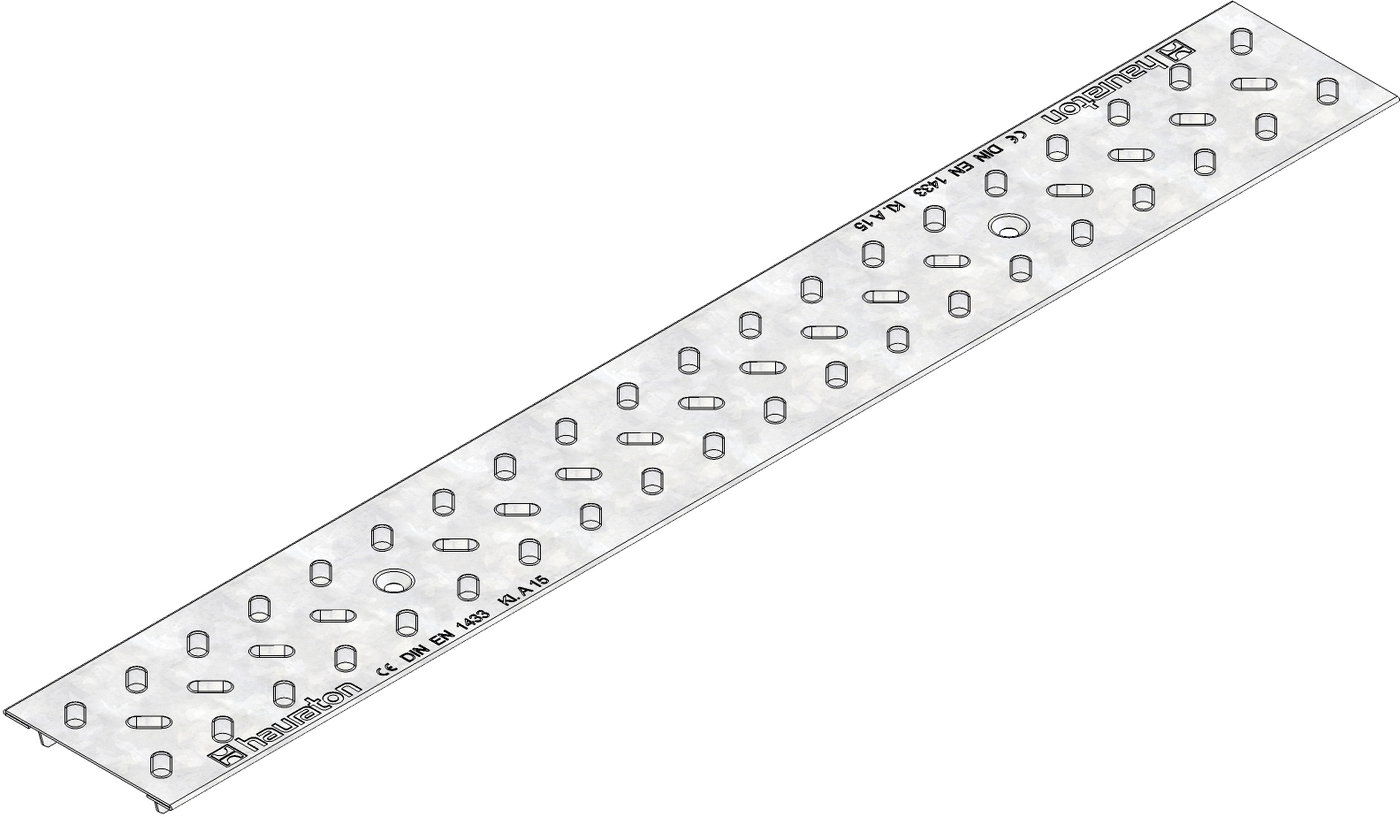

Top view

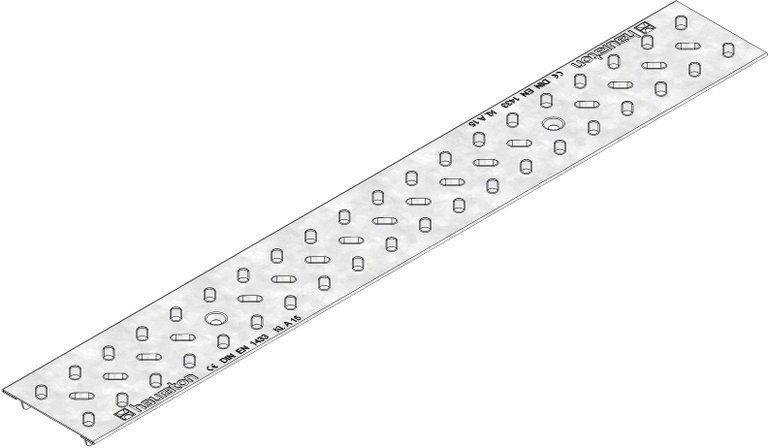

Technical drawing
Drawing (CAD)
Technical information and metrics
Article No.
32106
Length
1000 mm
Width
137 mm
Height
25 mm
Inlay depth
4 mm
Weight
3.10 kg
Material
strip galvanized steel
Intake cross-section
0.0 cm²/m
Nominal size
100
Inlet opening
0 mm
Fixing type
Loose blatant, Locking handle
Material grating
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
Bulb plate closed, galvanised, cl. A 15, MEDIA CHANNEL RECYFIX STANDARD 100, 1 m
Product description
MEDIA CHANNEL RECYFIX STANDARD 100 - Bulb plate, closed, galvanised, load class A 15 according to EN 1433, length 1000 mm, item no. 32106
Packaging unit
179
