Article No. 7733
SPORTFIX CLEAN particle trap element
incl. 30 l filter substrate CARBOTEC

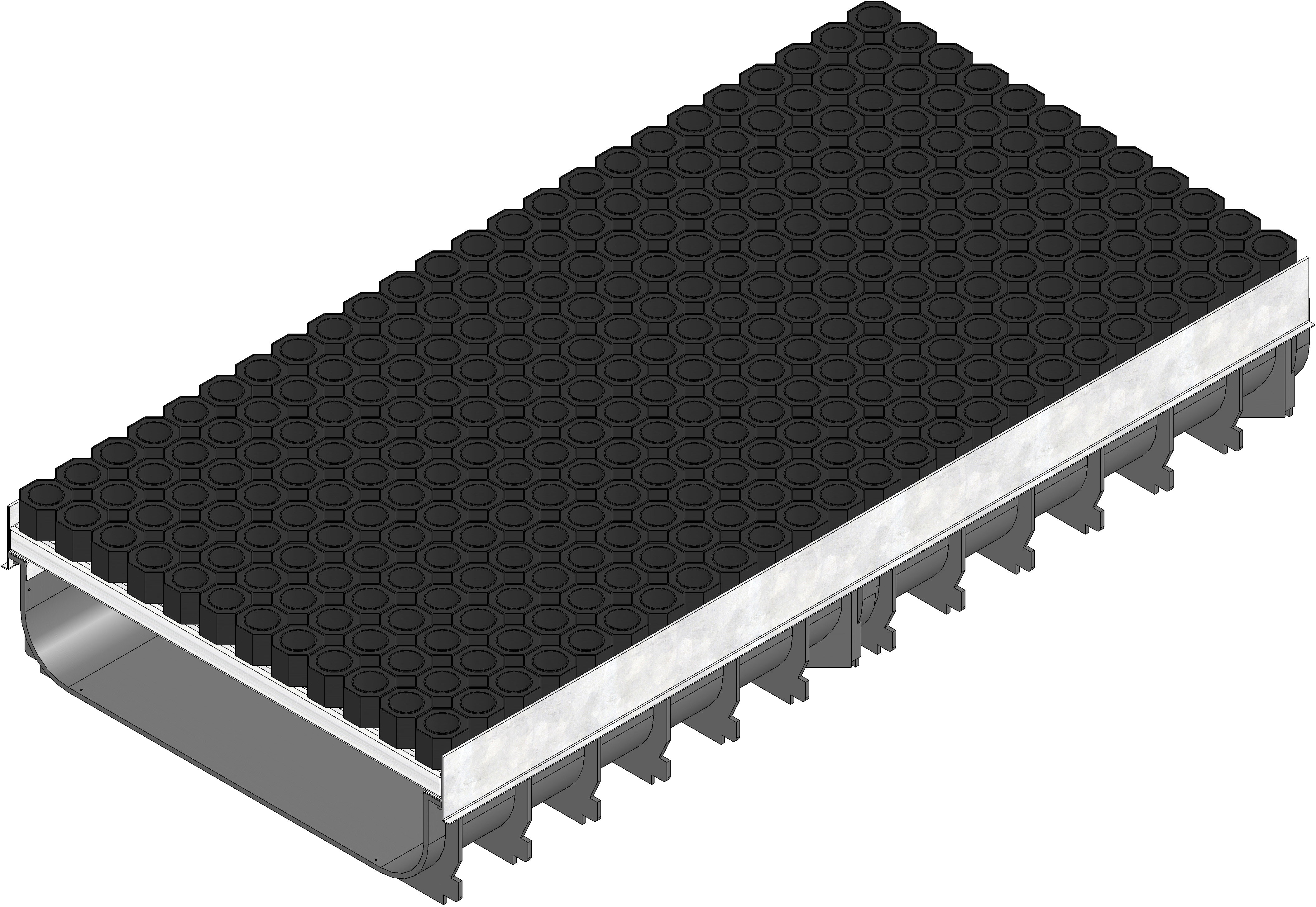

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
7733
Length
1000 mm
Width
500 mm
Height
178 mm
Weight
19.30 kg
Material
EPDM, hot-dip galvanised steel, recycled polypropylene, strip galvanized steel
Intake cross-section
0.0 cm²/m
Nominal size
460
Type according to DIN EN 1433
not specified
Channel material
recycled polypropylene
Material grating
hot-dip galvanised steel
Sales text
SPORTFIX CLEAN 460 - Particle trap element, incl. 30 L filter substrate CARBOTEC, 1 m
Product description
SPORTFIX CLEAN 460 - Particle trap element made of recycled polypropylene, black, with mesh grating MS 30/30 mm, galvanised, with rubber mat, pedestrian-accessible, incl. 30 L filter substrate CARBOTEC, LxWxH 1000 (2x500)x500x178 mm, item no. 7733
Packaging unit
-
Tender Texts
Installation example
running track / artificial turf class A 15,
Pavement class A 15, double-breasted
Pavement class A 15, double-breasted
