Article No. 10825
sump unit
for NW 100, with edge frames made of KTL-coated steel and silt bucket made of recycled PP, with access cover made of steel, KTL-coated, with EPDM inserts, brick-red, 0.5 m

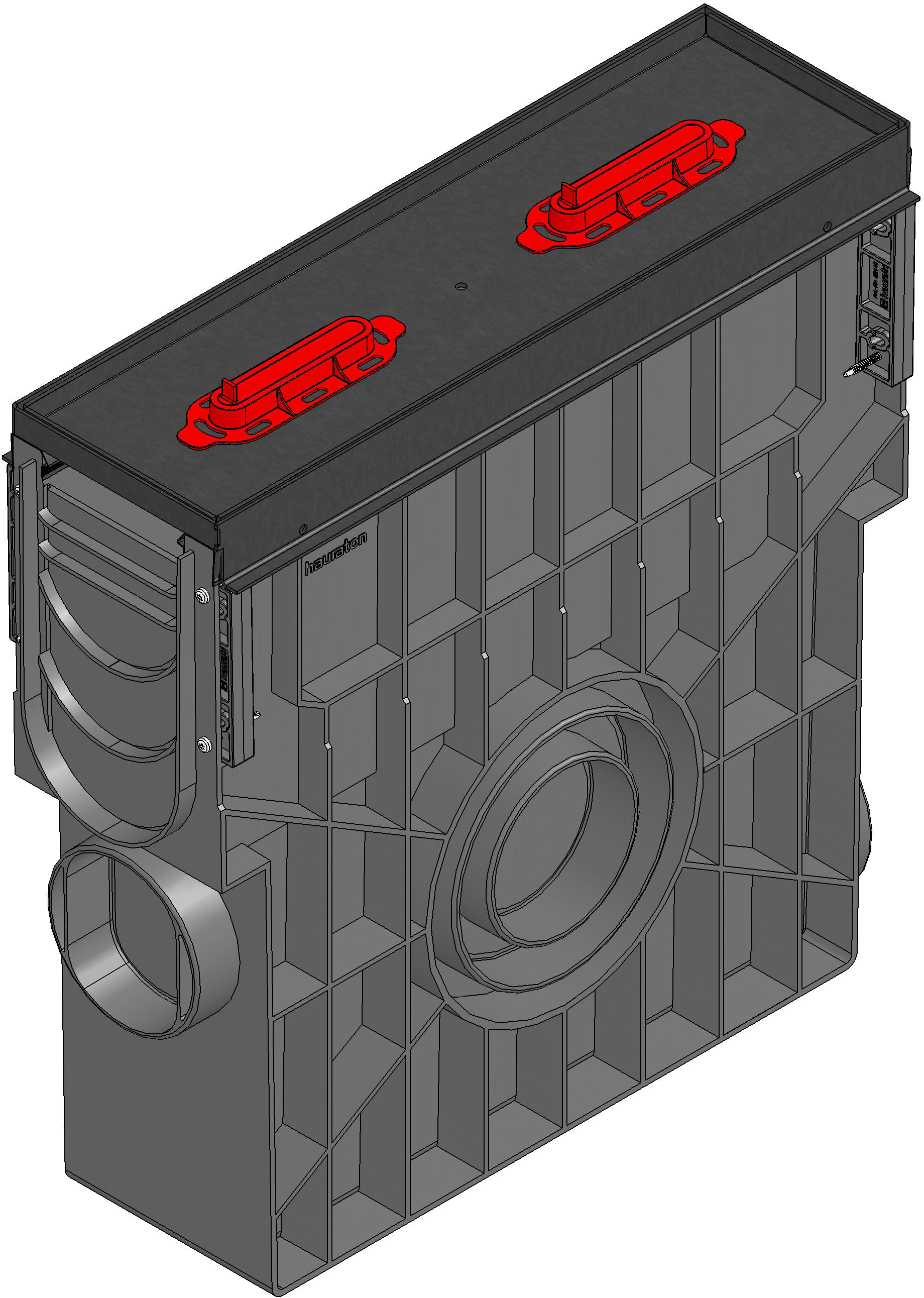

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
10825
Length
500 mm
Width
149 mm
Height
501 mm
Weight
6.19 kg
Nominal size
100
Sales text
Sump unit with edge frames made of KTL-coated steel, with access cover made of steel, KTL-coated, with EPDM inserts, brick-red, with silt bucket made of recycled PP, SPORTFIX Slotted channel 100, 0.5 m
Product description
SPORTFIX Slotted channel 100 - Sump unit made of recycled polypropylene, black, with access cover, KTL-coated, with EPDM inserts, brick-red, 4-sided connection possibility (on front sides DN/OD 110, on the sides DN/OD 110/160), with silt bucket made of recycled polypropylene, LxWxH 500x149x501 mm, item no. 10825
Packaging unit
28
