Article No. 40038
sump unit
for NW 150, with silt bucket made of recycled PP, with ductile iron grating SW 154/18 mm, black, class E 600, with 4-fold bolting, 0.5 m

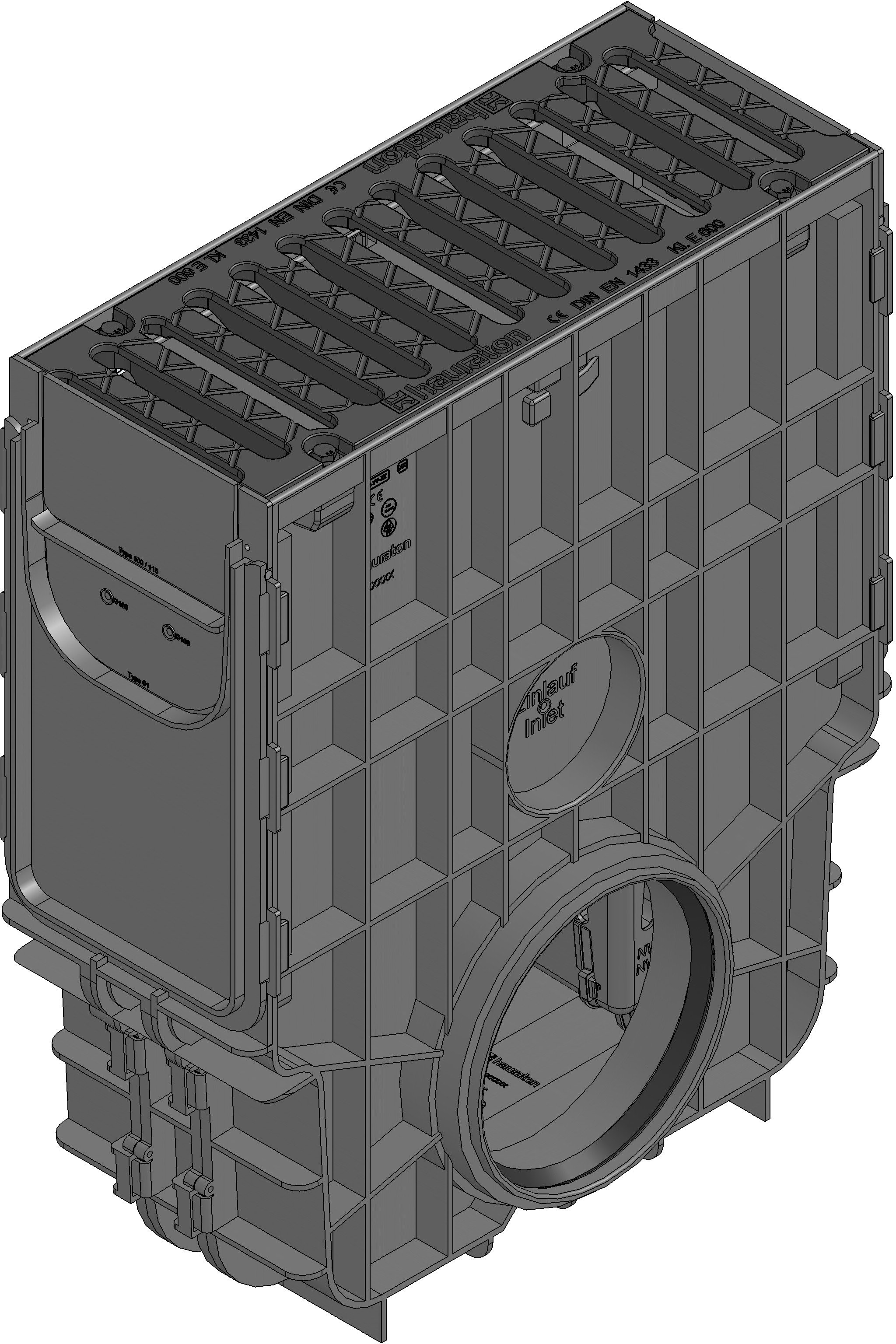

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
40038
Length
500 mm
Width
212 mm
Height
643 mm
Inlay depth
20 mm
Weight
13.19 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, Steel black galvanised
Intake cross-section
702.0 cm²/m
Nominal size
150
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with integrated edge frames, with ductile iron grating SW 154/18 mm, black, cl. E 600, with 4-fold bolting, with silt bucket made of recycled PP, with 2 end caps made of recycled PP, RECYFIX NC 150, 0.5 m
Product description
RECYFIX NC 150 - Sump unit made of recycled polypropylene, with integrated edge frame, on both sides preformed pipe connection element DN/OD 200, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX NC 150, with ductile iron grating SW 154/18 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, with 4-fold bolting, load class A 15 - E 600 according to EN 1433, LxWxH 500x212x643 mm, item no. 40038
Packaging unit
8
