Article No. 40069
sump unit
for NW 200, with silt bucket made of recycled PP, with ductile iron grating G-TEC 2x SW 85/9 mm, KTL-coated, class C 250, locked, 0.5 m

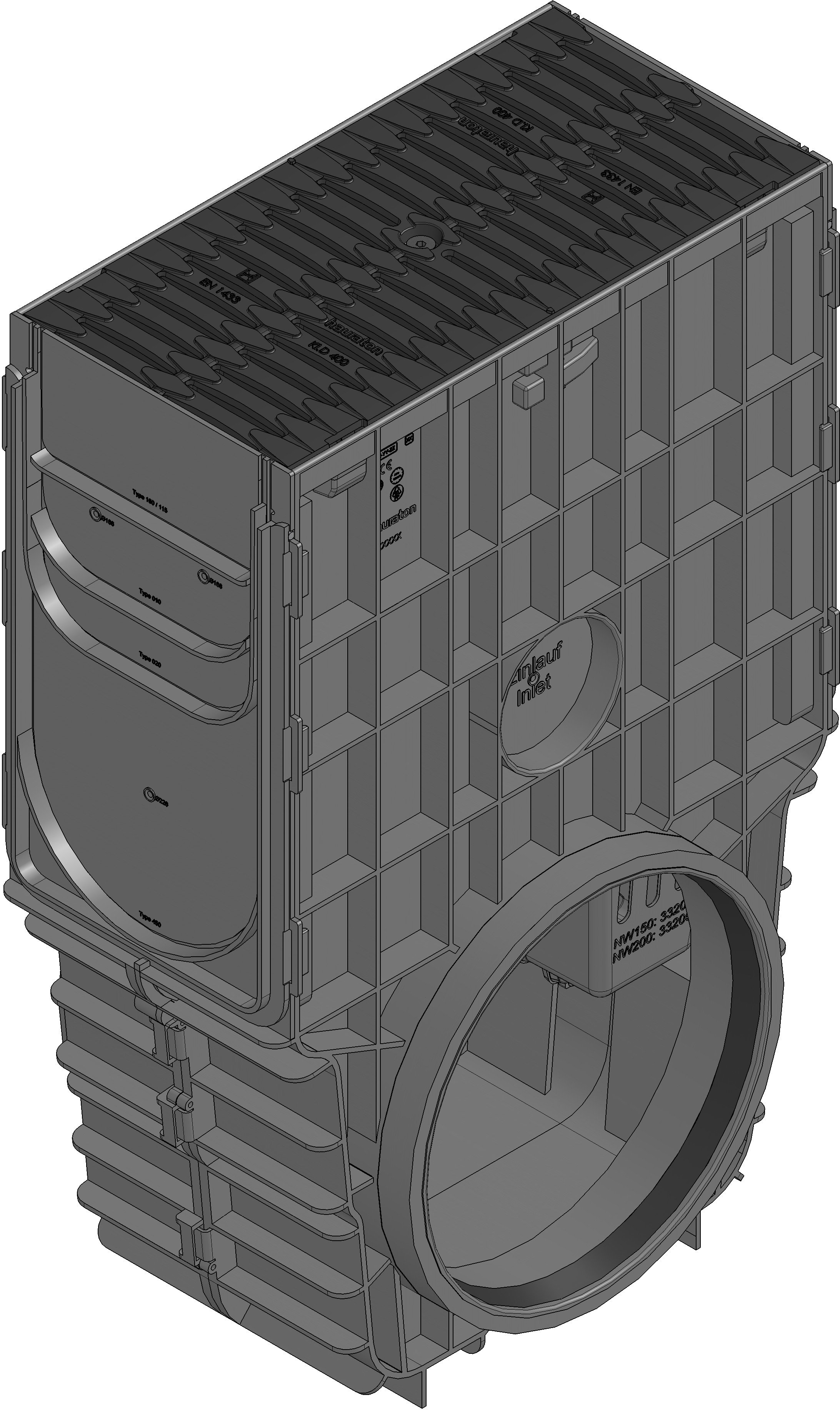

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
40069
Length
500 mm
Width
262 mm
Height
816 mm
Inlay depth
20 mm
Weight
17.27 kg
Material
Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, recycled polypropylene, Steel black galvanised
Intake cross-section
596.0 cm²/m
Nominal size
200
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with integrated edge frames, with 2 end caps made of recycled PP, with ductile iron grating G-TEC 2x SW 85/9 mm, KTL-coated, cl. C 250, locked, with silt bucket made of recycled PP, RECYFIX PRO 200, 0.5 m
Product description
RECYFIX PRO 200 - Sump unit made of recycled polypropylene, with integrated edge frames, on both sides preformed pipe connection element DN/OD 315, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PRO 200, with ductile iron grating G-TEC 2x SW 85/9 mm, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 500x262x816 mm, item no. 40069
Packaging unit
4
