Article No. 97398
DRAINFIX CLEAN FSU 300, class F 900
Ductile iron grating 2x SW 136/20 mm, black, 0.5 m

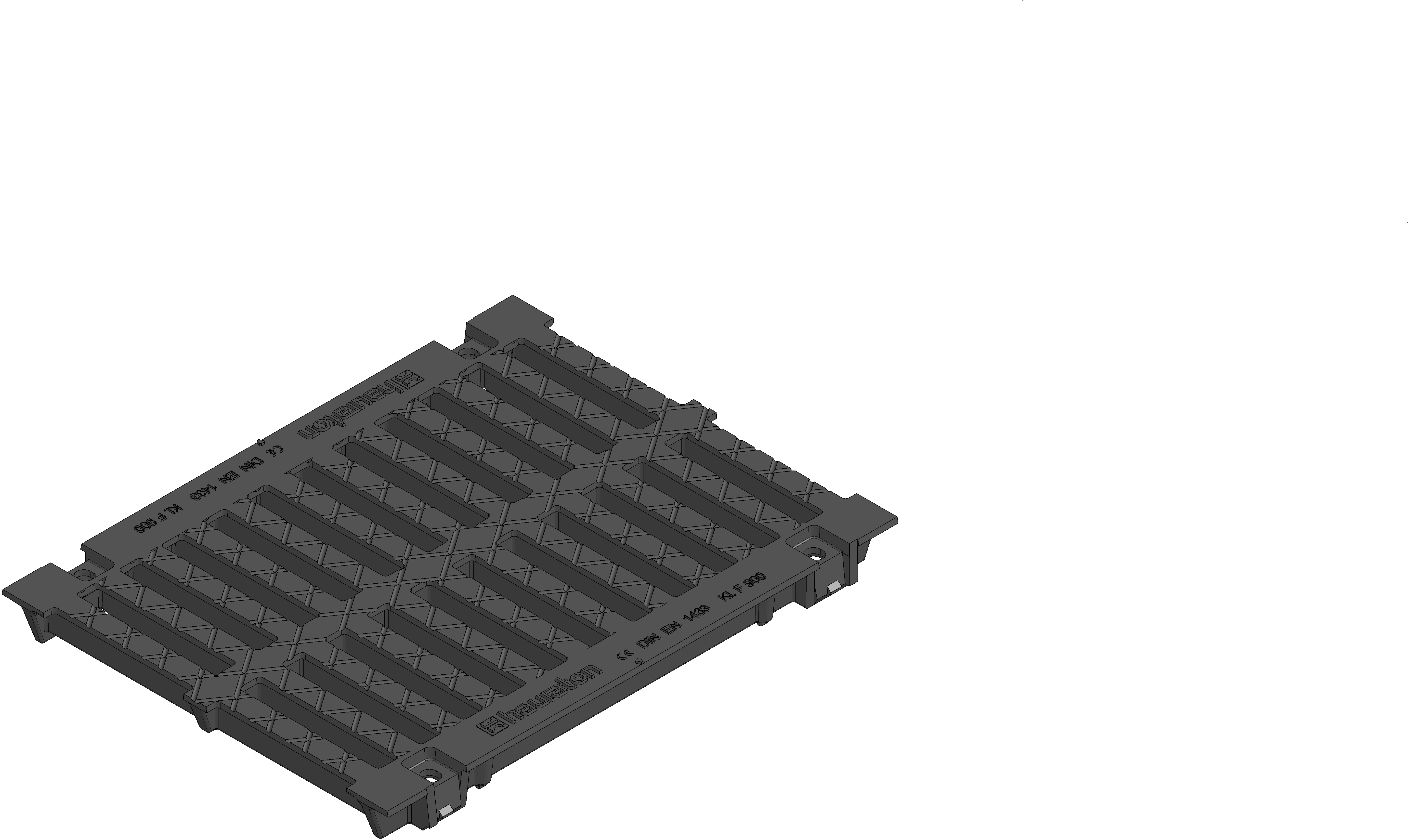

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
97398
Length
500 mm
Width
379 mm
Height
64 mm
Inlay depth
40 mm
Weight
22.37 kg
Material
Ductile iron GJS 500-7
Intake cross-section
1334.0 cm²/m
Nominal size
300
Inlet opening
136 x 20 mm
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating 2x SW 136/20 mm, black, cl. F 900, DRAINFIX CLEAN FSU 300, 0.5 m
Product description
DRAINFIX CLEAN FSU 300 - Ductile iron grating 2x SW 136/20 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, load class A 15 - F 900 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 97398
Packaging unit
-
national declaration of performance
Nation DoP
