Article No. 97498
DRAINFIX CLEAN FSU 400, class F 900
Ductile iron grating 3x SW 120/20 mm, black, 0.5 m

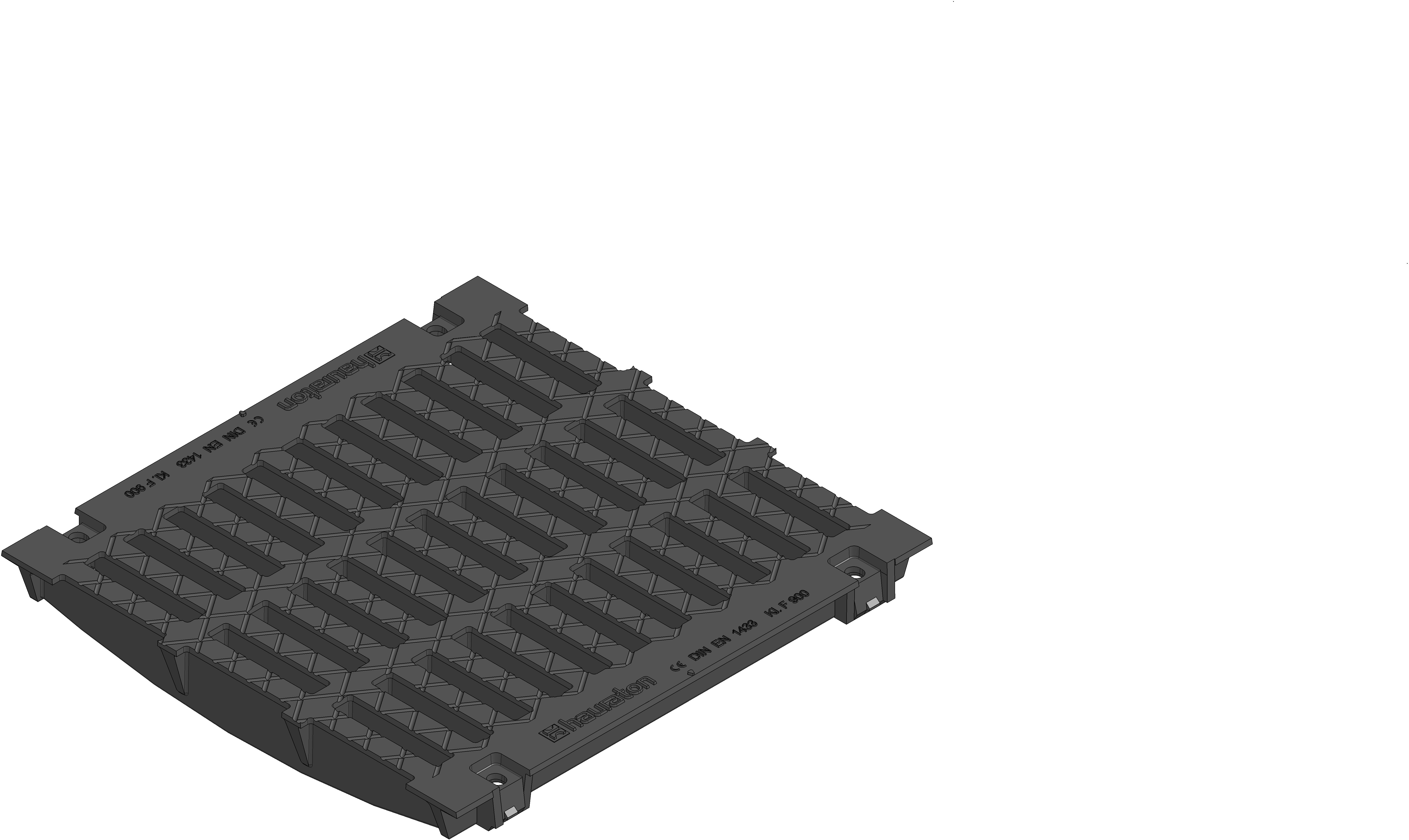

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
97498
Length
500 mm
Width
479 mm
Height
67 mm
Inlay depth
40 mm
Weight
31.73 kg
Material
Ductile iron GJS 500-7
Intake cross-section
1613.0 cm²/m
Nominal size
400
Inlet opening
120 x 20 mm
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating 3x SW 120/20 mm, black, cl. F 900, DRAINFIX CLEAN FSU 400, 0.5 m
Product description
DRAINFIX CLEAN FSU 400 - Ductile iron grating 3x SW 120/20 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, load class A 15 - F 900 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 97498
