Article No. 97548
DRAINFIX CLEAN FSU 500, class D 400
Ductile iron grating 3x SW 3140/18 mm, black, 0.5 m

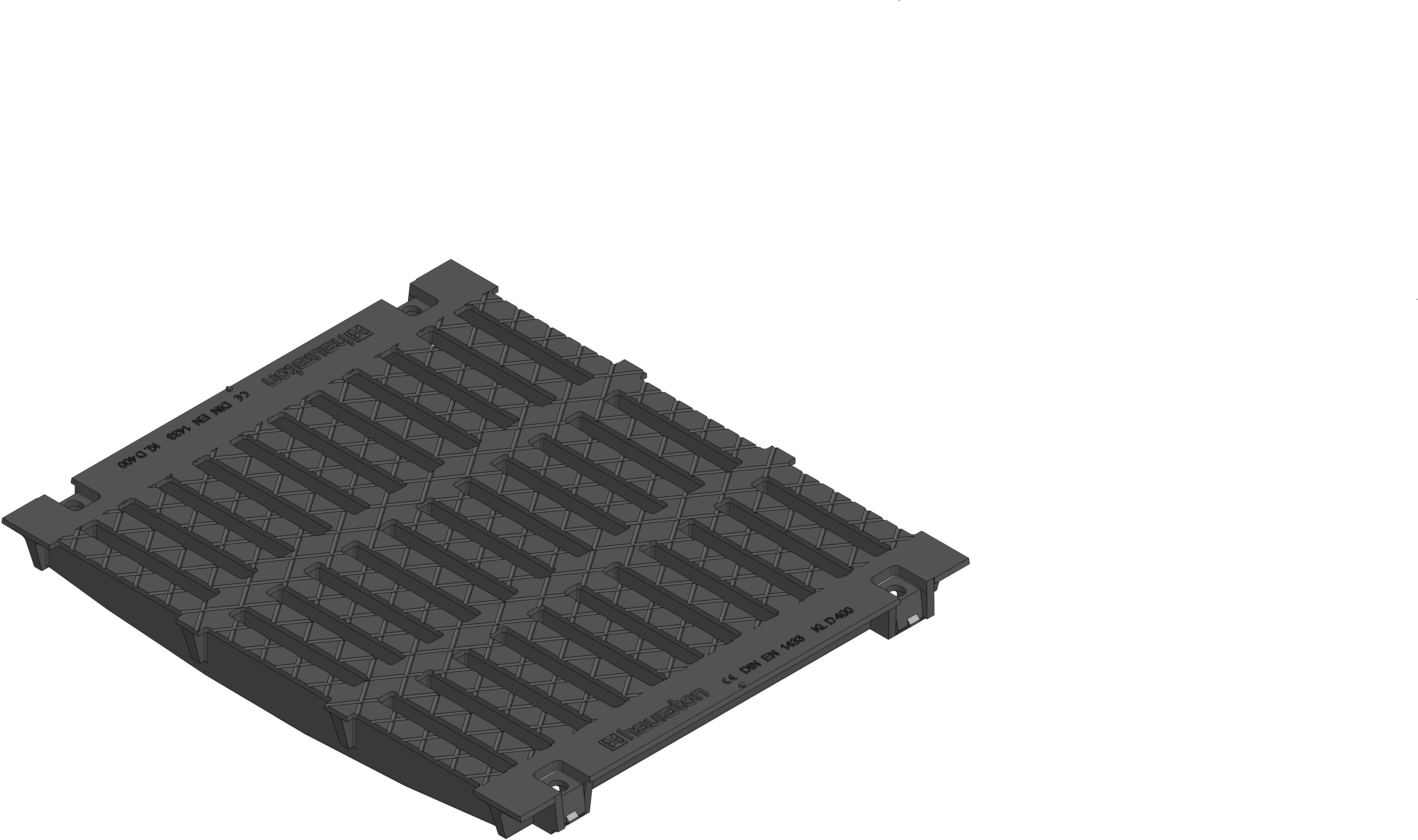

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
97548
Length
500 mm
Width
579 mm
Height
60 mm
Inlay depth
40 mm
Weight
33.30 kg
Material
Ductile iron GJS 500-7
Intake cross-section
1810.0 cm²/m
Nominal size
500
Inlet opening
140 x 18 mm
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating 3x SW 140/18 mm, black, cl. D 400, DRAINFIX CLEAN FSU 500, 0.5 m
Product description
DRAINFIX CLEAN FSU 500 - Ductile iron grating 3x SW 140/18 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, load class A 15 - D 400 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 97548
Packaging unit
-
