Article No. 96250
DRAINFIX Multifunction shafts
Multifunction gully SUPER, 3-part with closed ductile iron cover, black, class E 600

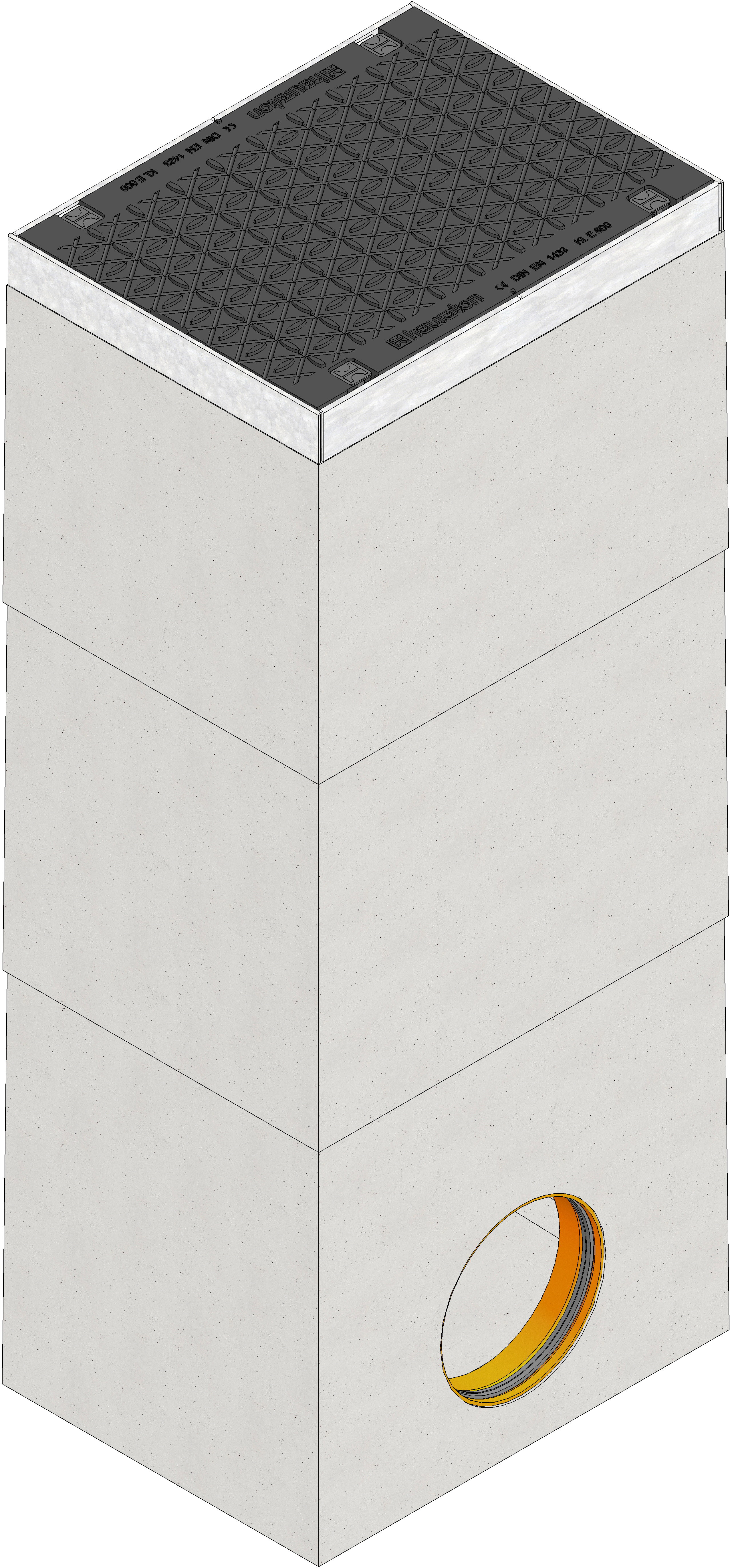

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
96250
Length
510 mm
Width
390 mm
Height
1250 mm
Weight
289.00 kg
Material
fibre-reinforced concrete
Nominal size
-
Sales text
Multifunction gully SUPER, 3-part, made of concrete, with all-round edge frame made of galvanised steel, with filter unit, with ductile iron grating closed, black, cl. E 600, DRAINFIX BLOC, 0.51 m
Product description
DRAINFIX BLOC - Multifunction gully SUPER, 3-part made from fibre-reinforced concrete, with all-round edge frames made of galvanised steel, extension part with filter element, with closed ductile iron grating, closed, made of spheroidal ductile iron GJS 500-7, black, with boltless quick-locking system SIDE-LOCK, 4-fold locking, one-sided connection possibility with integrated PVC-U socket DN/OD 200, load class A 15 - E 600, LxWxH 510x390x1250 mm, item no. 96250
Packaging unit
-
Volume
0.0 l
Tender Texts
Installation example
multi-layer paving for traffic areas
Installation instructions
