Article No. 96540
DRAINFIX TWIN, Multi-function shafts
Multifunction gully, size 1, made of PE, yellow

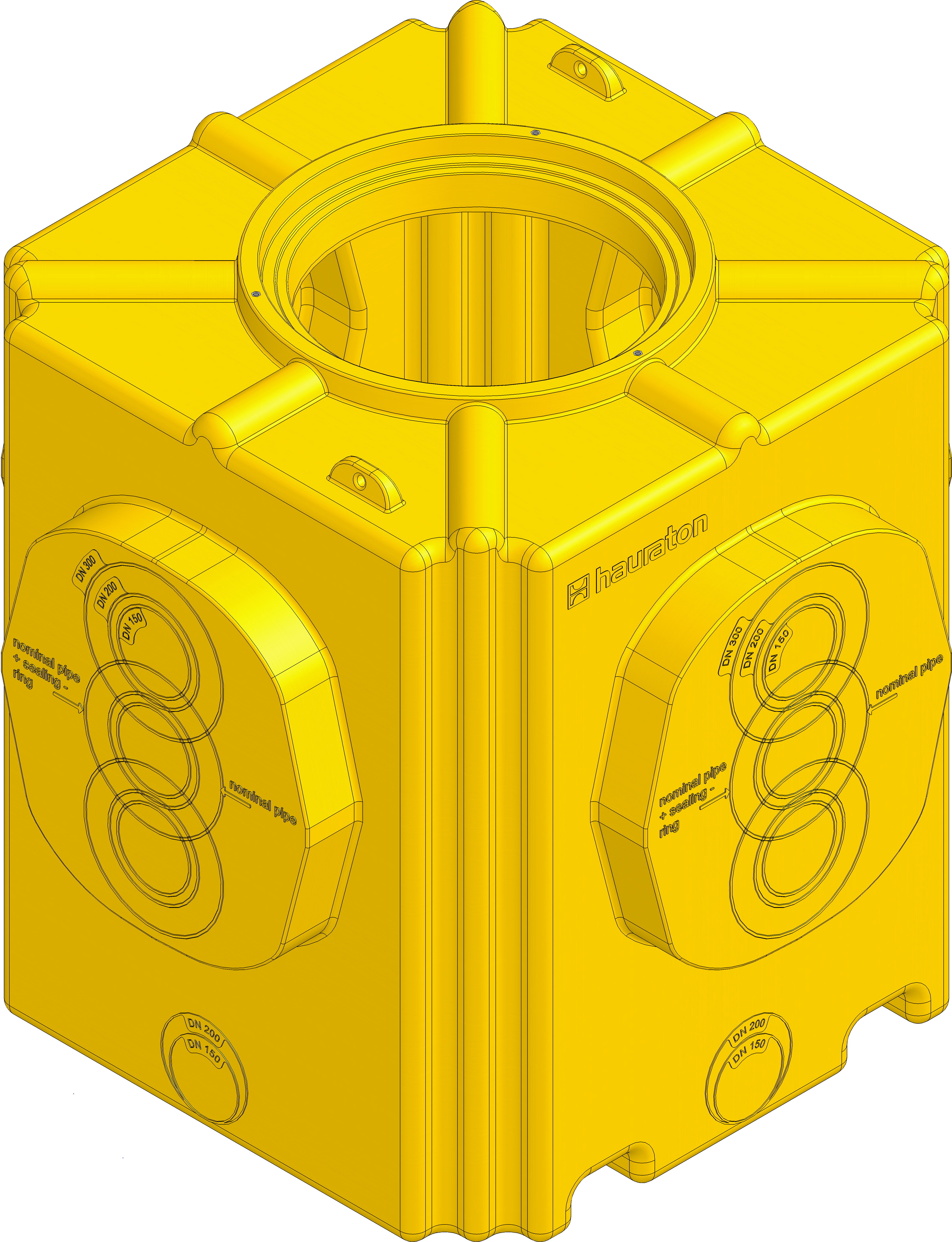

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
96540
Length
1280 mm
Width
1280 mm
Height
1460 mm
Weight
100.00 kg
Material
PE-MD
Nominal size
-
Sales text
Multifunction gully, size 1, made of PE, yellow, for DRAINFIX TWIN
Product description
DRAINFIX TWIN - Multifunction gully, size 1, wall thickness 10mm, made of polyethylene, yellow, with connection possibility for TWIN units on all 4 sides, or optionally connection possibility DN/OD150/200/300 on all 4 sides, with connection possibility DN/OD150/ 200 in the channel base on all 4 sides, - if the additional gully extension is used its height must be taken into account for the correct depth of the foundation - LxWxH1280x1280x1460mm, item no.96540
Packaging unit
1
Volume
0.0 l
Tender Texts

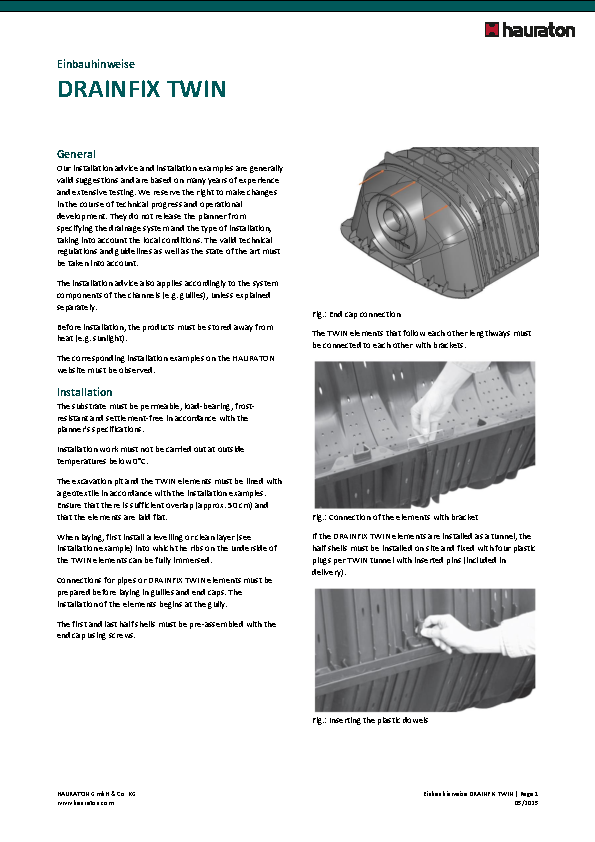

Installation instructions
Installation guide
Installation guide
Installation example

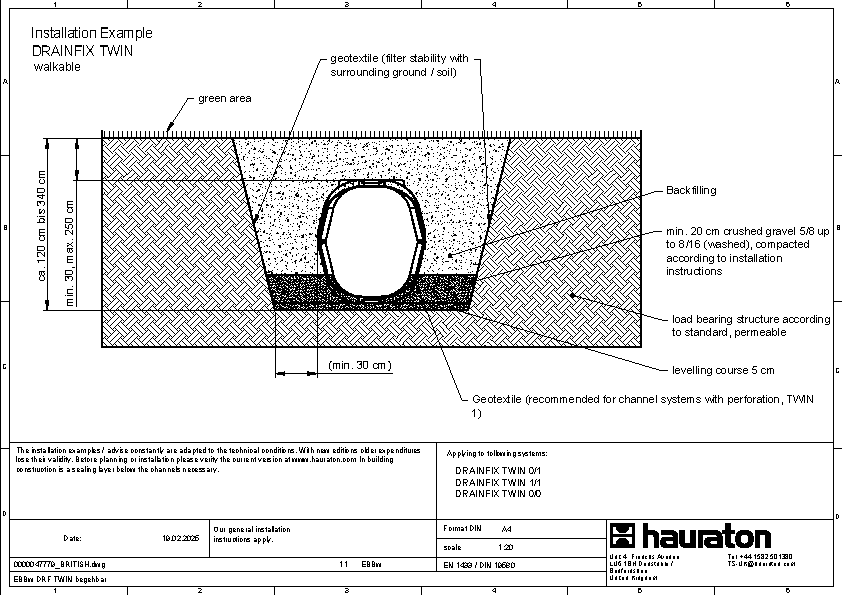

green space class Walkable, DRAINFIX TWIN 0/1, 1/1, 0/0

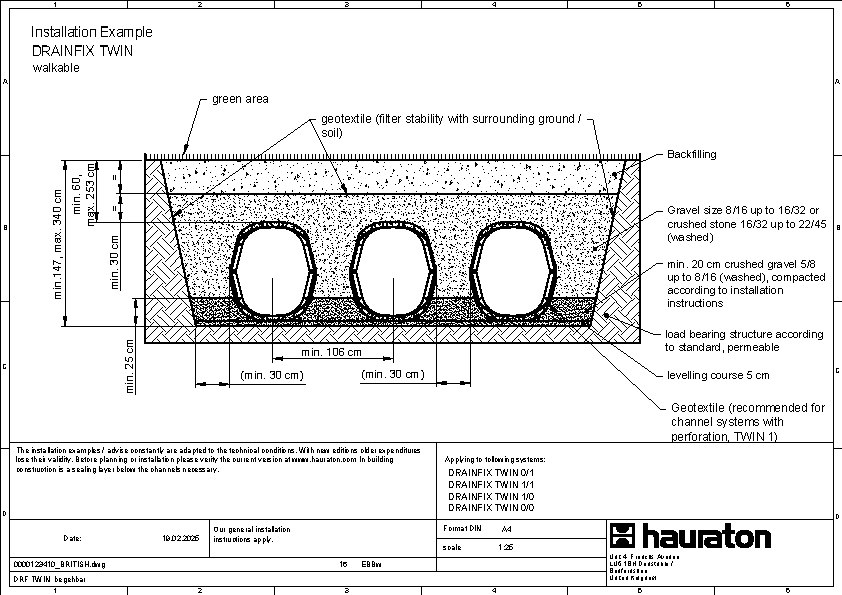

green space class Walkable, DRAINFIX TWIN 0/1, 1/1, 1/0 (3x)

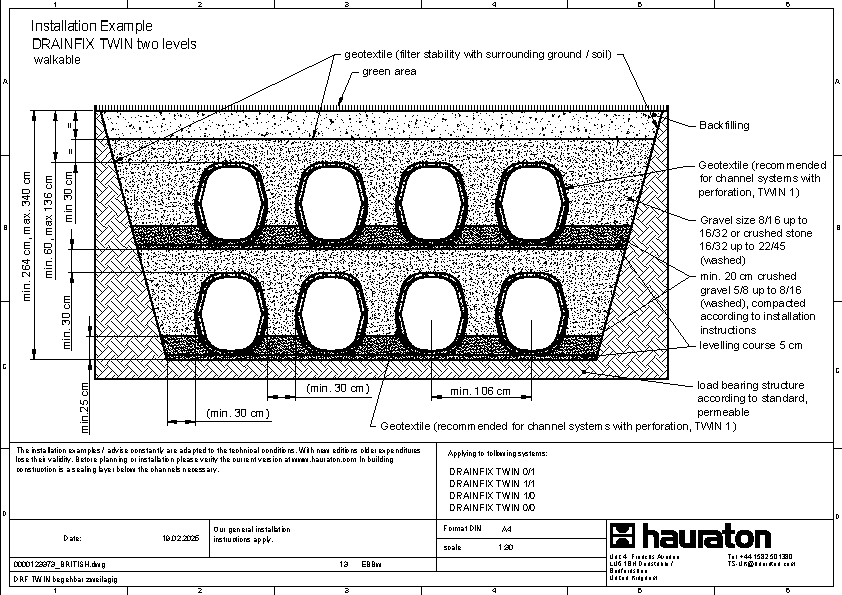

green space class Walkable, DRAINFIX TWIN 0/1, 1/1, 1/0 in two levels

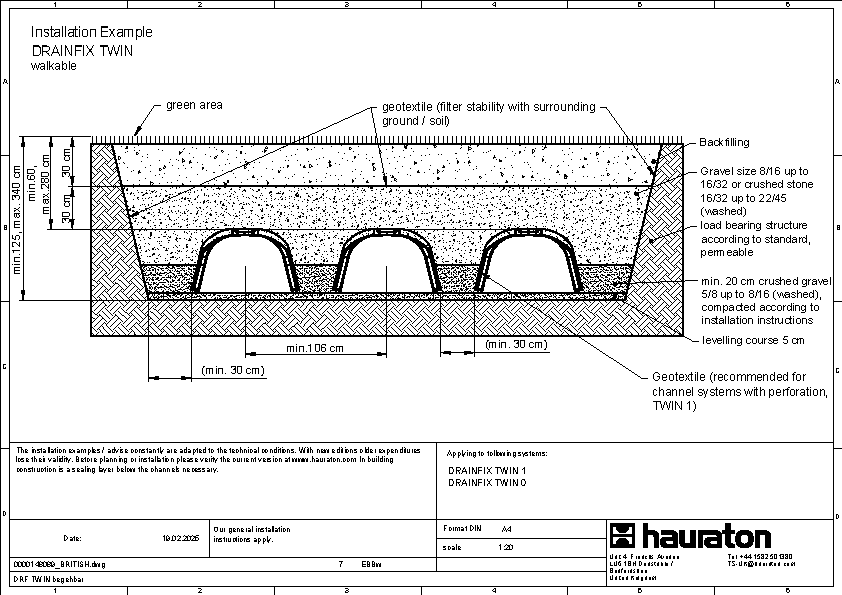

green space class Walkable, DRAINFIX TWIN 1 + 0 (3x)

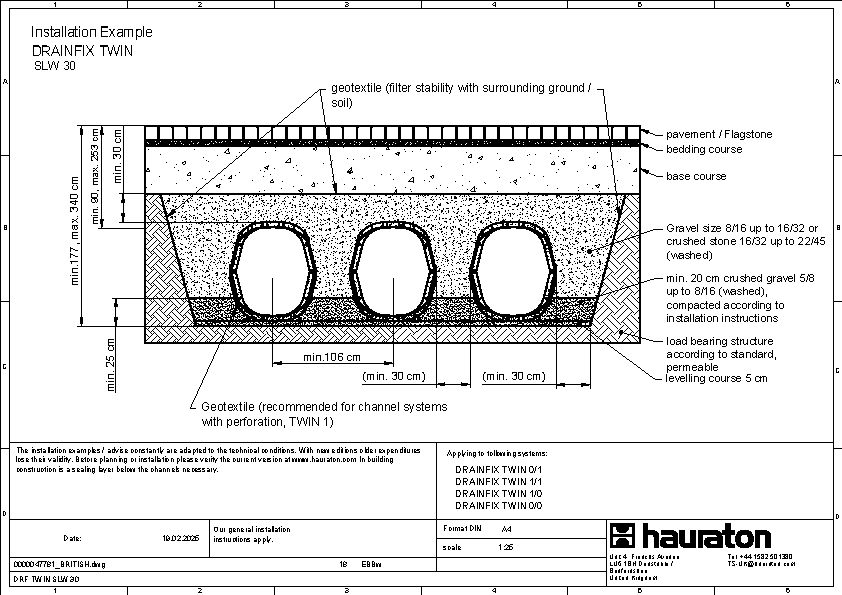

Pavement class SLW 30, DRAINFIX TWIN 0/1, 1/1, 1/0 (3x)

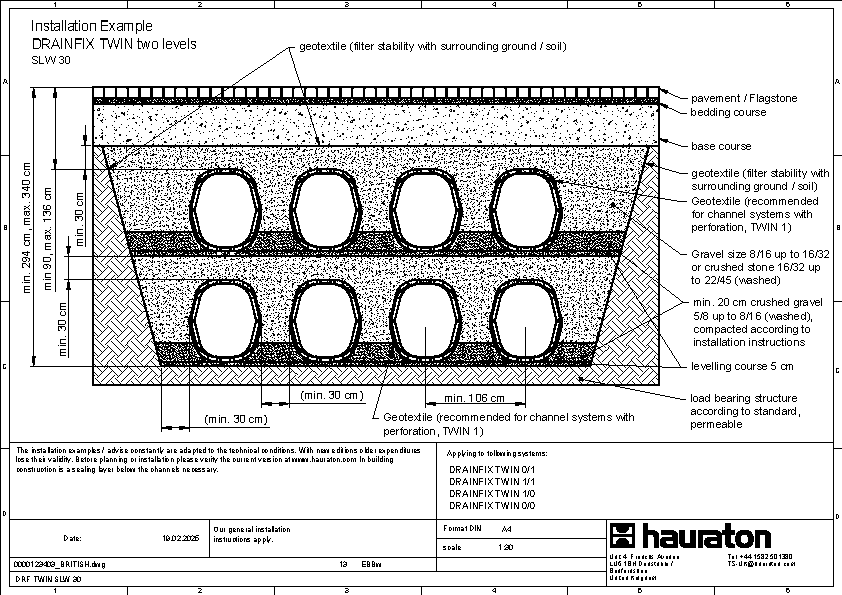

Pavement class SLW 30, DRAINFIX TWIN 0/1, 1/1, 1/0 in two levels
Asphalt class SLW 30, DRAINFIX TWIN 1 + 0 (3x)
