Article No. 28577
FASERFIX KS 100, class C 250
Mesh grating MS 30/10 mm, stainless steel, 1.0 m

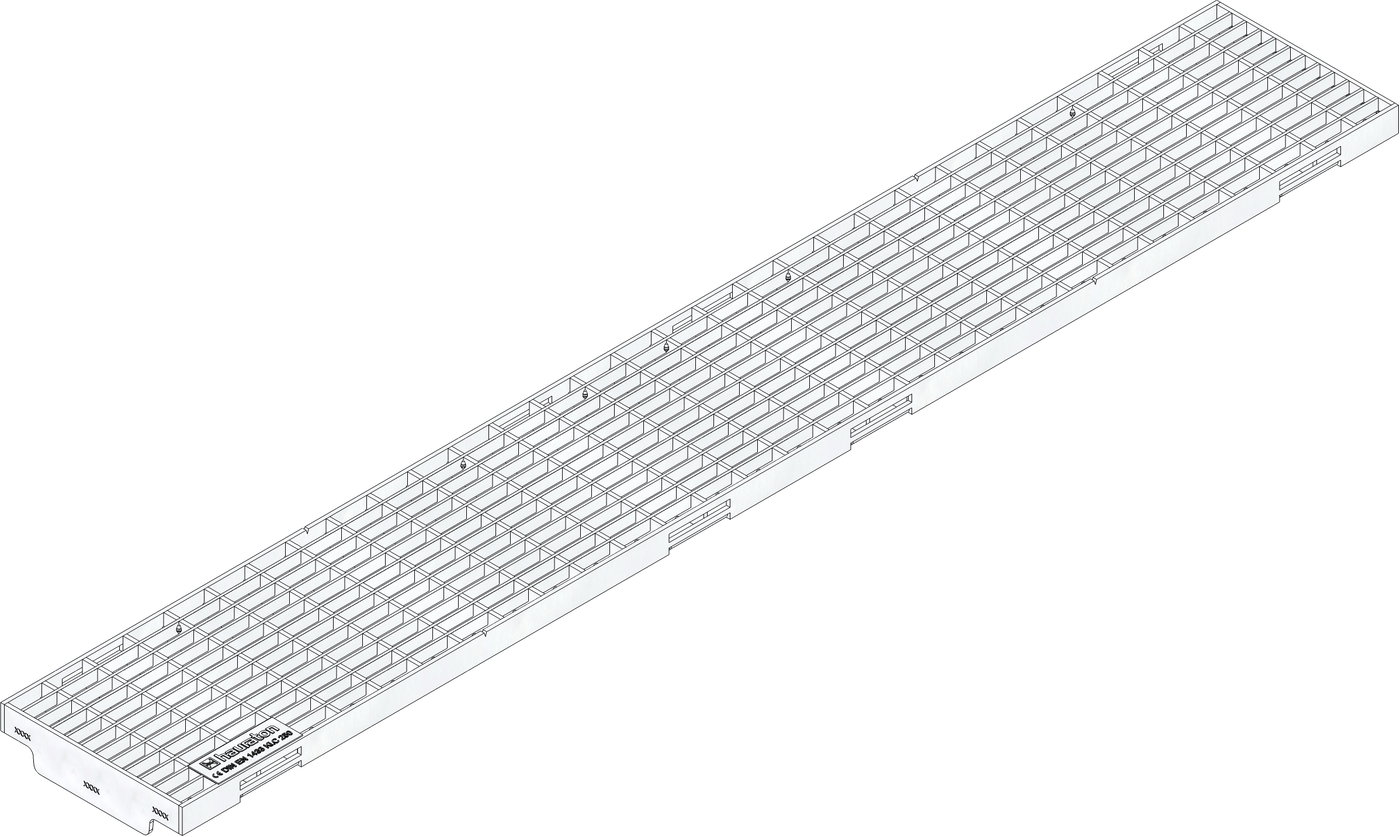

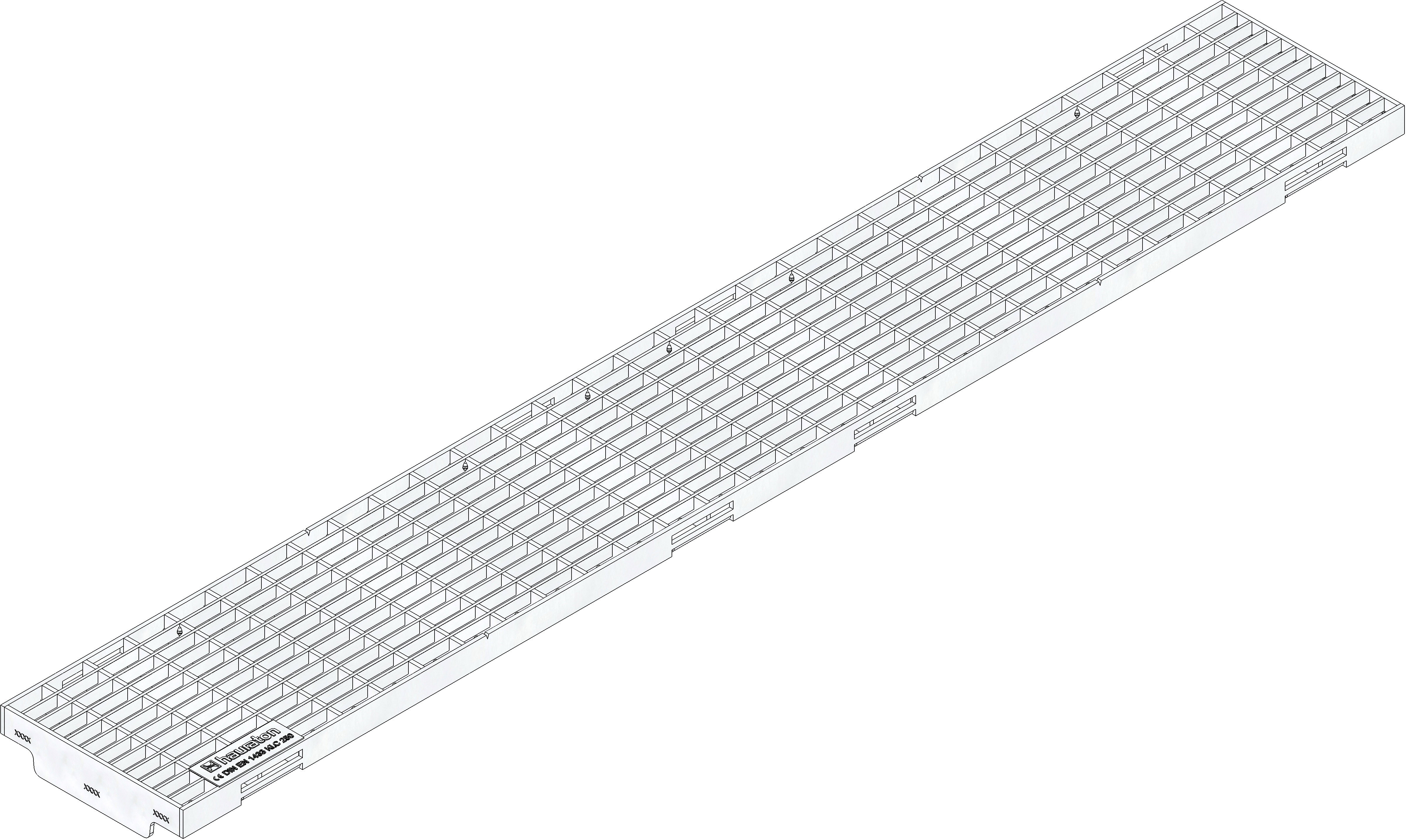

Product image
Top view

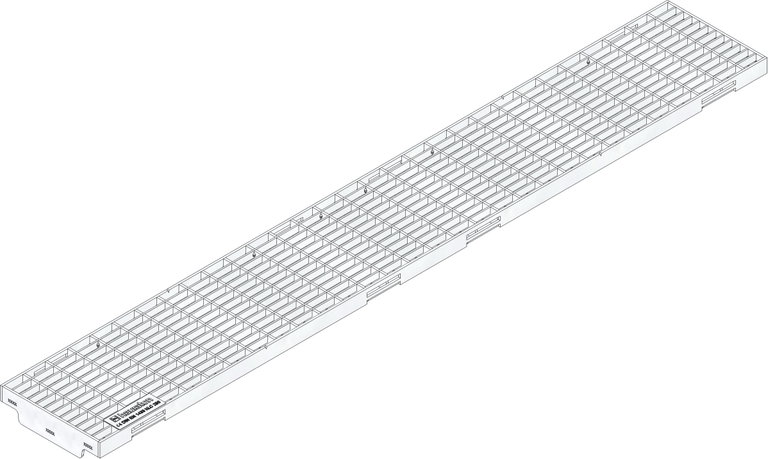

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
28577
Length
1000 mm
Width
149 mm
Height
36 mm
Inlay depth
20 mm
Weight
5.20 kg
Material
Stainless steel 1.4301
Intake cross-section
1062.0 cm²/m
Nominal size
100
Inlet opening
30 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MS 30/10 mm, stainless steel, cl. C 250, FASERFIX KS 100, 1 m
Product description
FASERFIX KS 100 - Mesh grating MS 30/10 mm, stainless steel CNS 1.4301, with longitudinal slide protection, load class A 15 - C 250 according to EN 1433, CE compliant, 8-fold locking, installation length 1000 mm, item no.28577
Packaging unit
200
