Article No. 28074
FASERFIX KS 100, class C 250
Mesh grating MS 30/30 mm, galvanised, 0.5 m
Product image

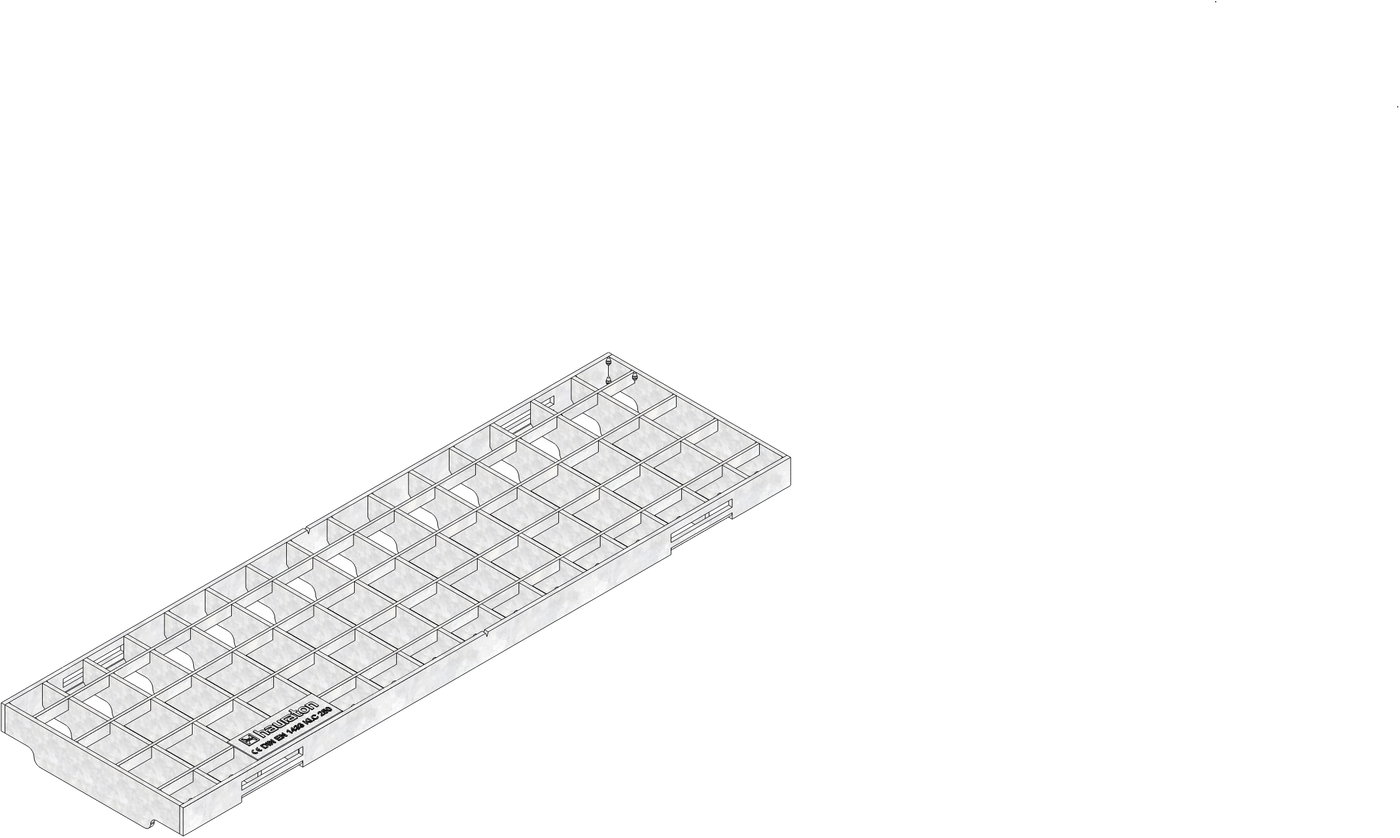

Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
28074
Length
500 mm
Width
149 mm
Height
31 mm
Inlay depth
20 mm
Weight
2.20 kg
Material
hot-dip galvanised steel
Intake cross-section
819.0 cm²/m
Nominal size
100
Inlet opening
30 mm
Fixing type
SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MS 30/30 mm, galvanised, cl. C 250, FASERFIX KS 100, 0.5 m
Product description
FASERFIX KS 100 - Mesh grating, galvanised, MS 30/30 mm, load class A 15 - C 250 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no.28074
Packaging unit
400
