Article No. 28073
FASERFIX KS 100, class C 250
Mesh grating MS 30/30 mm, galvanised, 1.0 m

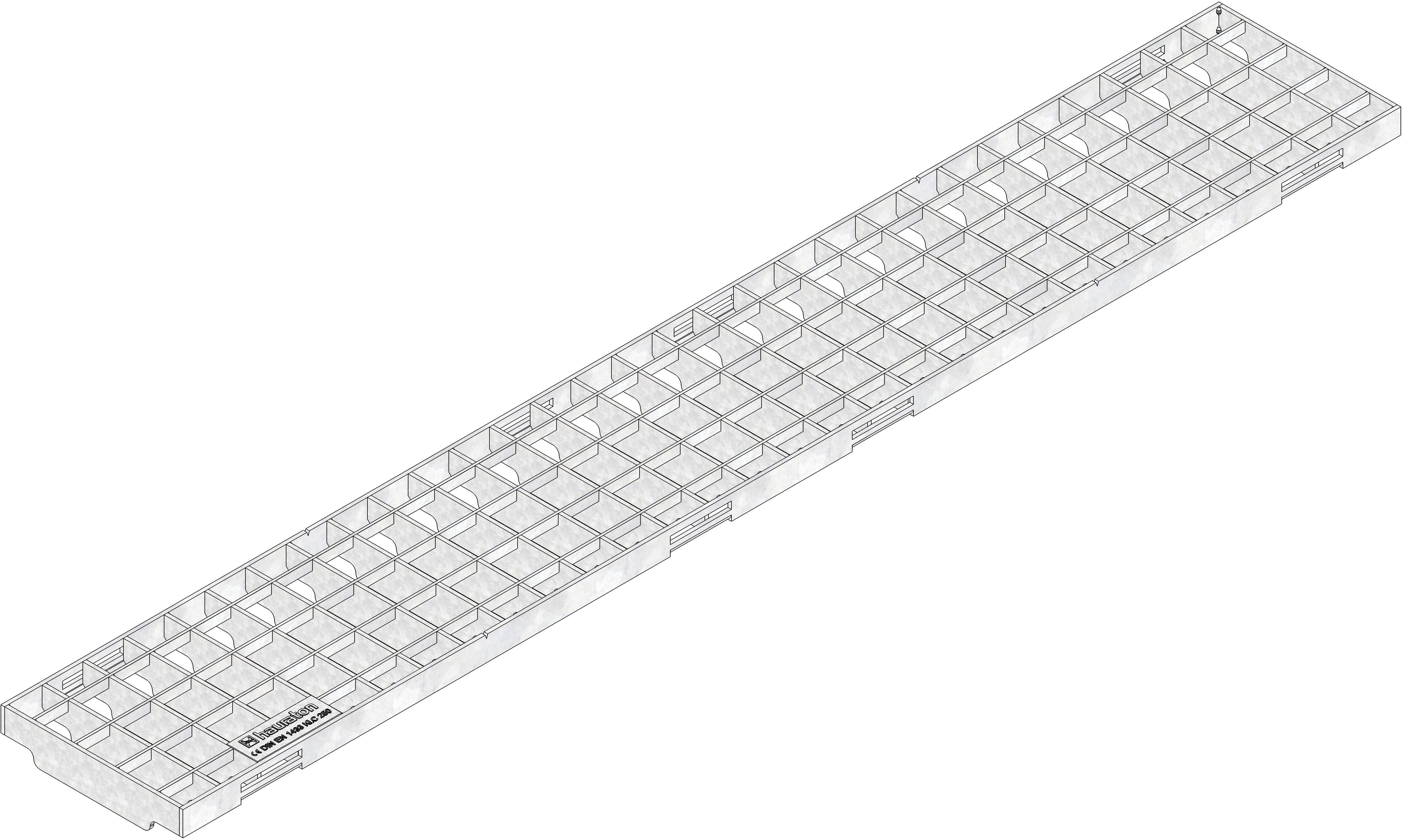

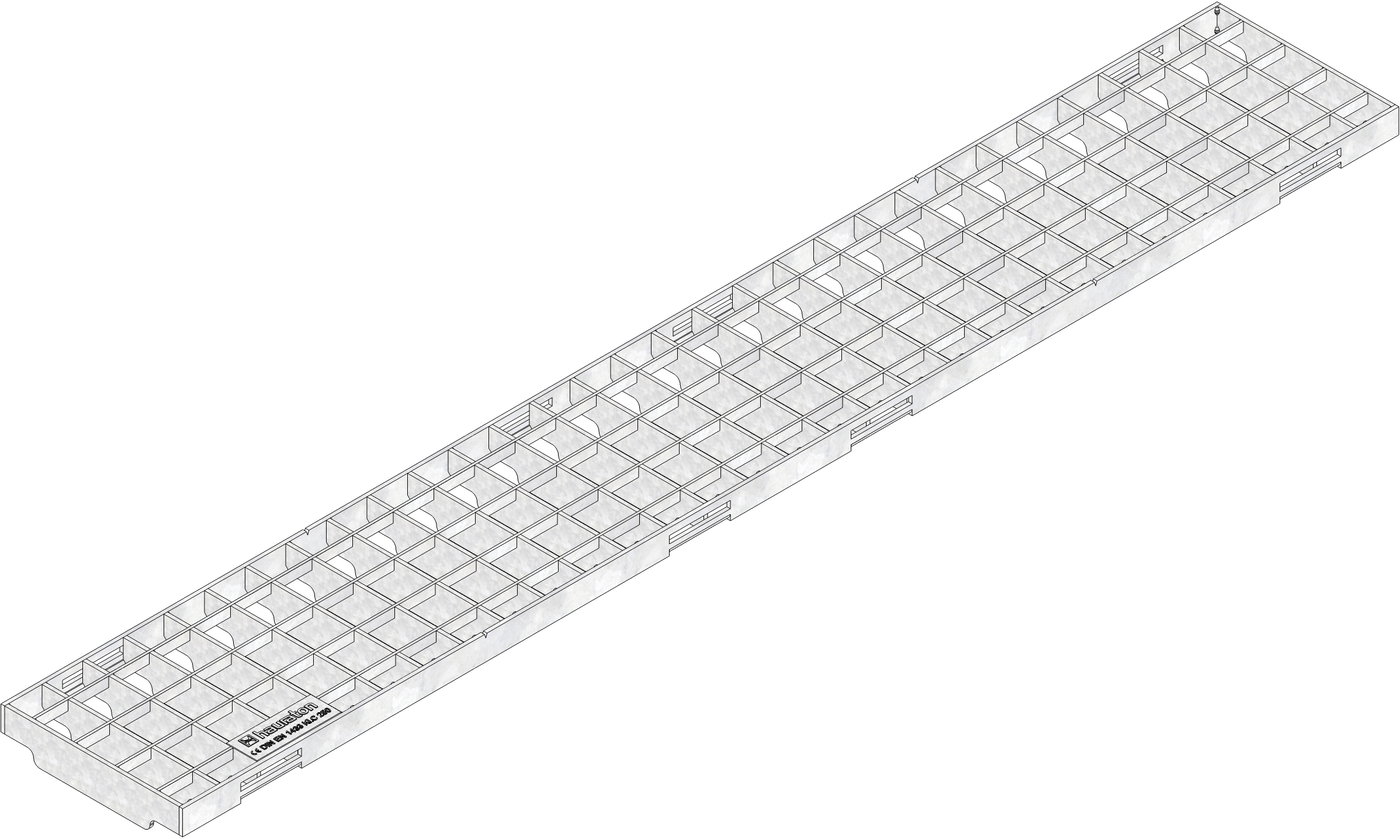

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
28073
Length
1000 mm
Width
149 mm
Height
31 mm
Inlay depth
20 mm
Weight
4.40 kg
Material
hot-dip galvanised steel
Intake cross-section
828.0 cm²/m
Nominal size
100
Inlet opening
30 mm
Fixing type
SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MS 30/30 mm, galvanised, cl. C 250, FASERFIX KS 100, 1 m
Product description
FASERFIX KS 100 - Mesh grating, galvanised, MS 30/30, load class A 15 - C 250 according to EN 1433, CE compliant, 8-fold locking, installation length 1000 mm, item no.28073
Packaging unit
200
