Article No. 28171
FASERFIX KS 100, class C 250
Perforated grating Ø 6 mm, galvanised, 1.0 m

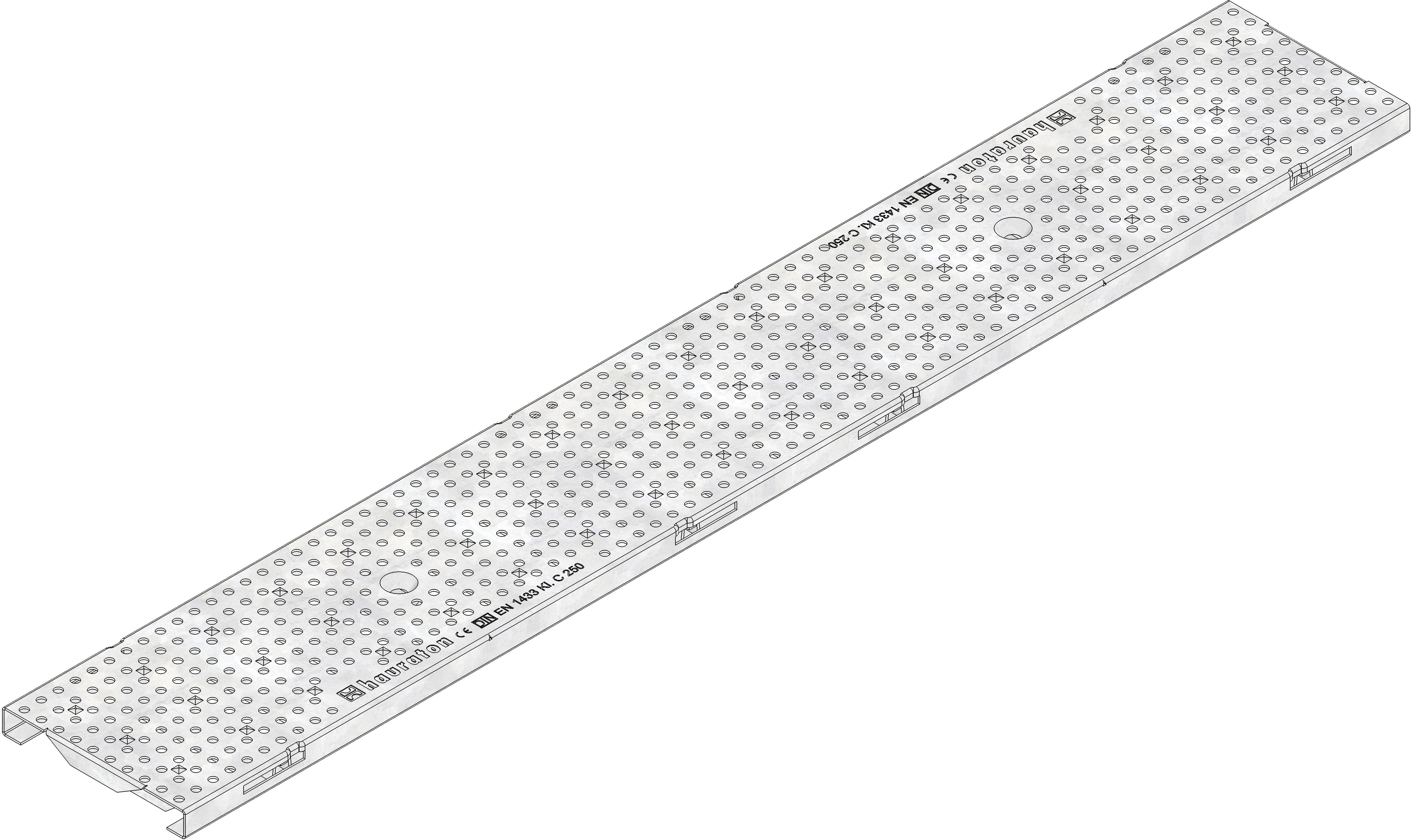

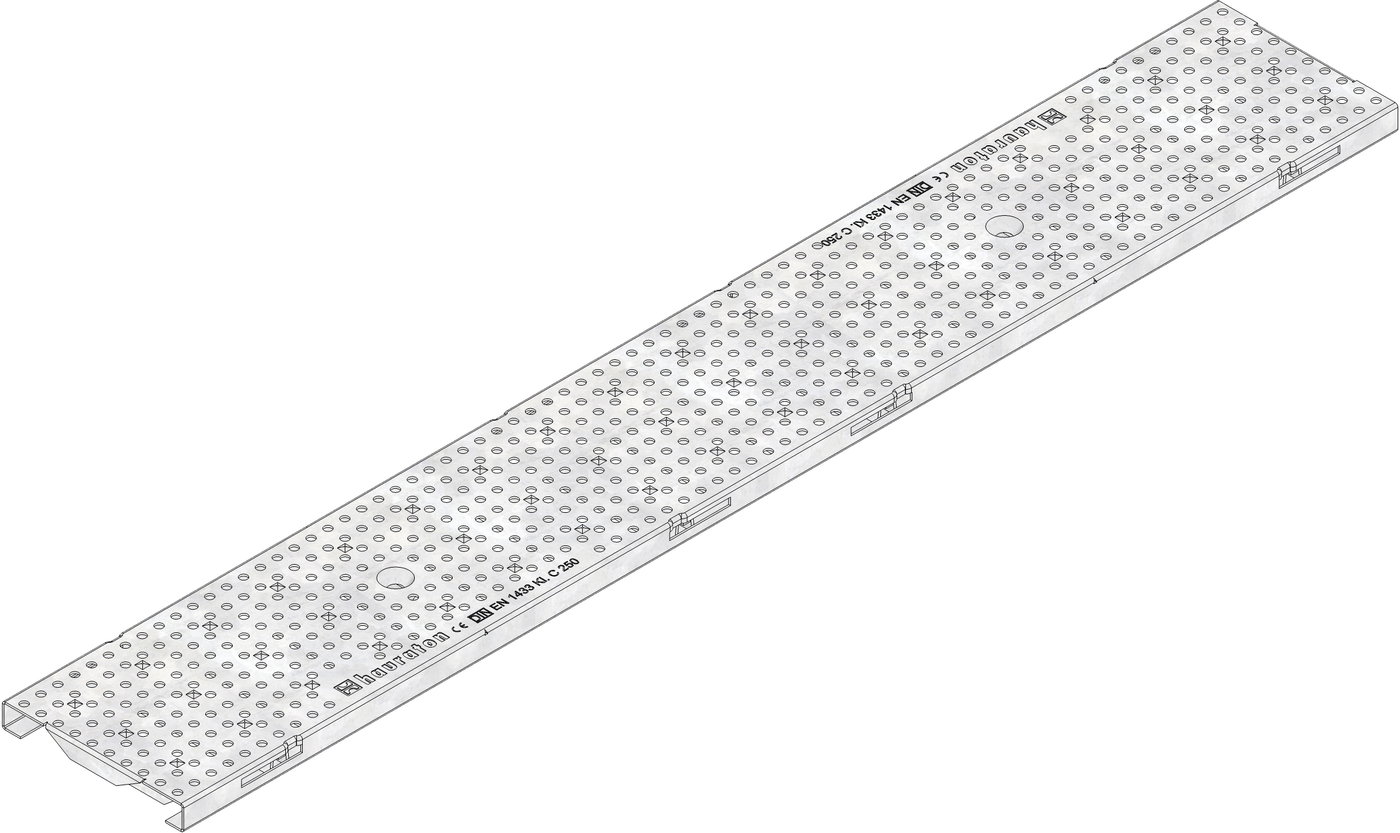

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
28171
Length
1000 mm
Width
149 mm
Height
27 mm
Inlay depth
20 mm
Weight
5.30 kg
Material
strip galvanized steel
Intake cross-section
191.0 cm²/m
Nominal size
100
Inlet opening
6 x 0 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
strip galvanized steel
Regulations
EN 1433, DIN 51130, DIN 19580, EN 16165
Sales text
Perforated grating Ø 6 mm, galvanised, cl. C 250, FASERFIX KS 100, 1 m
Product description
FASERFIX KS 100 - Perforated grating Ø 6 mm, galvanised, with longitudinal slide protection, load class A 15 - C 250 according to EN 1433, CE compliant, 8-fold locking, installation length 1000 mm, item no.28171
Packaging unit
192
