Article No. 28167
FASERFIX KS 100, class C 250
Reinforced slotted grating, galvanised, 1.0 m

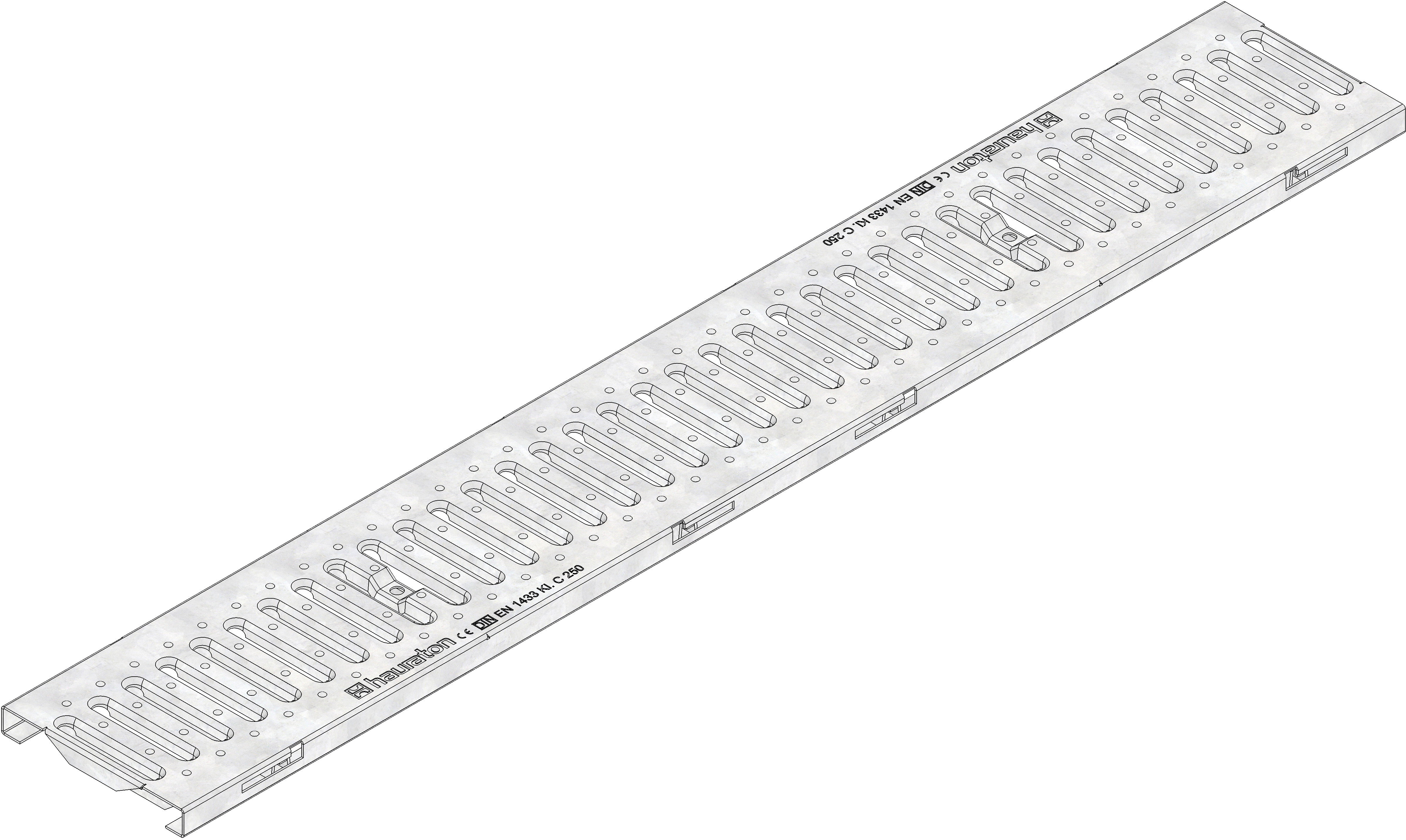

Product image
Technical drawing
Drawing
Drawing (CAD)
Top view
Technical information and metrics
Article No.
28167
Length
1000 mm
Width
149 mm
Height
27 mm
Inlay depth
20 mm
Weight
5.28 kg
Material
strip galvanized steel
Intake cross-section
285.0 cm²/m
Nominal size
100
Inlet opening
80 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
Reinforced slotted grating, galvanised, cl. C 250, FASERFIX KS 100, 1 m
Product description
FASERFIX KS 100 - Reinforced slotted grating SW 80/10 mm, galvanised, with longitudinal slide protection, load class A 15 - C 250 according to EN 1433, CE compliant, 8-fold locking, installation length 1000 mm, item no.28167
Packaging unit
192
