Article No. 28169
FASERFIX KS 100, class C 250
Reinforced slotted grating, stainless steel, 1.0 m

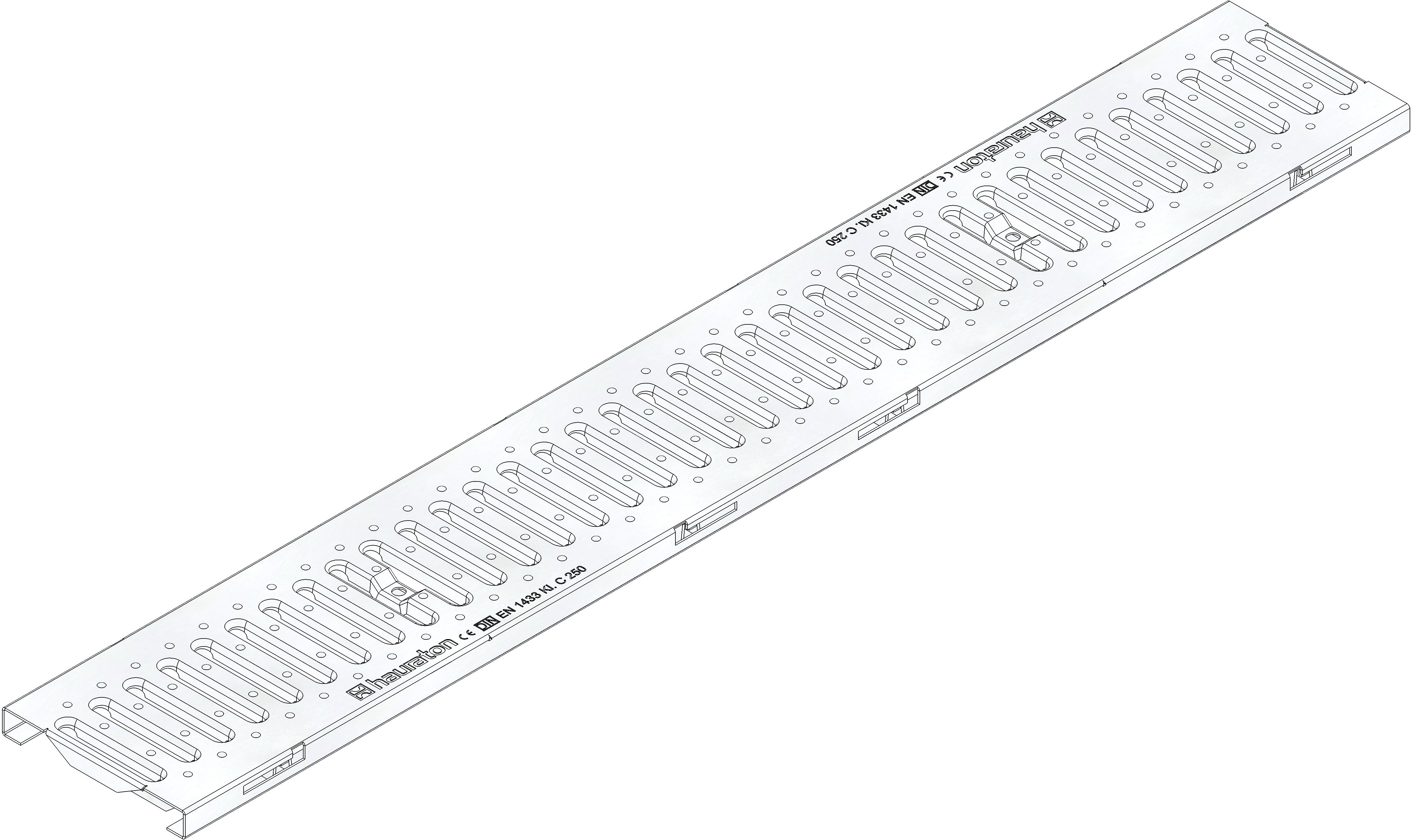

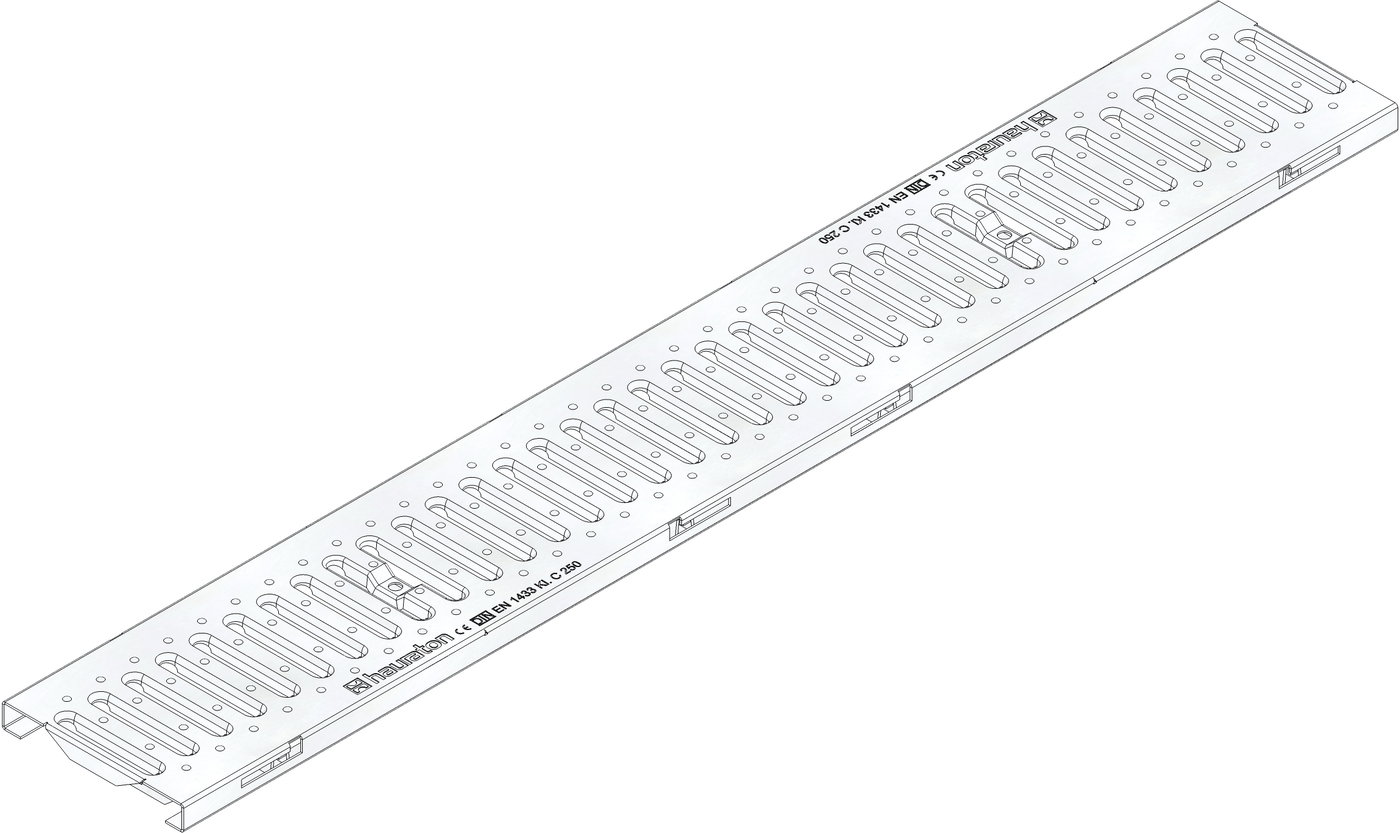

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
28169
Length
1000 mm
Width
149 mm
Height
27 mm
Inlay depth
20 mm
Weight
5.10 kg
Material
Stainless steel 1.4301
Intake cross-section
285.0 cm²/m
Nominal size
100
Inlet opening
80 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Reinforced slotted grating, stainless steel, cl. C 250, FASERFIX KS 100, 1 m
Product description
FASERFIX KS 100 - Reinforced slotted grating SW 80/10 mm, stainless steel CNS 1.4301, with longitudinal slide protection, load class A 15 - C 250 according to EN 1433, CE compliant, 8-fold locking, installation length 1000 mm, item no.28169
Packaging unit
192
