Article No. 11068
FASERFIX KS 150, class E 600
GUGI-ductile iron mesh grating MS 15/25 mm, black, 0.5 m

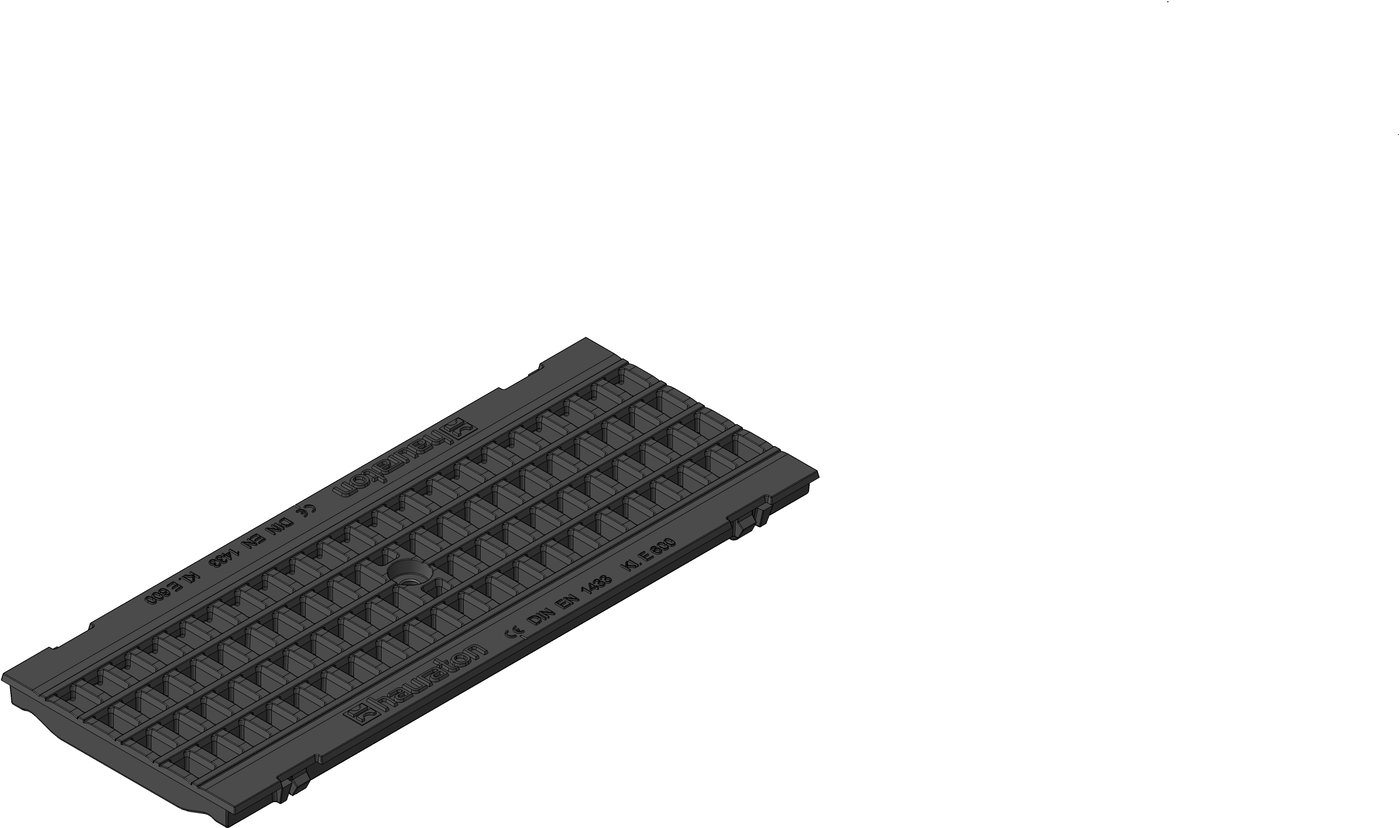

Product image
Technical drawing
Drawing
Drawing (CAD)
Top view
Technical information and metrics
Article No.
11068
Length
500 mm
Width
199 mm
Height
33 mm
Inlay depth
20 mm
Weight
6.84 kg
Material
Ductile iron GJS 500-7
Intake cross-section
622.0 cm²/m
Nominal size
150
Inlet opening
15 x 25 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
GUGI-ductile iron mesh grating MS 15/25 mm, black, cl. E 600, FASERFIX KS 150, 0.5 m
Product description
FASERFIX KS 150 - GUGI-ductile iron mesh grating MS 15/25 mm, made of spheroidal ductile iron GJS 500-7, black, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 11068
Packaging unit
154
