Article No. 12463
FASERFIX KS 200, class D 400
Ductile iron grating 2x SW 85/18 mm, black, 0.5 m

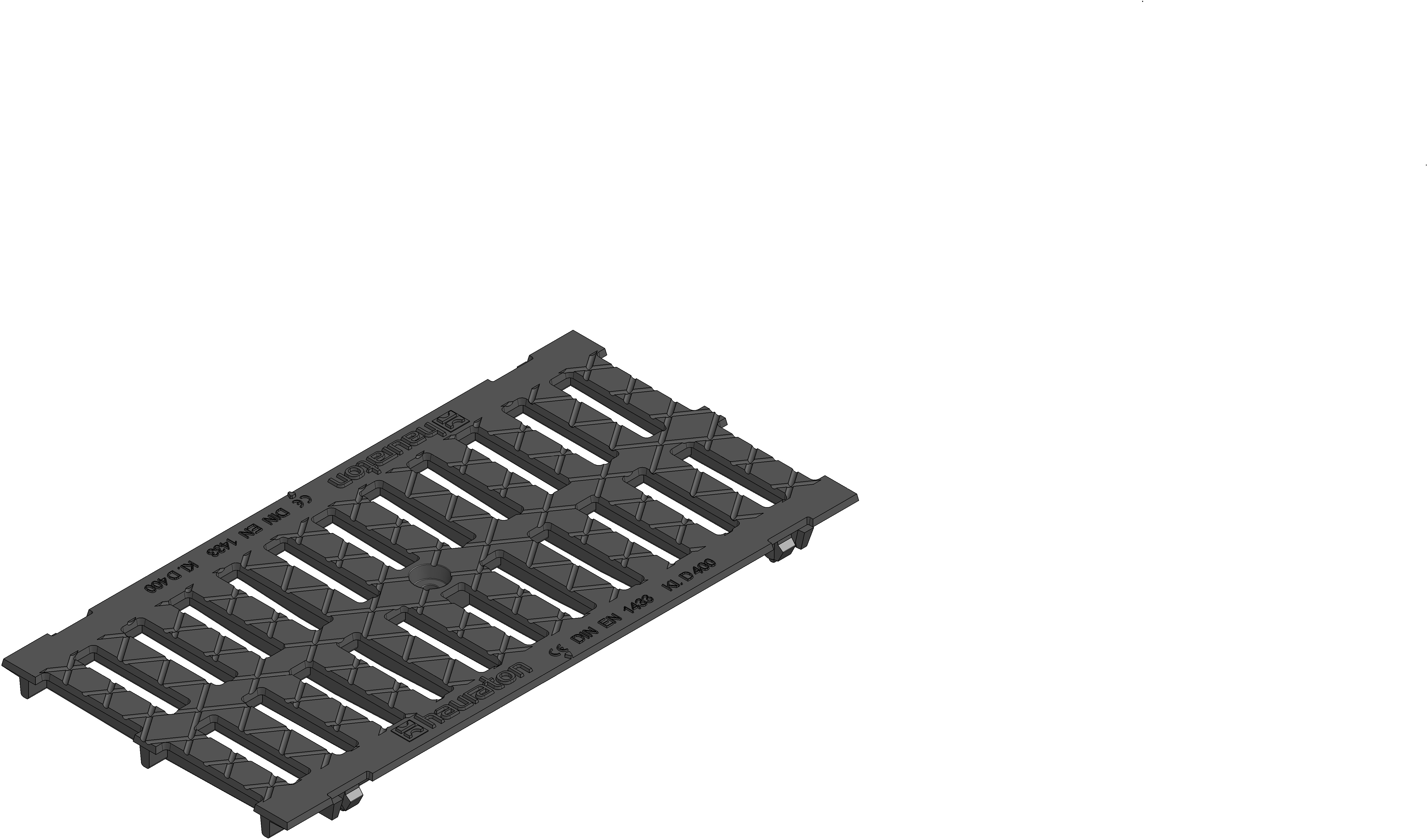

Product image
Technical drawing
Drawing (CAD)
Top view
Technical information and metrics
Article No.
12463
Length
500 mm
Width
249 mm
Height
20 mm
Inlay depth
20 mm
Weight
6.83 kg
Material
Ductile iron GJS 500-7
Intake cross-section
724.0 cm²/m
Nominal size
200
Inlet opening
85 x 18 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating 2x SW 85/18 mm, black, cl. D 400, FASERFIX KS 200, 0.5 m
Product description
FASERFIX KS 200 - Ductile iron grating 2x SW 85/18 mm, made of spheroidal ductile iron GJS 500-7, black, with longitudinal slide protection, load class A 15 - D 400 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 12463
Packaging unit
126
