Article No. 12271
FASERFIX KS 200, class D 400
Ductile iron grating as tactile indicator for the visually impaired, black, lcoked, KTL-coated

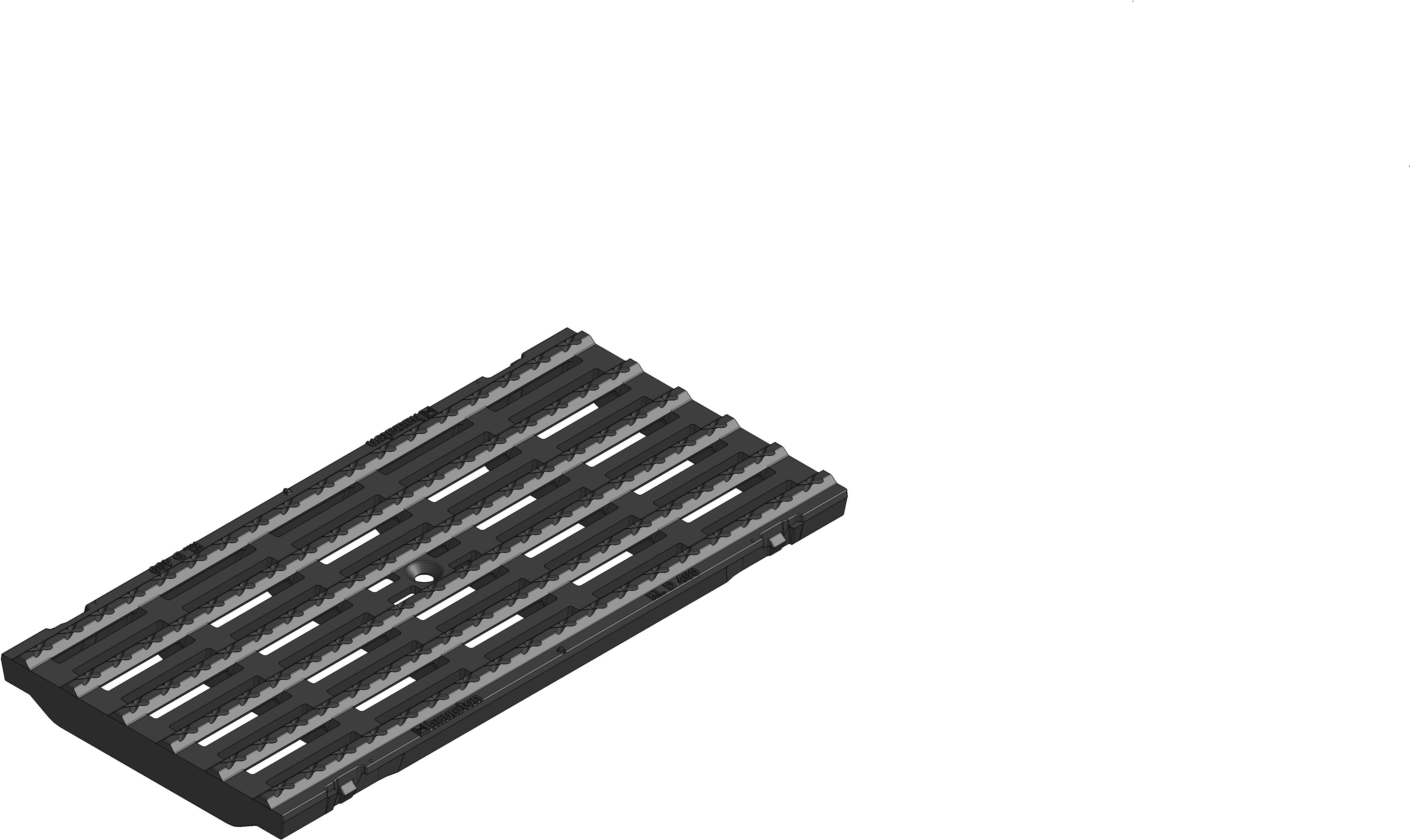

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
12271
Length
500 mm
Width
249 mm
Height
38 mm
Inlay depth
20 mm
Weight
10.07 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
595.0 cm²/m
Nominal size
200
Inlet opening
8 x 80 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 51130, DIN 19580, EN 16165
Sales text
Iron grating walking indicators made of spheroidal ductile iron EN-GJS-500-7 , KTL-coated, cl. D 400, FASERFIX KS 200, 0.5 m
Product description
FASERFIX KS 200 - Iron grating walking indicators, Channel cover made of spheroidal graphite iron EN-GJS-500-7, for traffic-safe covering of a drainage channel and simultaneous use as a floor indicator for tactile orientation and guidance for the visually impaired, colour black (tactile contrast to light-coloured connecting coverings), KTL-coated, slip-resistant due to additional profiling, with longitudinal slide protection, load class A 15 - D 400 according to EN 1433, CE compliant, based on DIN 32984 2011-10 (Ground surface indicators in public areas), with 8-fold boltless quick-locking system SIDE-LOCK per meter, optionally screwable, inlet cross-section 606 cm²/m, installation length 500 mm, item no. 12271
Packaging unit
108
