Article No. 12269
FASERFIX KS 200, class D 400
Longitudinal ductile iron grating, bar distance 9 mm, KTL-coated, 0.5 m

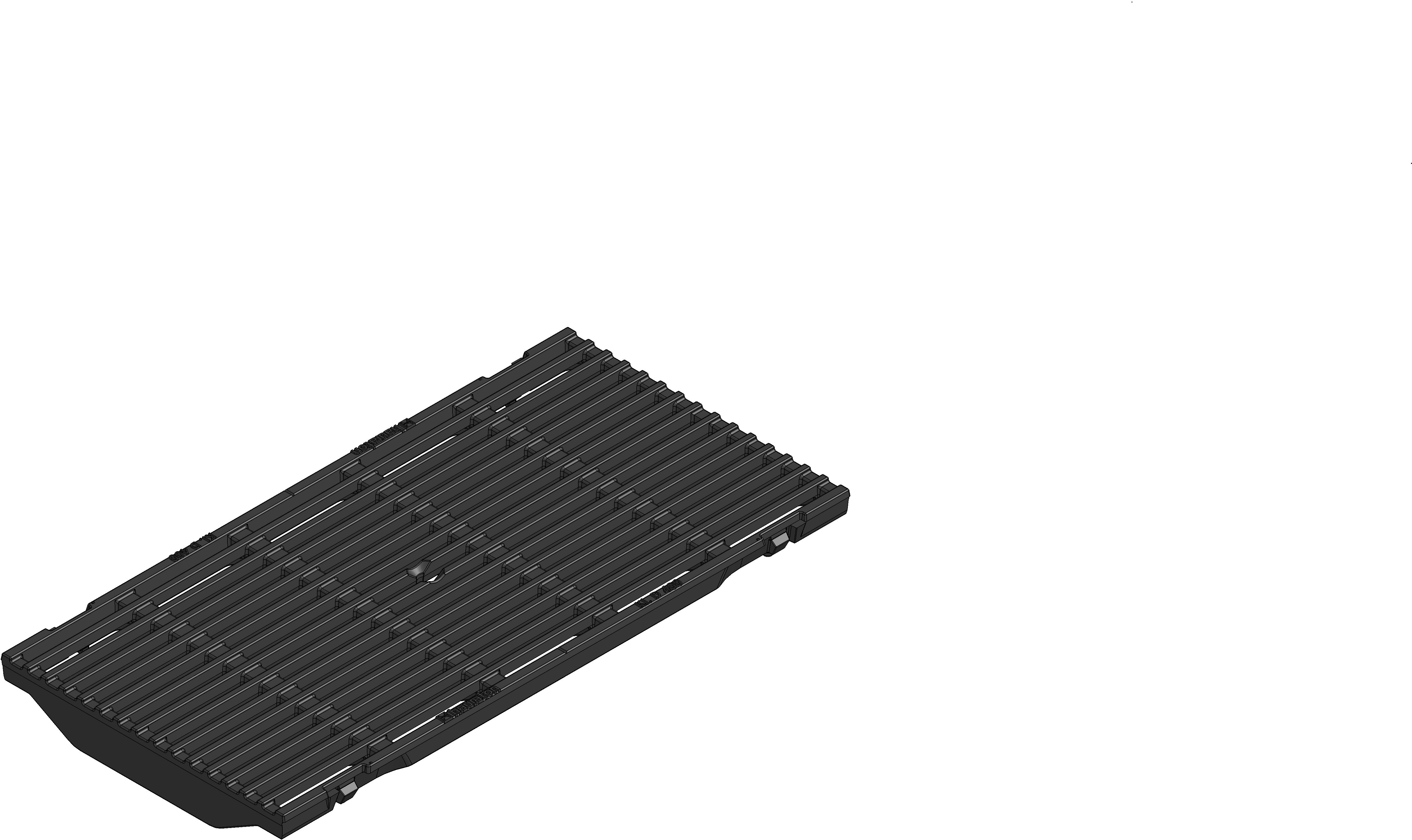

Product image
Top view
Technical drawing
Drawing (CAD)
Technical information and metrics
Article No.
12269
Length
500 mm
Width
249 mm
Height
39 mm
Inlay depth
20 mm
Weight
9.43 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
951.0 cm²/m
Nominal size
200
Inlet opening
9 x 0 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Longitudinal ductile iron grating, bar distance 9 mm, KTL-coated, cl. D 400, FASERFIX KS 200, 0.5 m
Product description
FASERFIX KS 200 - Longitudinal ductile iron grating bar distance 9 mm, made of spheroidal ductile iron GJS 500-7, KTL-coated, with longitudinal slide protection, load class A 15 - D 400 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 12269
Packaging unit
108
