RECYFIX HICAP F 10000 up to load class F 900
Type 10300, ductile iron traverse bar grating SW 13/28 mm, KTL-coated, 1.14 m

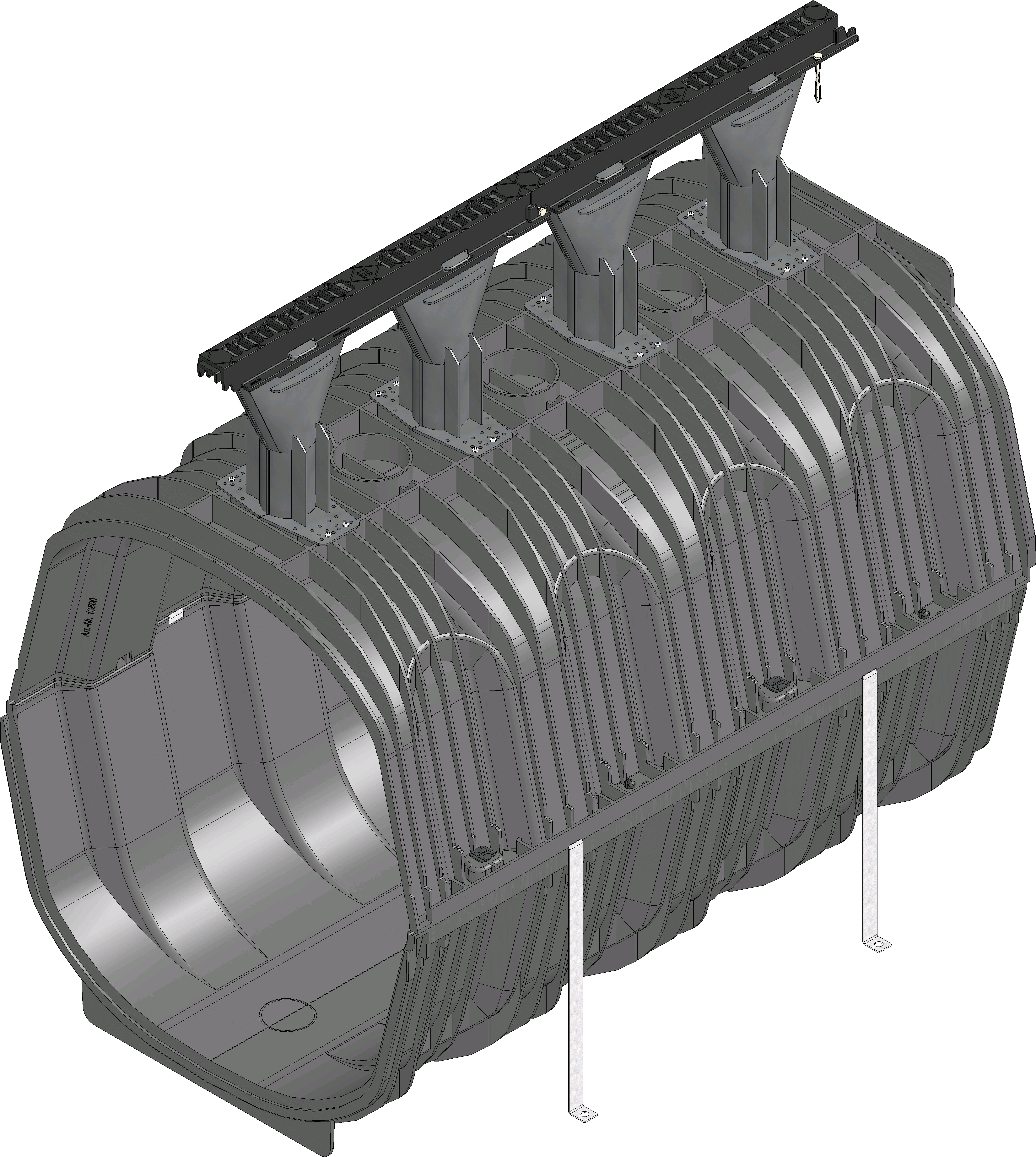

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Tender Texts
Installation example
Asphalt class A 15 - D 400,
Concrete class B 125 - D 400,
Pavement class D 400,
Concrete class D 400 - F 900, RECYFIX HICAP F 10200 with shaft construction F 900
Concrete class D 400 - F 900, RECYFIX HICAP F 10300 with shaft construction F 900
Asphalt class E 600 - F 900,
Concrete class E 600 - F 900,
Asphalt class D 400, RECYFIX HICAP 10200 Inspection element
Concrete class D 400, RECYFIX HICAP 10200 Inspection element
Asphalt class E 600 - F 900, RECYFIX HICAP 10200 Inspection element
Asphalt class E 600 - F 900, RECYFIX HICAP 10300 Inspection element
Concrete class E 600 - F 900, RECYFIX HICAP 10200 Inspection element
Concrete class E 600 - F 900, RECYFIX HICAP 10300 Inspection element
Asphalt class E 600, Sump unit
Concrete class E 600, Sump unit
Concrete class F 900, Sump unit
