Article No. 13422

RECYFIX HICAP F 5000 up to load class D 400

Type 5200, stainless steel design grating WAVE 6 mm, 1.0 m

Project request Tender Texts

Fragen?

Unser erfahrenes Planungsteam hilft Ihnen gerne.

Fragen?

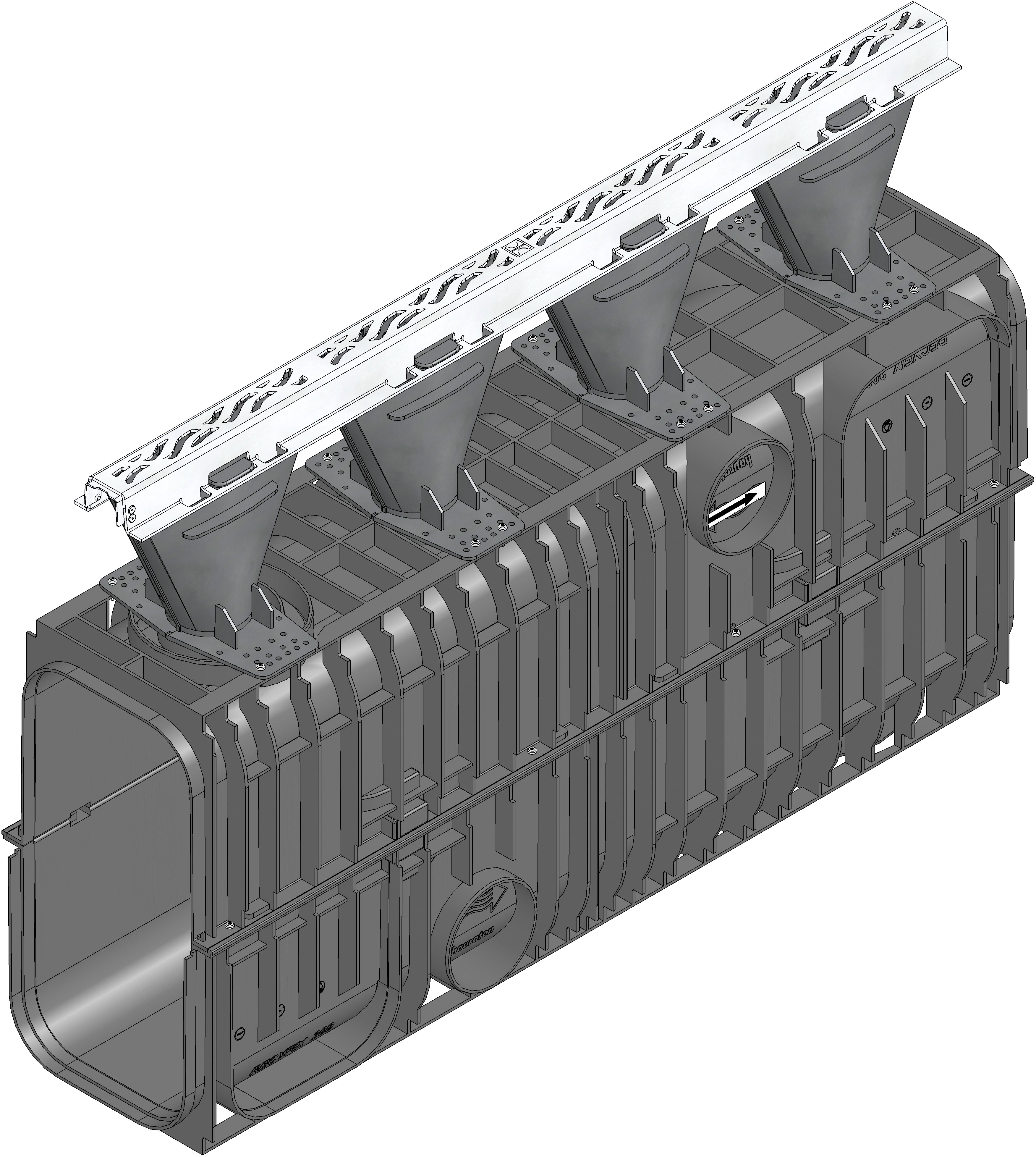

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Technical information and metrics
Article No.
13422
Length
1000 mm
Width
256 mm
Height
662 mm
Weight
11.83 kg
Material
ABS, Aluminium, Galvanised steel, PE-HD, Polyamide, recycled, modified Polypropylene, Stainless steel 1.4301
Height of angle housing
228 mm
Intake cross-section
78.0 cm²/m
Nominal size
5000
Internal channel cross-section
790 cm²
Fall
-
Height funnel
200 mm
Channel material
recycled, modified Polypropylene
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX HICAP F 5200 with stainless steel design grating WAVE 6 mm, cl. D 400, 1 m
Product description
RECYFIX HICAP F 5200 consists of a closed channel body, made of recycled polypropylene, with inlet funnel, with integrated design cover WAVE 6 mm, made of stainless steel CNS 1.4301, load class A 15 - D 400 according to EN 1433, length 1000 mm, item no. 13422
Packaging unit
12

Tender Texts

Installation example

Pavement class A 15 - C 250, RECYFIX HICAP F 1200, 2200, 3200, 5200

Installation example

Pavement class A 15 - C 250, RECYFIX HICAP F 1200, 2200, 3200, 5200

Installation example

Pavement class A 15 - C 250, RECYFIX HICAP F 1300, 2300, 3300, 5300

Installation example

Pavement class A 15 - C 250, RECYFIX HICAP F 1300, 2300, 3300, 5300

Installation example

Asphalt class D 400, RECYFIX HICAP F 1200, 2200, 3200, 5200 with stainless steel angle housing in wave or slot design

Installation example

Asphalt class D 400, RECYFIX HICAP F 1300, 2300, 3300, 5300 in connection with stainless steel frame in Wave or Slot design

Installation example

Concrete class D 400, RECYFIX HICAP F 1200, 2200, 3200, 5200 in connection with stainless steel frame in Wave or Slot design

Installation example

Concrete class D 400, RECYFIX HICAP F 1300, 2300, 3300, 5300 in connection with stainless steel frame in Wave or Slot design

Installation example

Pavement class D 400, RECYFIX HICAP F 1200, 2200, 3200, 5200

Installation example

Pavement class D 400, RECYFIX HICAP F 1300, 2300, 3300, 5300

Installation example

Pavement class D 400, RECYFIX HICAP F 1200, 2200, 3200, 5200 in connection with stainless steel frame in Wave or Slot design

Installation example

Pavement class D 400, RECYFIX HICAP F 1300, 2300, 3300, 5300 in connection with stainless steel frame in Wave or Slot design

Installation example

Asphalt class A 15 - F 900, RECYFIX HICAP F 1200, 2200, 3200, 5200

Installation example

Asphalt class A 15 - F 900, RECYFIX HICAP F 1300, 2300, 3300, 5300

Installation example

Concrete class B 125 - F 900, RECYFIX HICAP F 1200, 2200, 3200, 5200

Installation example

Concrete class B 125 - F 900, RECYFIX HICAP F 1300, 2300, 3300, 5300

Installation example

Concrete class A 15 - F 900, RECYFIX HICAP F 1200 - 8200 u. 1300 - 8300 with inlet box and L- or T-shaped channel connection

Installation example

Asphalt class D 400 - F 900, RECYFIX HICAP 5200 Inspection element

Installation example

Concrete class D 400 - F 900, RECYFIX HICAP 5200 Inspection element

Installation example

Asphalt class E 600 - F 900, RECYFIX HICAP 5300 Inspection element

Installation example

Concrete class E 600 - F 900, RECYFIX HICAP 5300 Inspection element
