Article No. 13425

RECYFIX HICAP F 5000 up to load class F 900

Type 5200, ductile iron slotted grating SW 14 mm, KTL-coated, 1.0 m

Project request Tender Texts

Fragen?

Unser erfahrenes Planungsteam hilft Ihnen gerne.

Fragen?

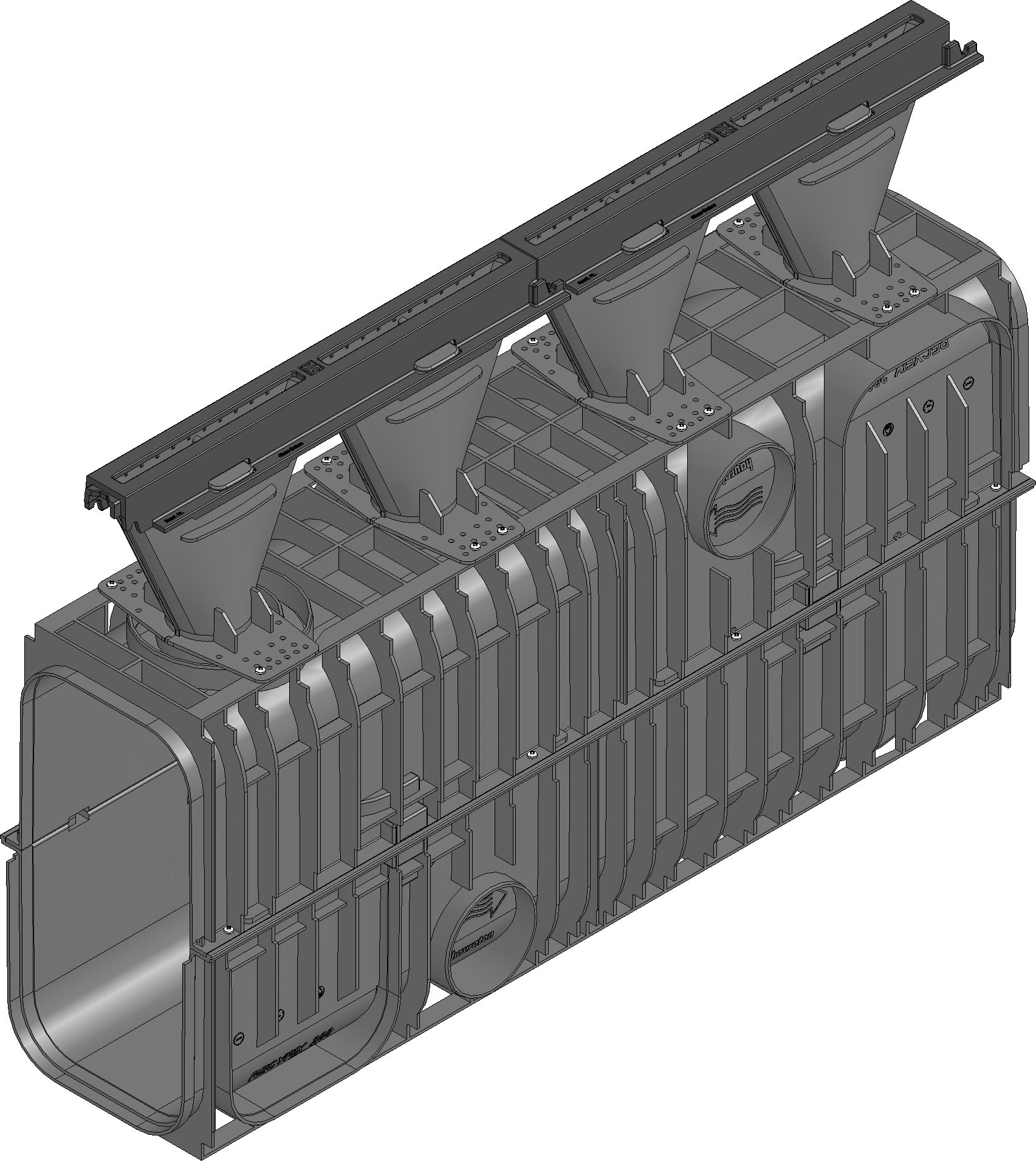

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Technical information and metrics
Article No.
13425
Length
1000 mm
Width
256 mm
Height
665 mm
Weight
13.50 kg
Material
ABS, Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, PE-HD, Polyamide, recycled, modified Polypropylene
Height of angle housing
228 mm
Intake cross-section
124.0 cm²/m
Nominal size
5000
Internal channel cross-section
790 cm²
Fall
-
Height funnel
200 mm
Inlet opening
14 x 220 mm
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX HICAP F 5200 with ductile iron slotted grating SW 14 mm, KTL-coated, cl. F 900, 1 m
Product description
RECYFIX HICAP F 5200 consists of a closed channel body type 020 made of recycled polypropylene, with inlet funnel, with integrated ductile iron slotted grating SW 14 mm, KTL-coated, load class A 15 - F 900 according to EN 1433, length 1000 mm, item no. 13425
Packaging unit
-

Tender Texts

Installation example

Pavement class A 15 - C 250, RECYFIX HICAP F 1200, 2200, 3200, 5200

Installation example

Pavement class A 15 - C 250, RECYFIX HICAP F 1200, 2200, 3200, 5200

Installation example

Pavement class A 15 - C 250, RECYFIX HICAP F 1300, 2300, 3300, 5300

Installation example

Pavement class A 15 - C 250, RECYFIX HICAP F 1300, 2300, 3300, 5300

Installation example

Asphalt class D 400, RECYFIX HICAP F 1200, 2200, 3200, 5200 with stainless steel angle housing in wave or slot design

Installation example

Asphalt class D 400, RECYFIX HICAP F 1300, 2300, 3300, 5300 in connection with stainless steel frame in Wave or Slot design

Installation example

Concrete class D 400, RECYFIX HICAP F 1200, 2200, 3200, 5200 in connection with stainless steel frame in Wave or Slot design

Installation example

Concrete class D 400, RECYFIX HICAP F 1300, 2300, 3300, 5300 in connection with stainless steel frame in Wave or Slot design

Installation example

Pavement class D 400, RECYFIX HICAP F 1200, 2200, 3200, 5200

Installation example

Pavement class D 400, RECYFIX HICAP F 1300, 2300, 3300, 5300

Installation example

Pavement class D 400, RECYFIX HICAP F 1200, 2200, 3200, 5200 in connection with stainless steel frame in Wave or Slot design

Installation example

Pavement class D 400, RECYFIX HICAP F 1300, 2300, 3300, 5300 in connection with stainless steel frame in Wave or Slot design

Installation example

Asphalt class A 15 - F 900, RECYFIX HICAP F 1200, 2200, 3200, 5200

Installation example

Asphalt class A 15 - F 900, RECYFIX HICAP F 1300, 2300, 3300, 5300

Installation example

Concrete class B 125 - F 900, RECYFIX HICAP F 1200, 2200, 3200, 5200

Installation example

Concrete class B 125 - F 900, RECYFIX HICAP F 1300, 2300, 3300, 5300

Installation example

Concrete class A 15 - F 900, RECYFIX HICAP F 1200 - 8200 u. 1300 - 8300 with inlet box and L- or T-shaped channel connection

Installation example

Asphalt class D 400 - F 900, RECYFIX HICAP 5200 Inspection element

Installation example

Concrete class D 400 - F 900, RECYFIX HICAP 5200 Inspection element

Installation example

Asphalt class E 600 - F 900, RECYFIX HICAP 5300 Inspection element

Installation example

Concrete class E 600 - F 900, RECYFIX HICAP 5300 Inspection element

Installation example
